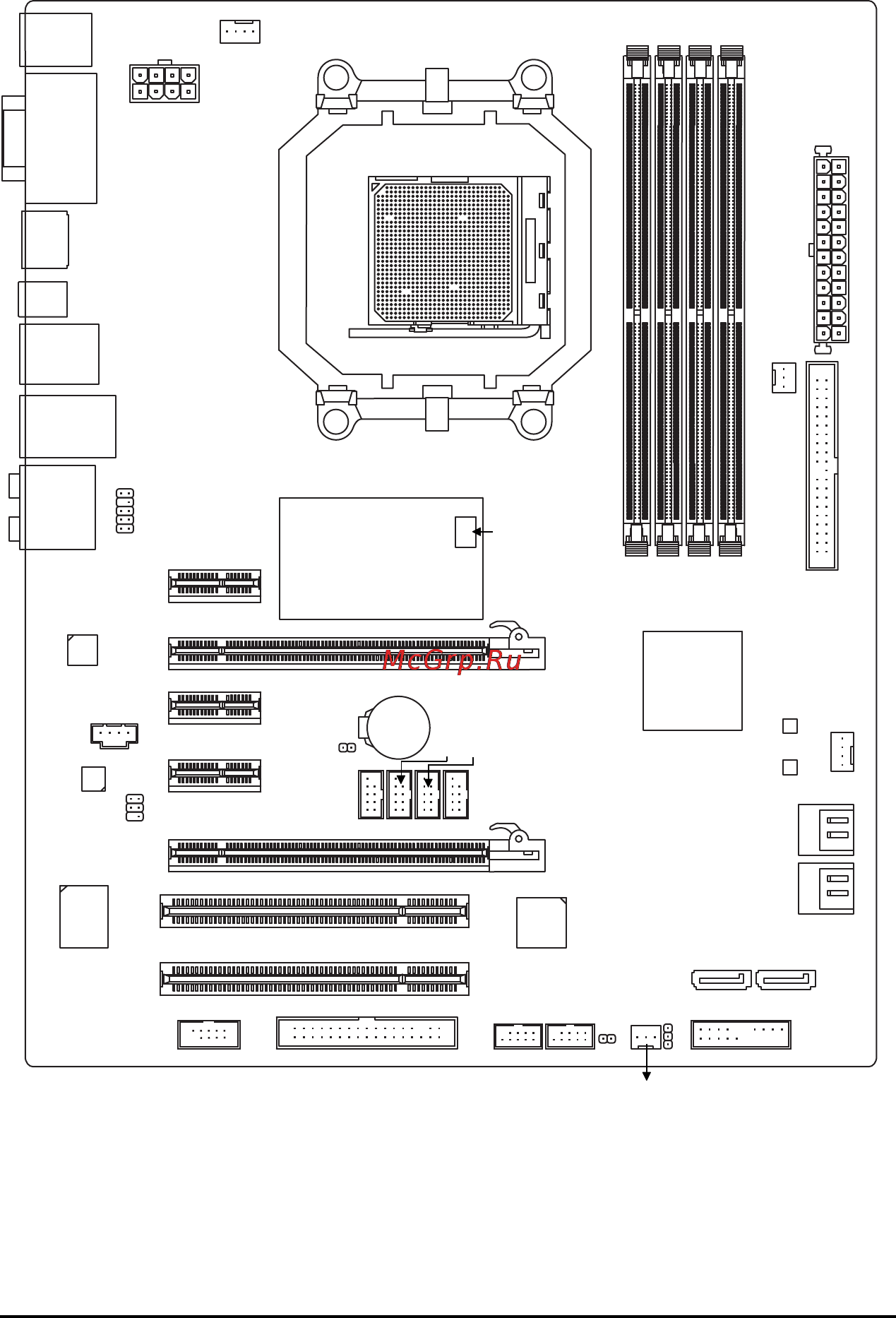

GA-MA790GP-UD3H Motherboard Layout
Socket AM2
GA-MA790GP-UD3H
DDR2_1
DDR2_2
DDR2_3
DDR2_4
FDD
F_PANEL
SYS_FAN2
CI
PWR_LED
M_BIOS
B_ BIOS
CD_IN
IT8718
CODEC
AMD 790GX
RTL8111C
SPDIF_IO
AMD SB750
PCIEX1_1
PCI1
PCI2
PCIEX1_2
PCIEX16_1
PCIEX1_3
F_USB1
F_USB2
PCIEX8_1
F_USB3
F_1394_1
COM
F_USB4
TSB43AB23
SATA2_3
SATA2_1
F_1394_2
SATA2_0
SATA2_2
ATX
IDE
SATA2_4
SATA2_5
PWR_FAN
KB_MS
USB
LAN
F_AUDIO
AUDIO
BATTERY
ATX_12V_2X4
USB
1394
HDMI
CLR_CMOS
CPU_FAN
OPTICAL
SYS_FAN1
DVI
VGA
SidePort
