C. Conguring S/PDIF Out:

The S/PDIF Out jacks can transmit audio signals to an external decoder for decoding to get the best audio

quality. To output S/PDIF digital audio signals to an external decoder, connect a S/PDIF coaxial cable or a

S/PDIF optical cable (either one) to the optical/coxial S/PDIF out connector on the motherboard back panel (or

on the optional S/PDIF In and Out cable).

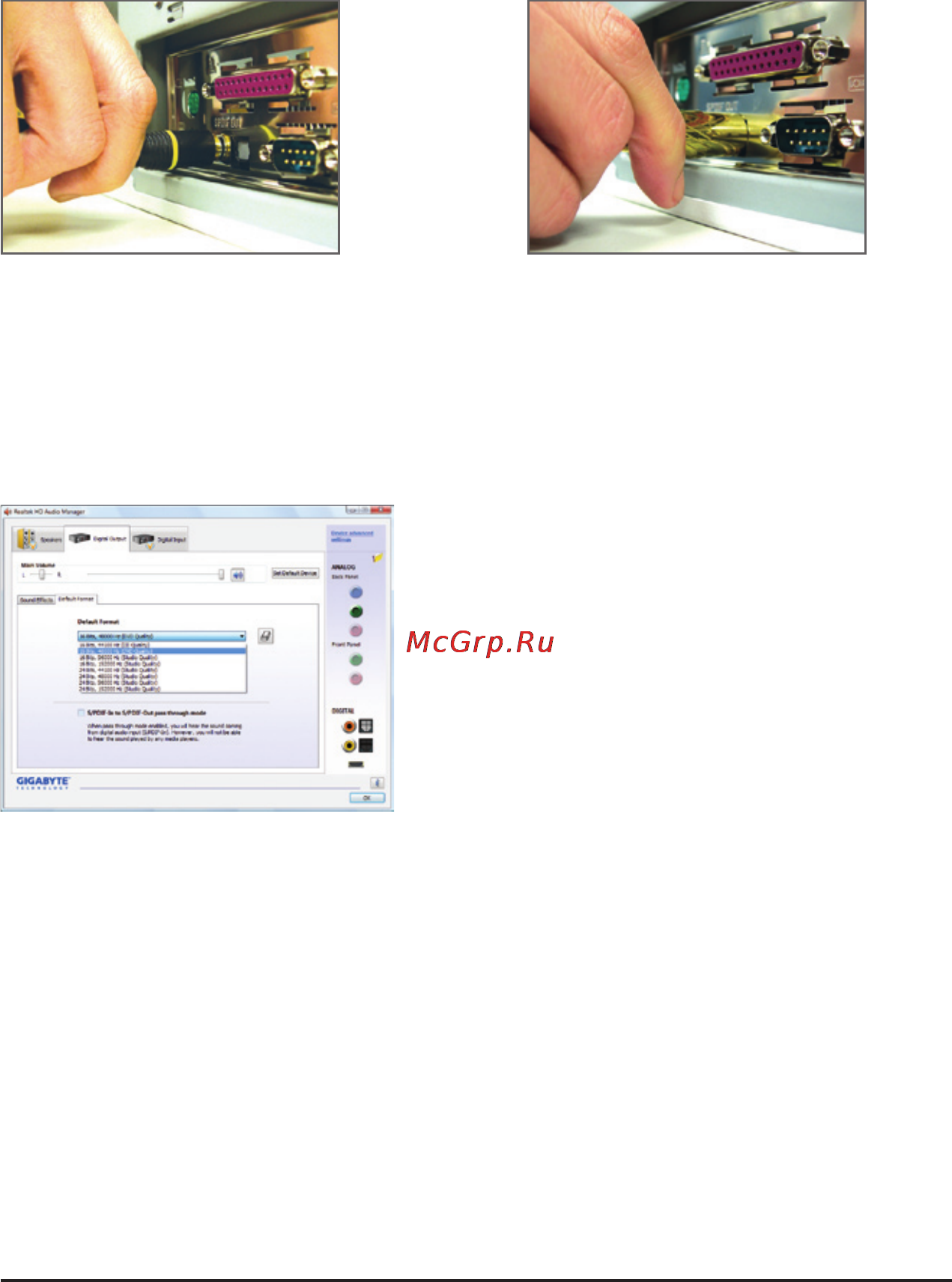

C-1. Conneting a S/PDIF Out Cable:

C-2. Conguring S/PDIF Out:

Step:
