Safety: there are no open flame, hot burners and
mechanical parts. Heating of the field can be turned on
only if the utensiles have ferromagnetic properties and
about 60 – 70% of its area should be under the
utensiles. Heating objects which a diameter less than
12 cm is blocked by a special sensor – if you have left on
the surface a cutlery, they do not become hot – it’s no
risk of burns.
Economy: energy consumption is several times less
than that of any other hobs. Touch sensors are made fit
the diameter of the zone of generation of vortex flow by
the size of the bottom of an utensil, if it lies within
acceptable limits.

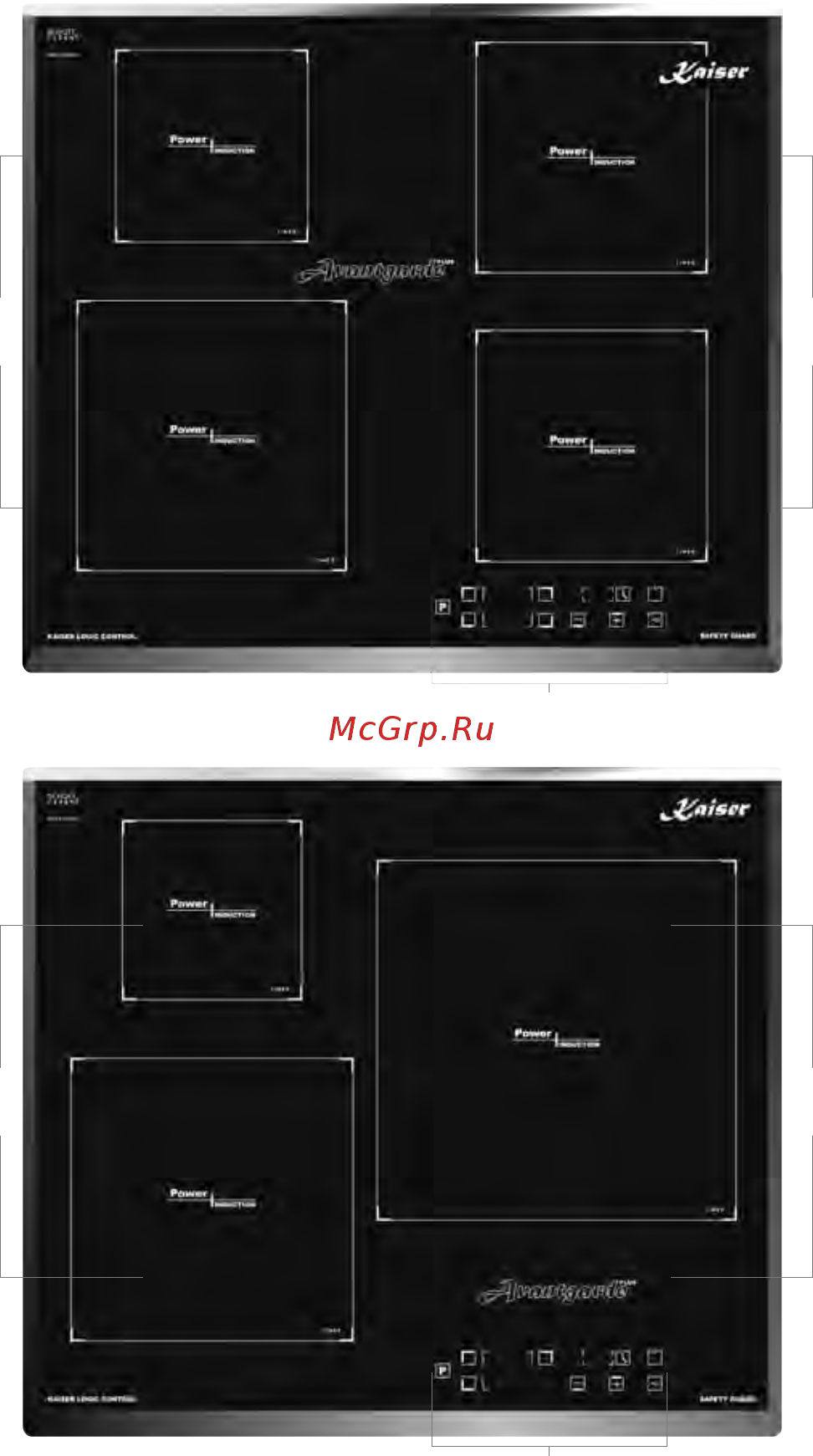

LOCATION DRAWING
KCT 6406 FI *
1. Cooking zone
2. Control panel
KCT 6436 FI *
1. Cooking zone
2. Control panel
