DI-304/DI-304M ISDN Remote Router
♦ Specify the callback number – This option is for extra security. Once
enabled, the router will only call back to the specified ISDN number
defined in the next parameter, Callback Number.
♦ Callback Number – If the previous option has been enabled, enter the
dial-in user's ISDN line number here.
♦ Check to enable Callback Budget Control – Enable the callback budget
control.
♦ Callback Budget (Unit: minutes) – By default, the callback function has
a 30-minute time restriction. The budget will be decreased automatically
per callback connection. Once the callback budget has been exhausted,
the callback mechanism will be disabled automatically.
LAN-to-LAN Access

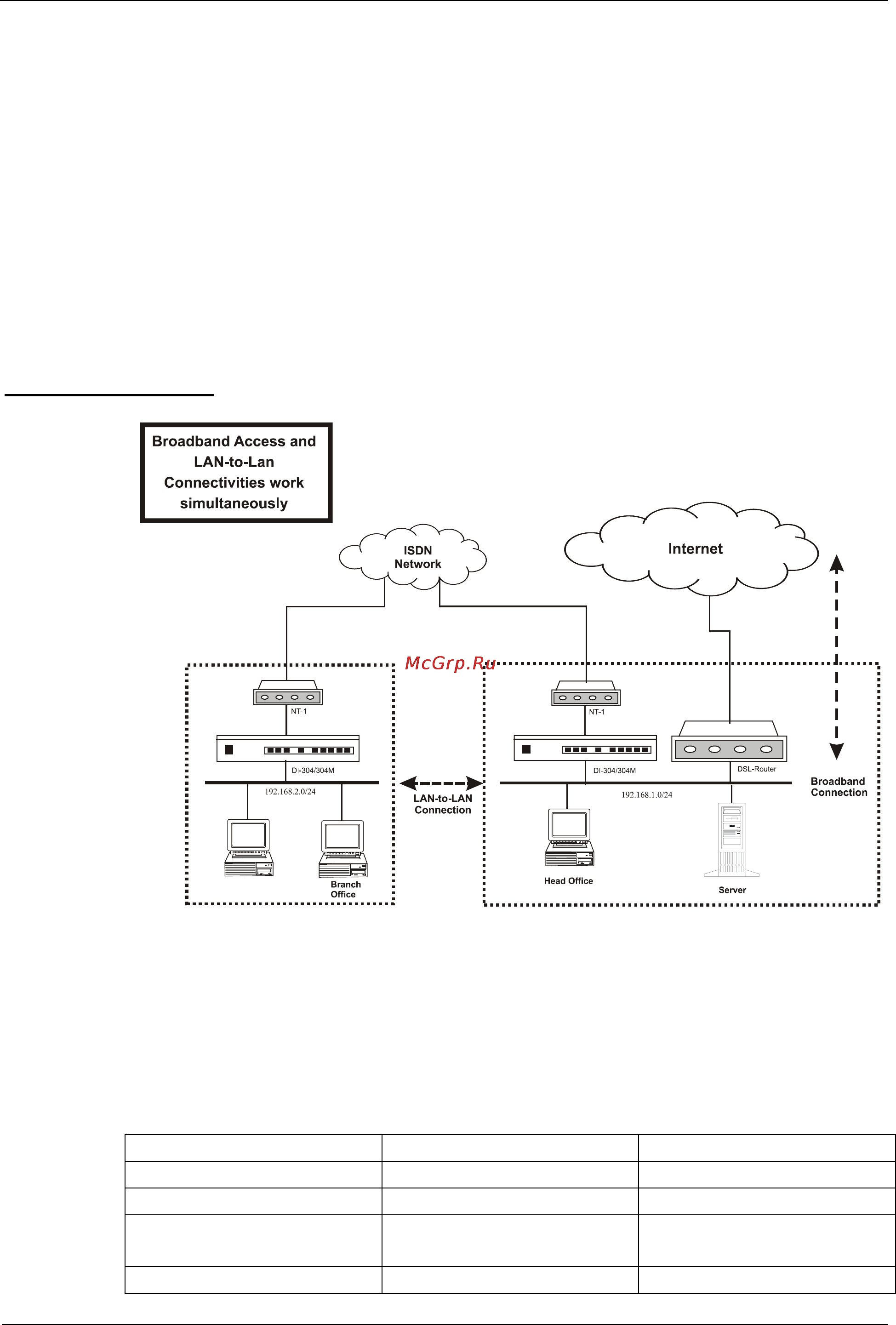

The following sections are based on the network layout above to describe how to set
up a LAN-to-LAN profile to connect two private networks. In the above network
layout, the private network of the head office is 192.168.1.0/24 and the off-site
branch office network is 192.168.2.0/24.
Before you begin to setup a LAN-to-LAN profile for each network, you should
gather the information shown in the following table.
Head Office Branch Office
Network ID 192.168.1.0/24 192.168.2.0/24
Router IP address/netmask 192.168.1/24 192.168.2.1/24
Assigned IP for dial-in
connection
192.168.1.200 192.168.2.200
Access Account UN: head; PW: head UN: branch; PW: branch
42
