DI-304/DI-304M ISDN Remote Router

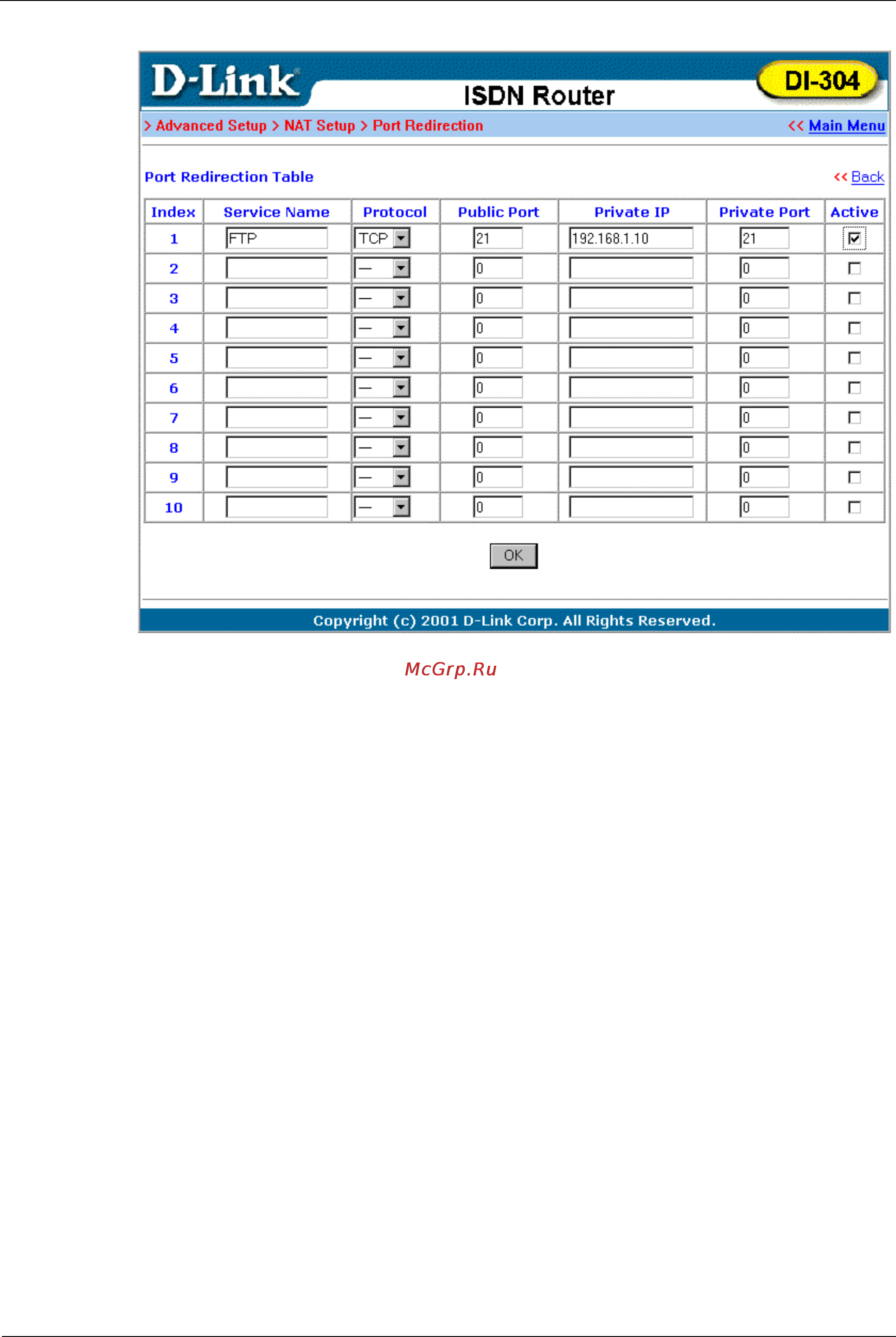

As shown above, the Port Redirection Table provides 10 port-mapping entries for

internal hosts.

♦ Service Name – Specify the name for the specific network service.

♦ Protocol – Specify the transport layer protocol that supports TCP and

UDP options.

♦ Public Port – Specify which port should be redirected to the internal host.

♦ Private IP – Specify the private IP address of the internal host offering

the service.

♦ Private Port – Specify the private port number of the service offered by

the internal host.

♦ Active – Check here to activate the port-mapping entry.

DMZ Host Setup

Click DMZ Host Setup to open the setup page. The DMZ Host settings allow a

defined internal user to be exposed to the Internet to use some special-purpose

applications such as Netmeeting, Internet games, etc.

♦ DMZ Enable – Check to enable the DMZ Host function.

♦ DMZ Host IP – Enter the IP address of DMZ host.
