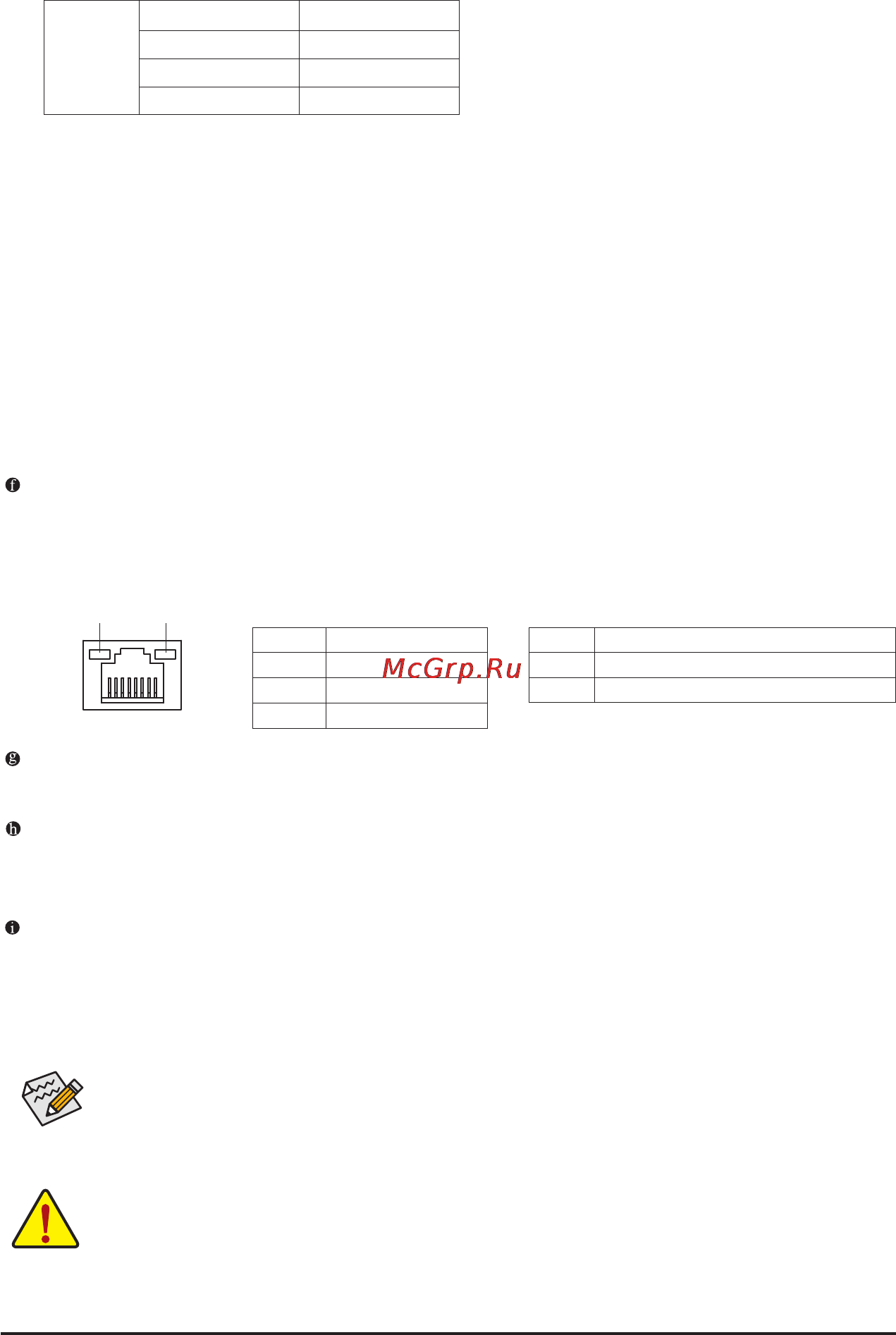

Hardware Installation - 20 -
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
Activity LED
Connection/
Speed LED
LAN Port
• When removing thecableconnected to a back panel connector, rstremove the cable from
your device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following de-
scribes the states of the LAN port LEDs.
Tocongure7.1-channelaudio, youhaveto use an HD front panel audiomodule andenable
themulti-channel audio feature through the audio driver. Refer to the instructions on setting up a
2/4/5.1/7.1-channelaudiocongurationinChapter5,"Conguring2/4/5.1/7.1-ChannelAudio."
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out Jack (Front Speaker Out, Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be
usedtoconnectfrontspeakersina4/5.1-channelaudioconguration.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.
A. Dual Display Congurations:
This motherboard provides three ports for video output: DVI-D, HDMI and D-Sub. The table below shows
thesupporteddualdisplaycongurations.
B. Playback of HD DVD and Blu-ray Discs:
In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the recom
mended system requirements (or better) below.
• CPU: AMD Phenom
™
X3 processor or above
• Memory: Two 1 GB DDR2 800 MHz memory modules with dual channel mode enabled
• BIOS Setup: At least 256 MB of UMA Frame Buffer Size (refer to Chapter 2, "BIOS Setup," "Advanced
BIOS Features," for more information)
• Playback software: CyberLink PowerDVD 8.0 or later
• HDCP compliant monitor(s)
Combination Supported or Not
DVI-D + D-Sub Yes
DVI-D + HDMI No
HDMI + D-Sub Yes
Dual
Display
