-11-

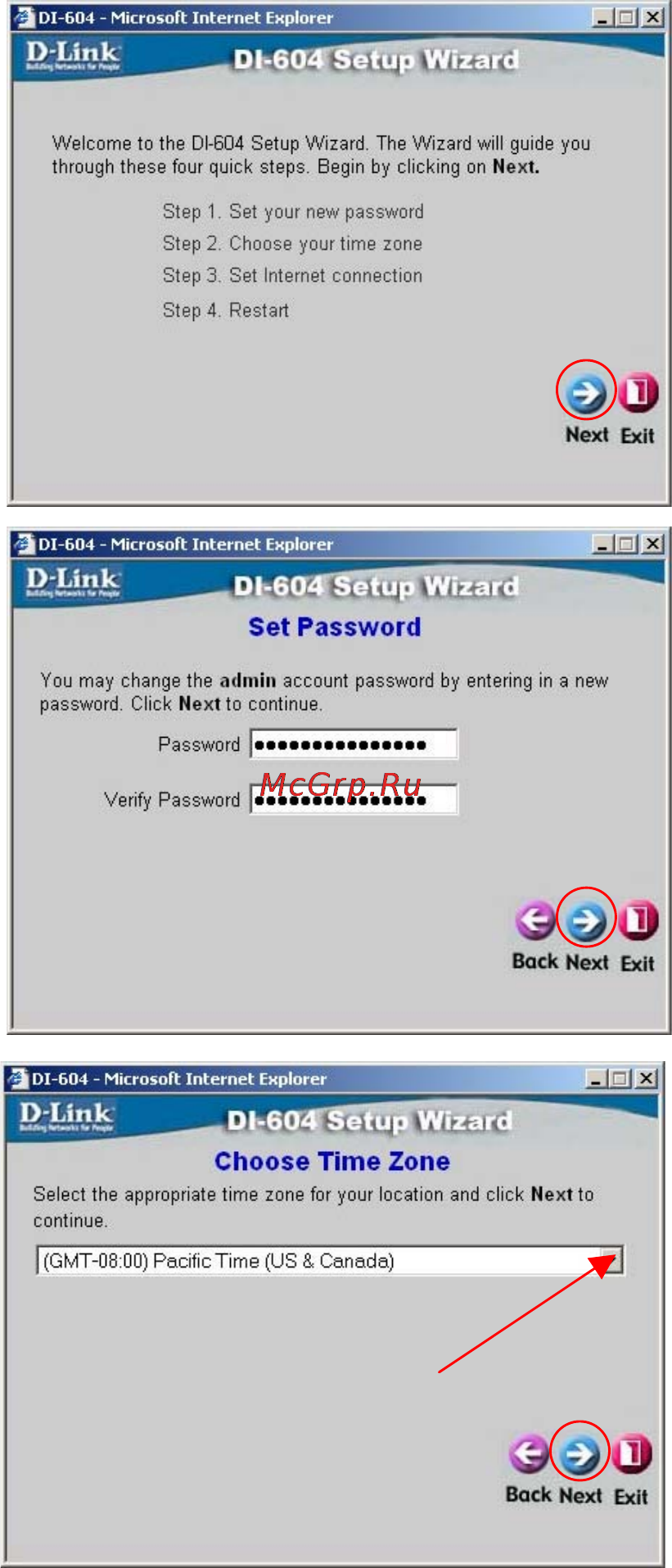

Using the Configuration Wizard
The Setup Wizard screen will
appear. Follow the Wizard
step by step to quickly
configure the DI-604.
Click
Next
It is recommended that you
change the admin password
for security purposes. Enter in
your new password. Enter it in
a second time for verification.
Click
Next
Click on the drop down box
arrow and select the
appropriate time zone for
your location.
Click
Next
