-12-

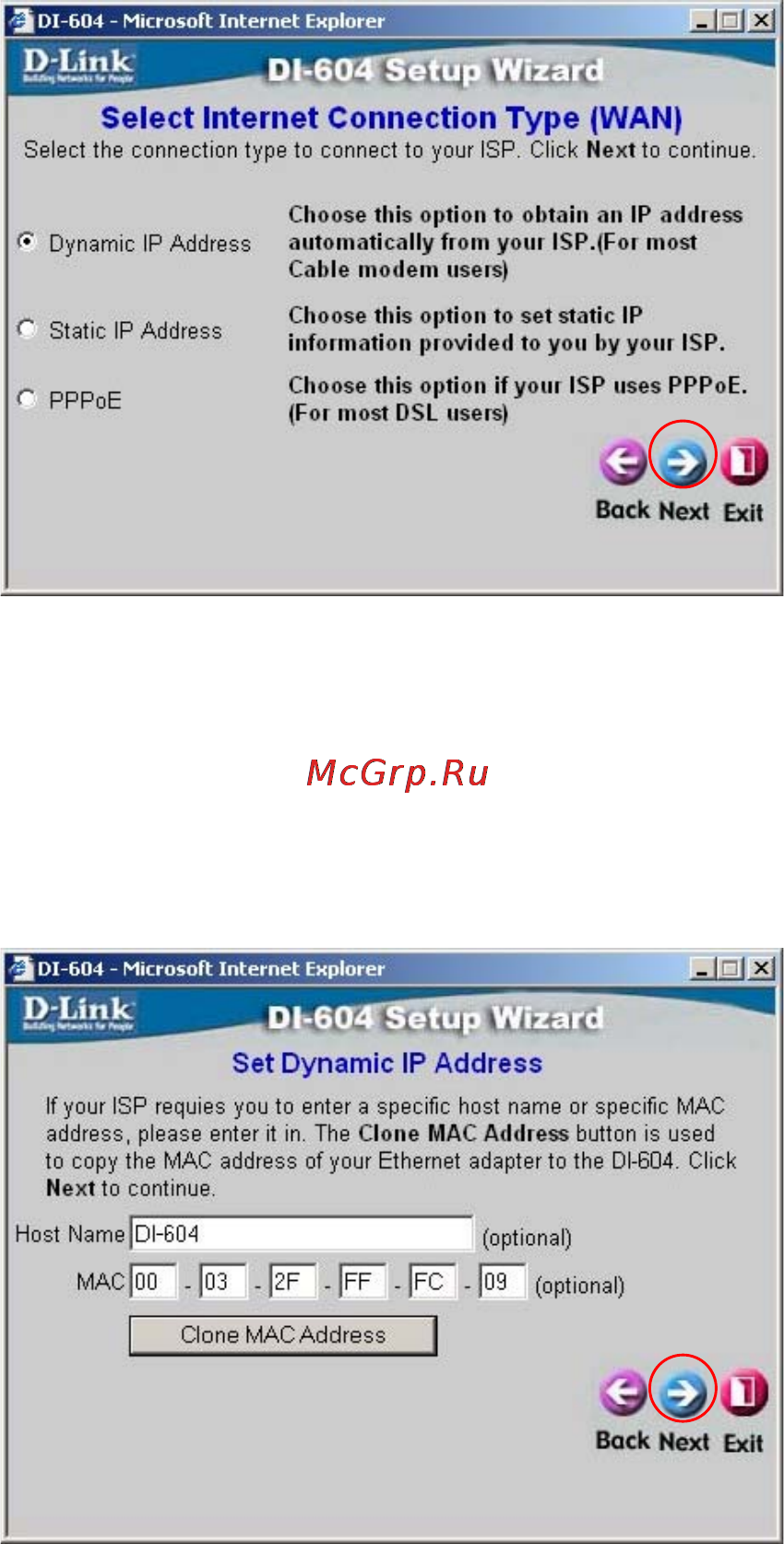

There will be three options to select from. Please select the appropriate
option that is used by your ISP.
Dynamic IP Address:
(ex:
Cable users) Select this
option to obtain an IP address
automatically from your ISP.
Please see Dynamic IP
Address section.
Static IP Address:
Select
this option to manually input
the IP address that your ISP
assigned to you. Please see
Static IP Address section.
PPP over Ethernet (PPPoE)
:
(ex: DSL users) Select this option if your ISP requires the use of PPPoE to
connect to their services.
Please see PPPoE section.
Once you have made the appropriate selection, click
Next
.
Dynamic IP Address
If you selected
Dynamic IP Address
, you will see the following page.
If your ISP requires you to
enter a specific host name or
specific MAC address, please
enter it in. The CLONE MAC
Address button is used to
copy the MAC address of
your Ethernet adapter to the
DI-604 WAN interface.
Click
Next
