-69-
Networking Basics
Sharing an LPR printer
•

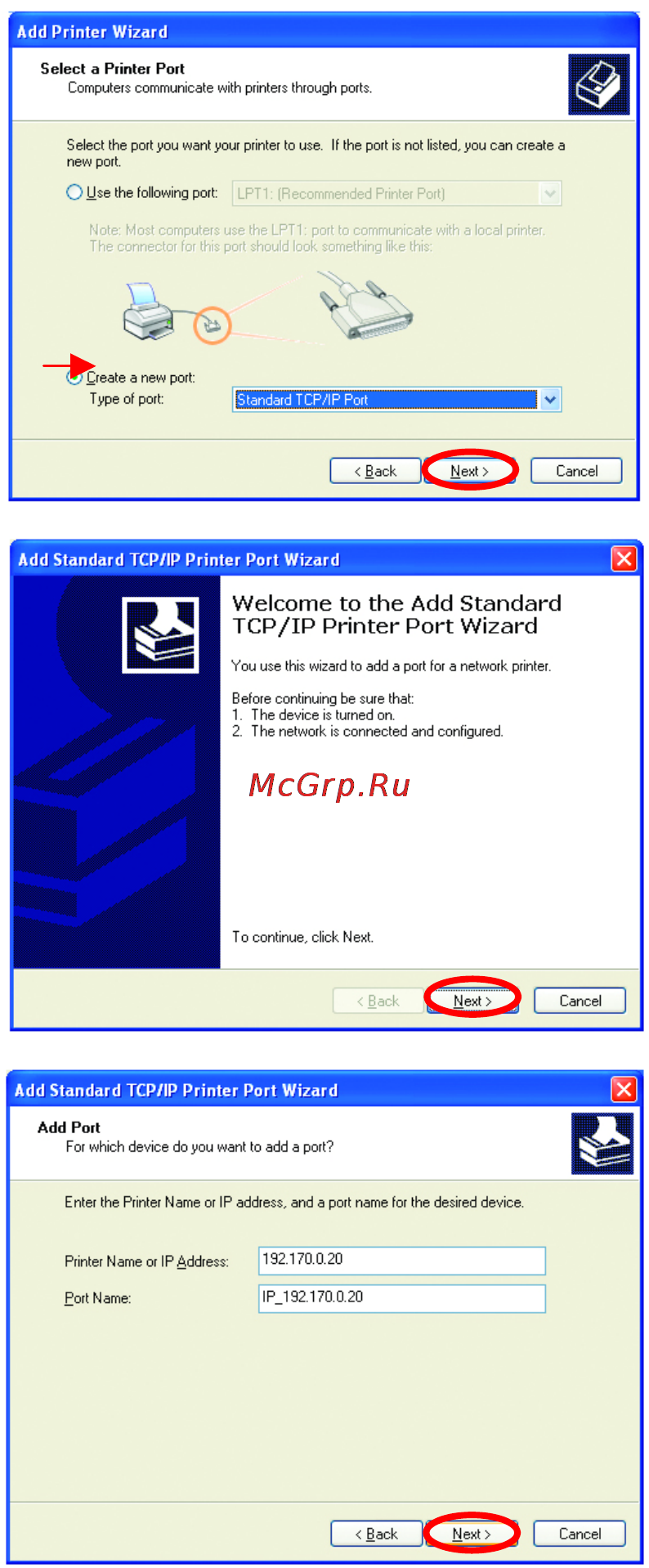

Select
Create a new port
•
From the pull-down menu,
select
Standard TCP/IP
Port
, as shown.
•
Click
Next
•
Please read the
instructions on this screen.
•
Click
Next
•
Enter the
Printer IP
Address
and the
Port
Name
, as shown.
•
Click
Next
