-31-

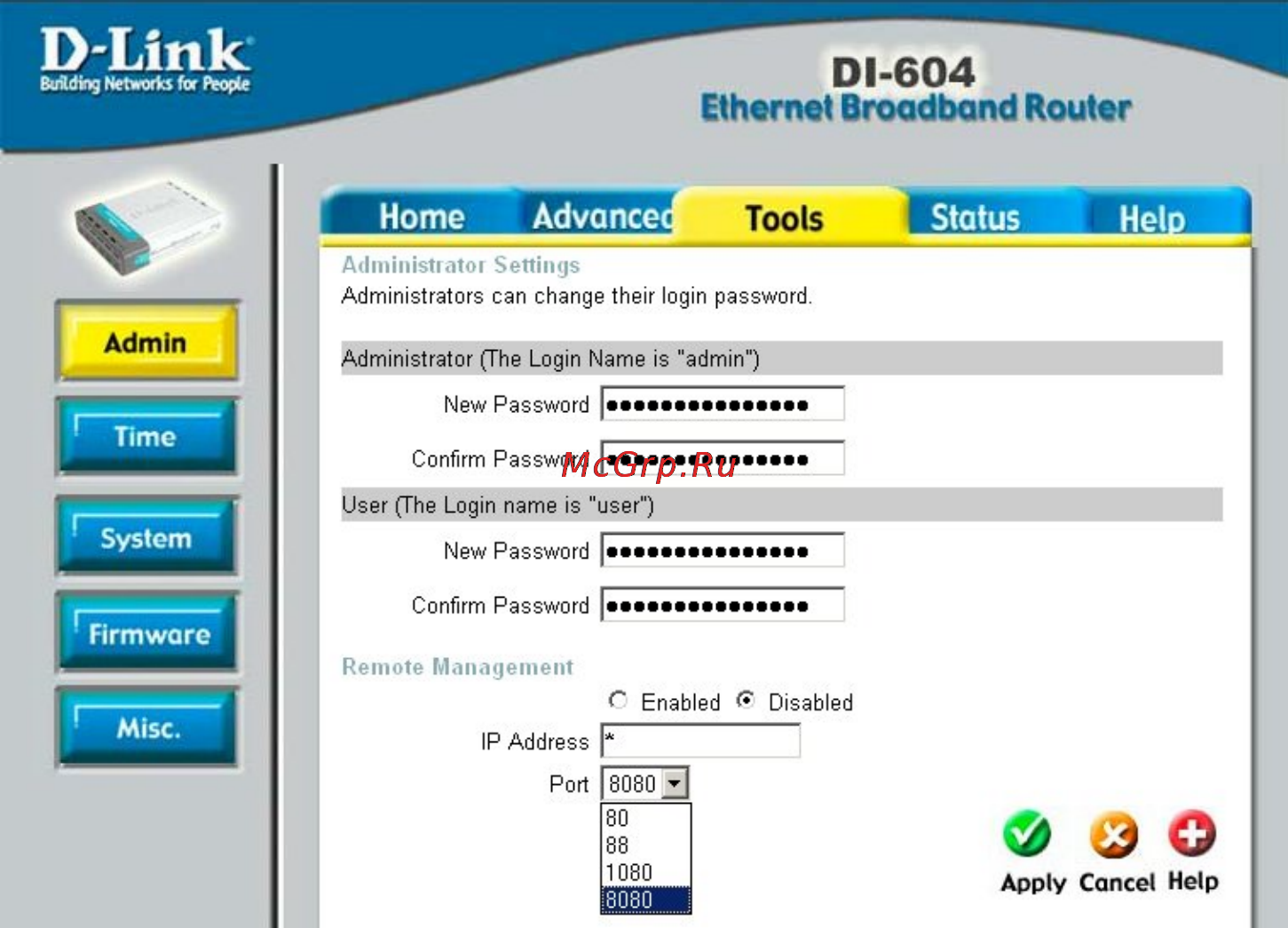

TOOLS > ADMIN
Admin
At this page, the DI-604 administrator can change the system password.
There are two accounts that can access the Broadband Router’s
Web-Management interface. They are
admin
and
user
.
Admin
has
read/write access while
user
has read-only access.
User
can only view
the settings but cannot make any changes.
Remote Management
Remote Management allows the DI-604 to be configured from the Internet
by a web browser. A username and password is still required to access
the Web-Management interface. In general, only a member of your
network can browse the built-in web pages to perform “Administrator”
tasks. This feature enables you to perform “Administrator” tasks from the
remote (Internet) host.
IP Address:
Internet IP address of the computer that has access to the
Broadband Router. If the IP address is set to * (star). This allows any
Internet IP address to access the Broadband Router.
It is not
Содержание
- Di 604 1
- Express ethernetwork 1
- Table of contents 2
- Features and benefits 3
- Introduction 3
- Network management features including 3
- Content filtering 4
- Filter scheduling 4
- Introduction to broadband router technology 4
- Network address translation 4
- Technology introduction 4
- Introduction to firewalls 5
- Introduction to local area networking 5
- Di 604 ethernet broadband router power adapter ethernet cable quick installation guide 6
- Manual on cd 6
- Package contents 6
- Hardware description 7
- Power wan lan 7
- Hardware description 8
- Wan lan 8
- Getting started 9
- Installation location 9
- Network settings 9
- Configuring the di 604 10
- Start up and log in 10
- Using the configuration wizard 11
- Dynamic ip address 12
- At this point the setup wizard has completed click restart to save the settings and reboot the di 604 14
- The di 604 will save the the di 604 will save the changes and reboot click close to close out the setup wizard screen 14
- Your setup of the di 604 is now complete you should be able to access your setup of the di 604 is now complete you should be able to access the internet 14
- Setup wizard 15
- Using the configuration menu 15
- Dynamic ip address 16
- Static ip address 17
- Virtual server 21
- Name web server 22
- Public port 80 22
- Applications 23
- Name ftp server 23
- Public port 2100 23
- Filters 25
- Ip filters 25
- Domain blocking 28
- Firewall 29
- Note the di 604 mac address filtering rules have precedence over the firewall rules 29
- Device information 36
- Vpn pass through 36
- Log settings not only does the broadband router display the logs of activities and events it can be setup to send these logs to another location the logs can be sent via email to an email account 38
- The broadband router keeps a running log of events and activities occurring on the router if the device is rebooted the logs are automatically cleared you may save the log files under log setting 38
- Troubleshooting 40
- Confirm your pc s ip configuration 41
- Winipcfg for windows 95 98 41
- Assigning a static ip address 43
- Networking basics 46
- Using the network setup wizard in windows xp 46
- Networking basics 47
- Networking basics 48
- Networking basics 49
- Networking basics 50
- Networking basics 51
- Networking basics 52
- Networking basics naming your computer 53
- Checking the ip address in windows xp 2000 checking the ip address in windows xp 2000 54
- Naming your computer 54
- Networking basics 54
- Checking the ip address in windows xp 2000 55
- Networking basics checking the ip address in windows xp 2000 55
- Assigning a static ip address 56
- Networking basics checking the ip address in windows xp 2000 56
- Networking basics assigning a static ip address 57
- Networking basics assigning a static ip address 58
- Adding a local printer a printer connected directly to a computer 59
- Networking basics adding and sharing printers in windows xp 59
- Networking basics adding a local printer 60
- Networking basics adding a local printer 61
- Networking basics adding a local printer 62
- Networking basics adding a local printer 63
- Networking basics adding a local printer 64
- Sharing a network printer 64
- Networking basics sharing a network printer 65
- Networking basics sharing a network printer 66
- Networking basics sharing a network printer 67
- Networking basics sharing an lpr printer 68
- Networking basics sharing an lpr printer 69
- Networking basics sharing an lpr printer 70
- Networking basics sharing an lpr printer 71
- Networking basics sharing an lpr printer 72
- Device management 73
- Media access control 73
- Other tasks 73
- Technical specifications 73
- Vpn pass through multi sessions 73
- Contacting technical support 75
- Warranty and registration 76
- Disclaimer of other warranties 78
- Limitation of liability 78
- Fcc statement 79
