display the WAN, LAN, and MAC address information.
If your WAN connection is set up for Dynamic IP address, there will be a
Release
button and
Renew
button. Use Release to disconnect from your
ISP and use Renew to connect to your ISP.

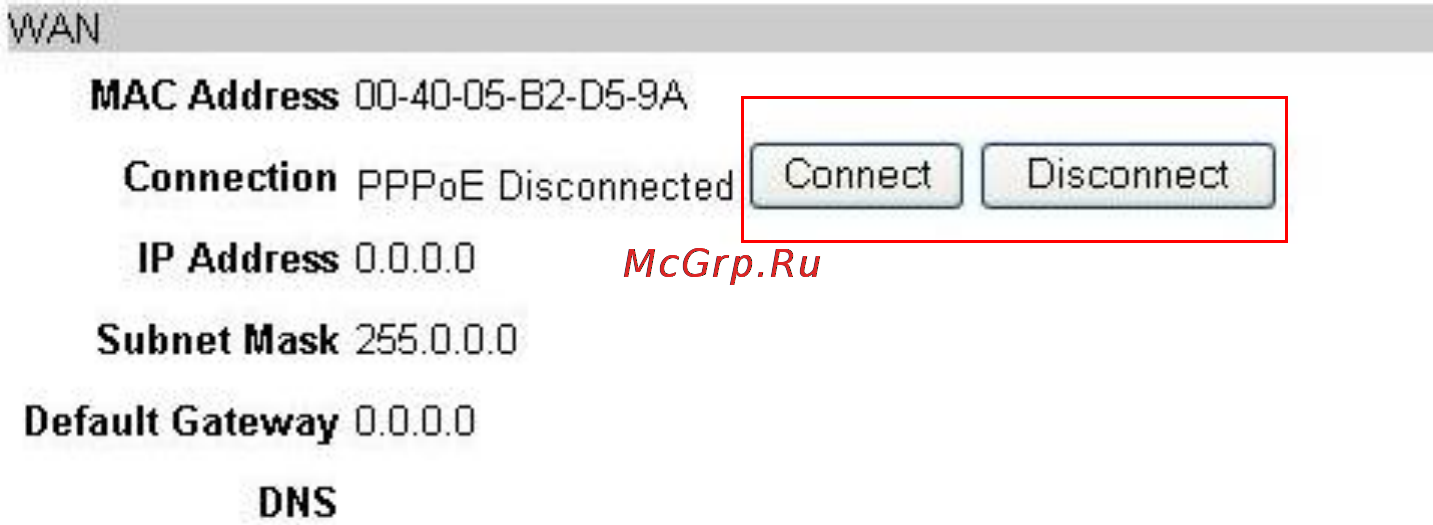

If your WAN connection is set up for PPPoE, there will be a
Connect
button and
Disconnect
button. Use Disconnect to drop the PPPoE
connection and use Connect to establish the PPPoE connection.
This page allows you to observe the DI-604’s working status:
WAN
• IP Address:
WAN/Public IP Address
• Subnet Mask:
WAN/Public Subnet Mask
• Gateway:
WAN/Public Gateway IP Address
• Domain Name Server:
WAN/Public DNS IP Address
• Wan Status:
WAN Connection Status
LAN
• IP Address:
LAN/Private IP Address of the DI-604
• Subnet Mask:
LAN/Private Subnet Mask of the DI-604
Firmware version:
Displays the current firmware version
WAN MAC Address:
Displays the WAN port MAC/hardware address
LAN MAC Address:
Displays the LAN port MAC/hardware address
