Using the Setup Wizard

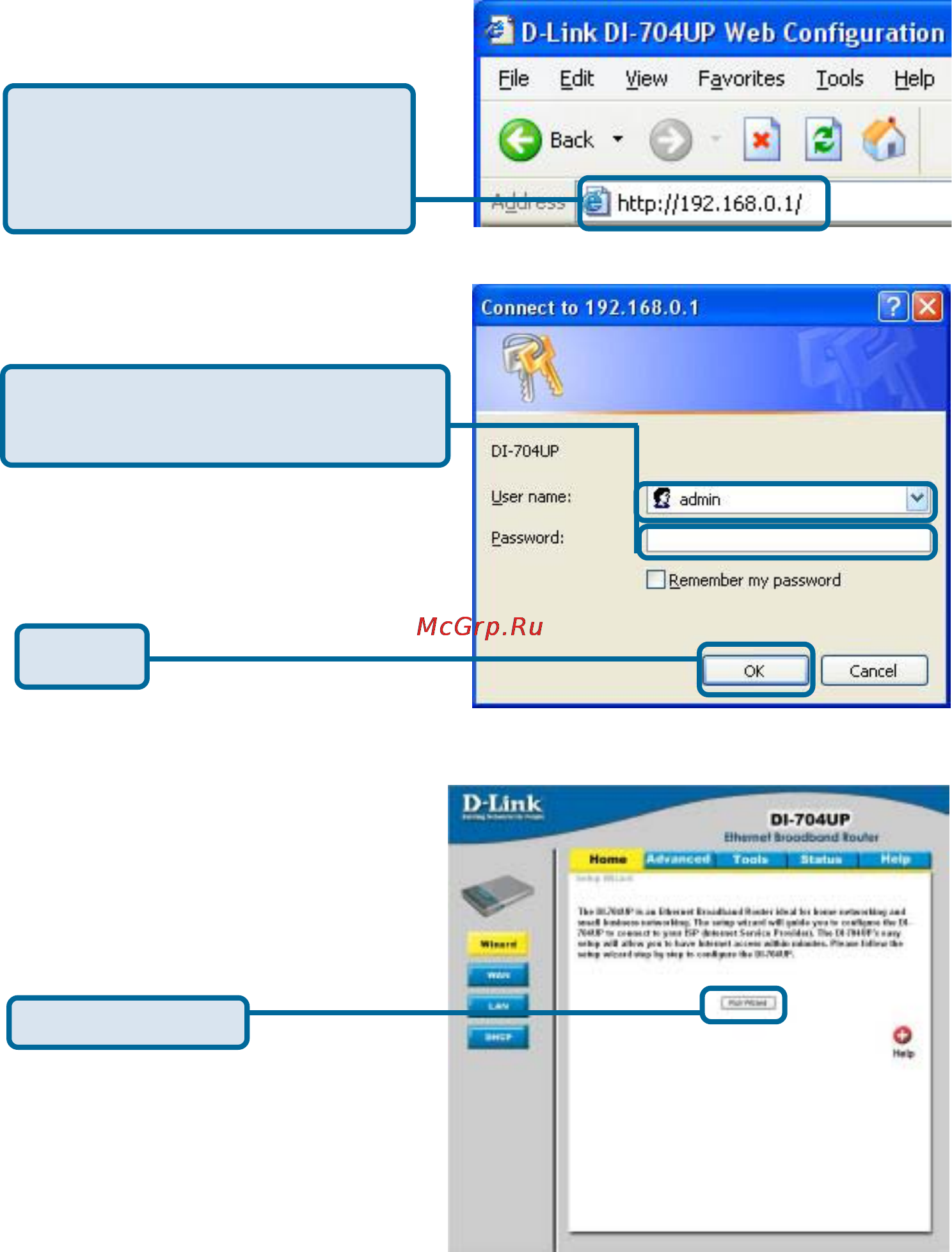

The logon pop-up screen will appear.
Once you have logged in, the Home
screen will appear.
Click Run Wizard
Open your Web browser and
type “http://192.168.0.1” into the
URL address box. Then press the
Enter or Return key.
Type “admin” for the username and
leave the password field blank.
Click OK
