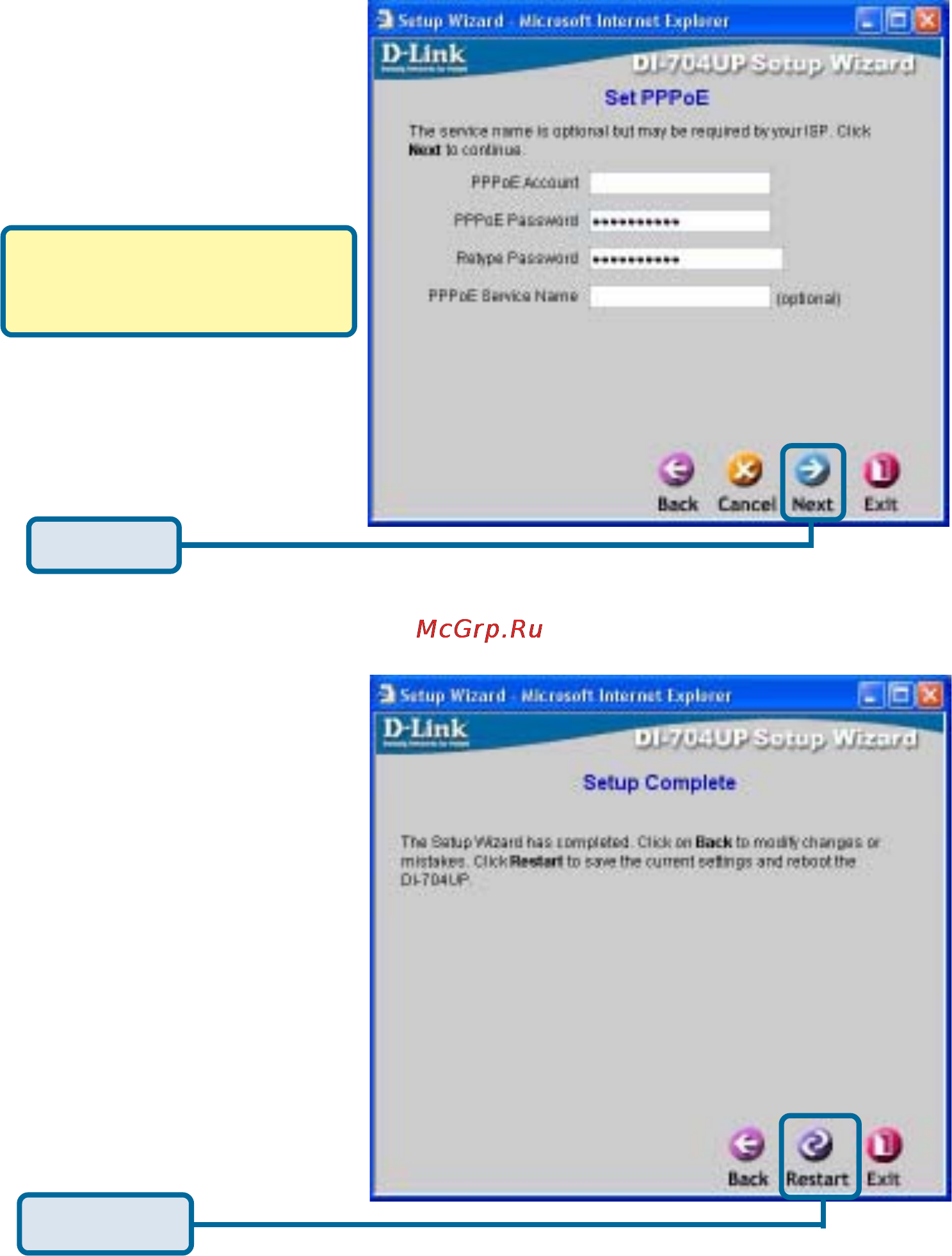

If your ISP uses PPPoE
(Point-to-Point Protocol over
Ethernet), and this option is
selected, then this screen will
appear: (Used mainly for DSL
Internet service.)
Enter in the username and
password provided to you by
your ISP.
Using the Setup Wizard (continued)
Please be sure to remove any
existing PPPoE client software
installed on your computers.
Click Next
