Using the Configuration Menu (continued)
Tools > Admin
Administrator Settings

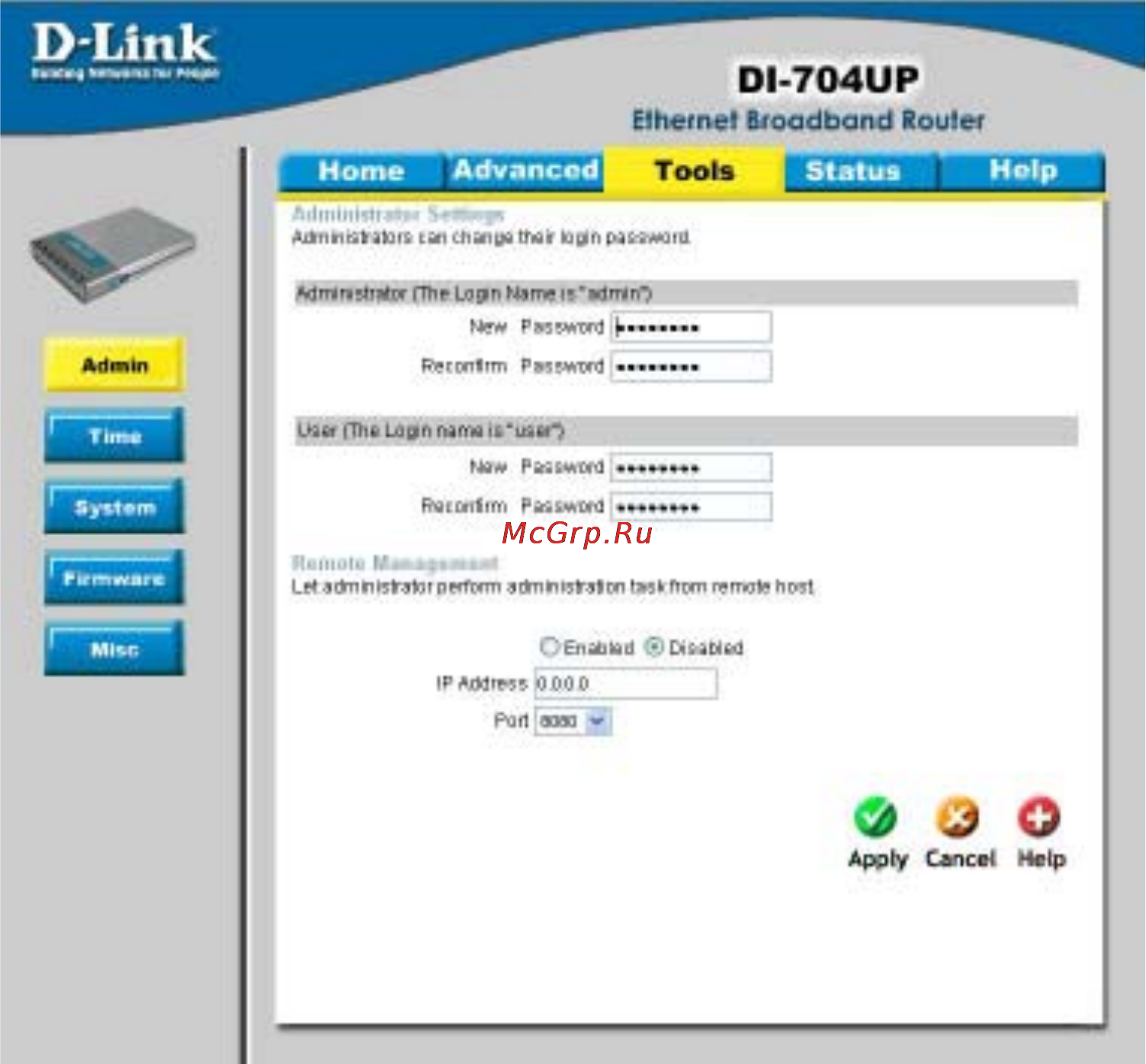

At this page, the DI-704UP administrator can change the system password. There are
two accounts that can access the Broadband Router’s Web-Management interface.
They are admin and user. Admin has read/write access while user has read-only access.
User can only view the settings but cannot make any changes.
