Gigabyte GA-M68M-S2 (rev.1) [55/96] 4 contact

Drivers Installation- 55 -

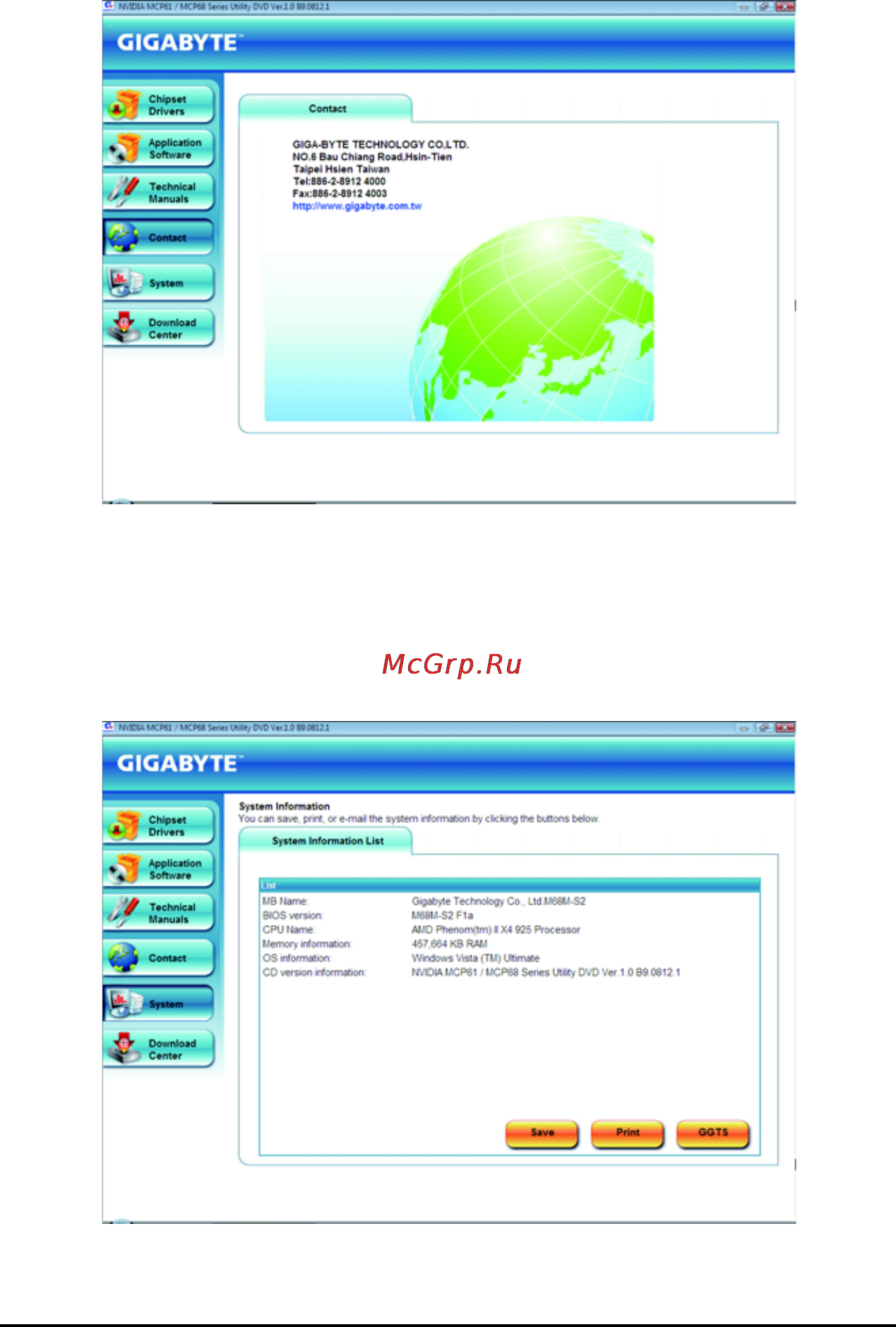

3-4 Contact

For the detailed contact information of the GIGABYTE Taiwan headquarter or worldwide branch offices,

click the URL on this page to link to the GIGABYTE Website.

3-5 System

This page provides the basic system information.
