Appendix- 73 -

Step 4:

After the driver is loaded, the screen will show the RAID hard drive. Select the RAID hard drive onto

which you want to install the operating system and then press Next to continue the OS installation

(Figure 6).

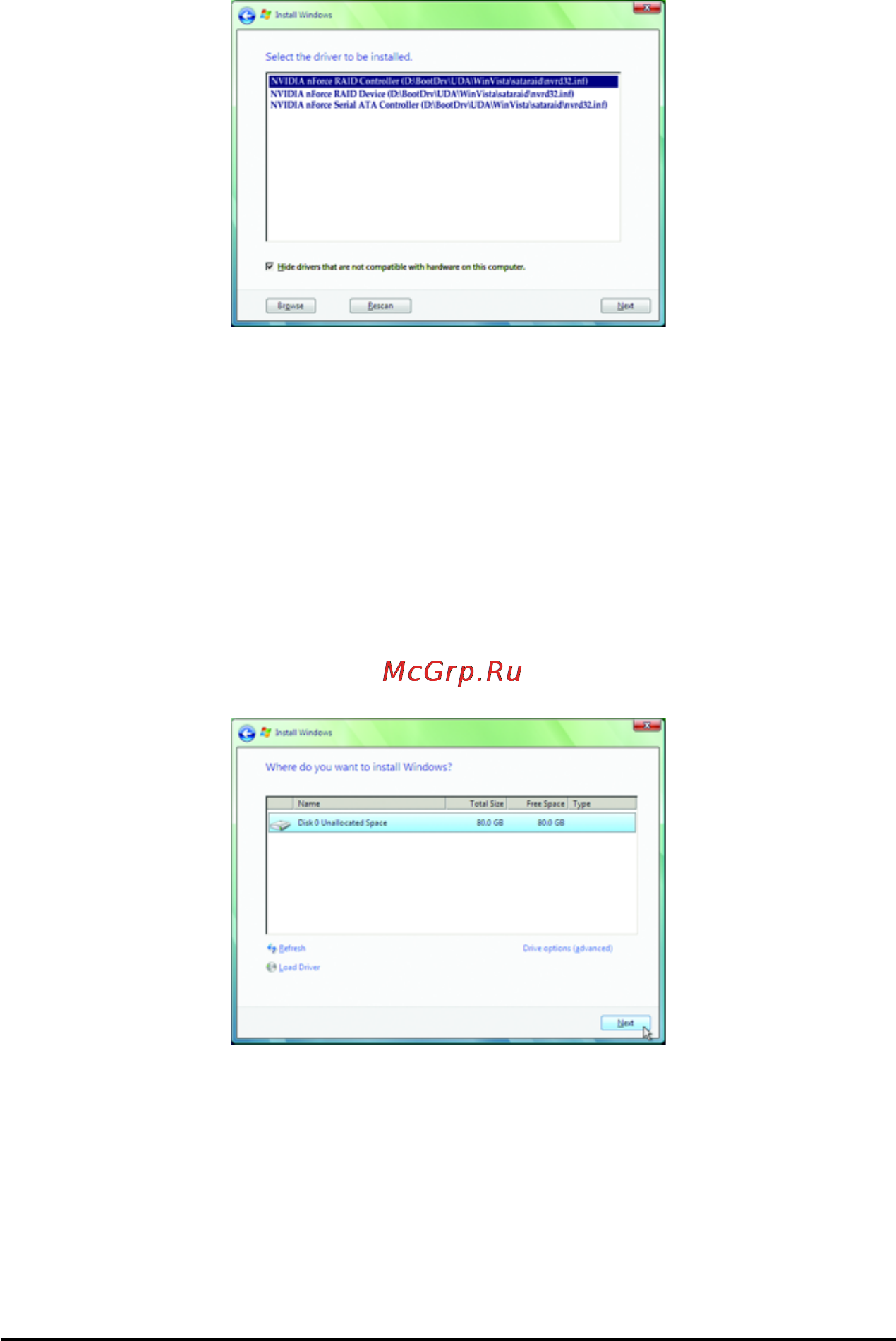

Figure 5

Figure 6

Step 3:

When a screen as shown in Figure 5 appears, select NVIDIA nForce RAID Controller and press

Next.
