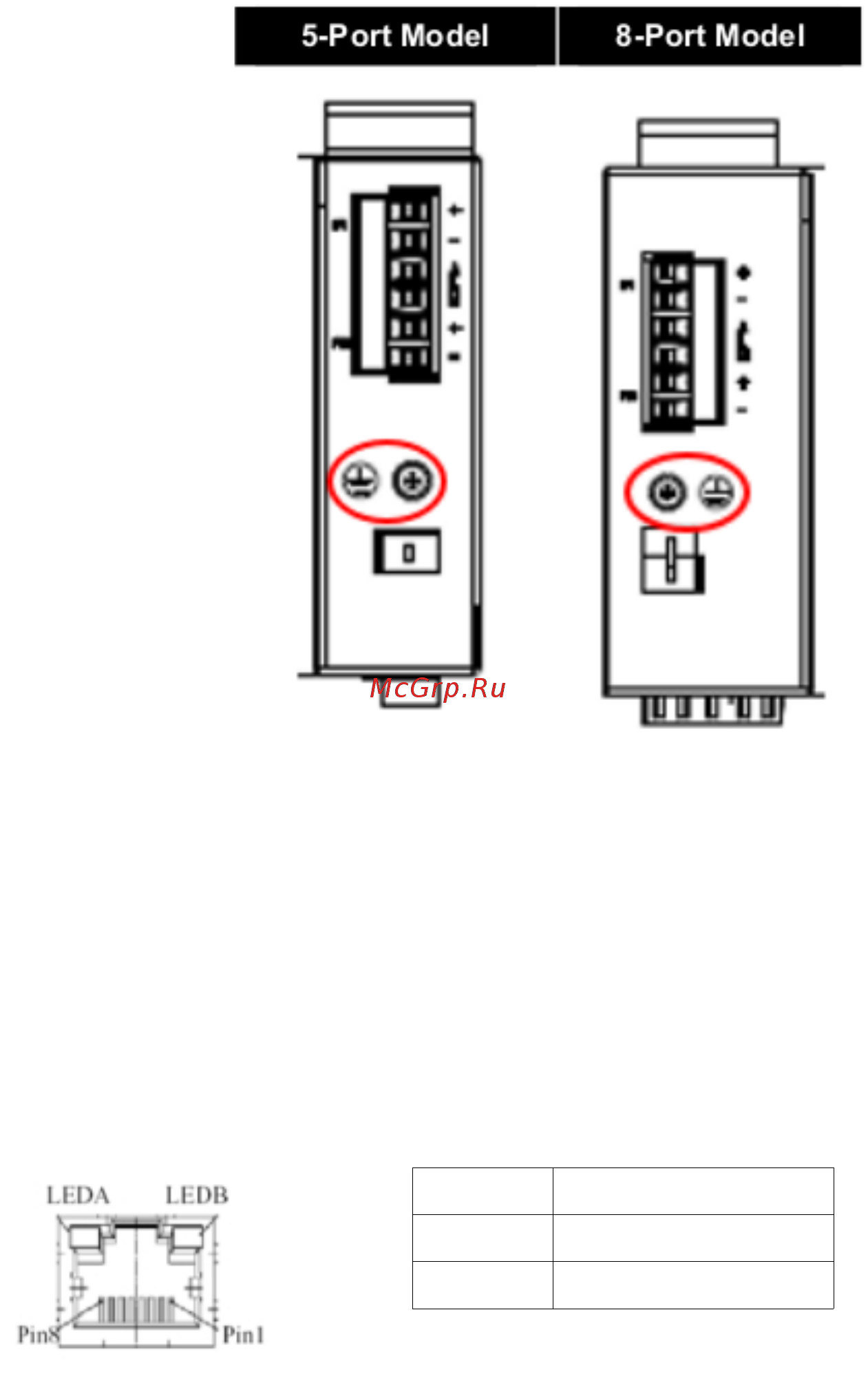

Connecting to Ground

The switch must be properly grounded for optimum system performance.

Connecting to Ethernet Interfaces (RJ-45)

Connecting the Ethernet interface via RJ-45:

• To connect to a PC, use a straight-through or a cross-over Ethernet cable,

• To connect the switch to an Ethernet device, use UTP (Unshielded Twisted Pair) or STP (Shielded

Twisted Pair) Ethernet cables .

The pin assignment of the RJ-45 connector is shown in the following figure and table.

Pin Assignment

1,2 T/Rx+,T/Rx-

3,6 R/Tx+,R/Tx-

Connecting to Fiber Interfaces (SFP)

Please prepare the LC connectors or SC connectors (with the use of an optional SC-to-LC adapter). These

adapters are available with multimode, single mode, long-haul (for connections up to 120+ km) or in the form

of special-application transceivers.

For each fiber port there is a transmit (TX) and receive (RX) signal. Please make sure that the transmit (TX)

port of the switch connects to the receive (RX) port of the other device, and the receive (RX) port of the

switch connects to the transmit (TX) port of the other device when making your fiber optic connections.
