D-Link DGS-1100-10/ME [12/90] Configuration

D-Link DGS-1100-10/ME User Manual

4 Configuration

The features and functions of the D-Link Metro Ethernet Managed Switch can be configured for optimum use

through the Web-based user interface.

Web-based Management

After you log in, you will see the screen below:

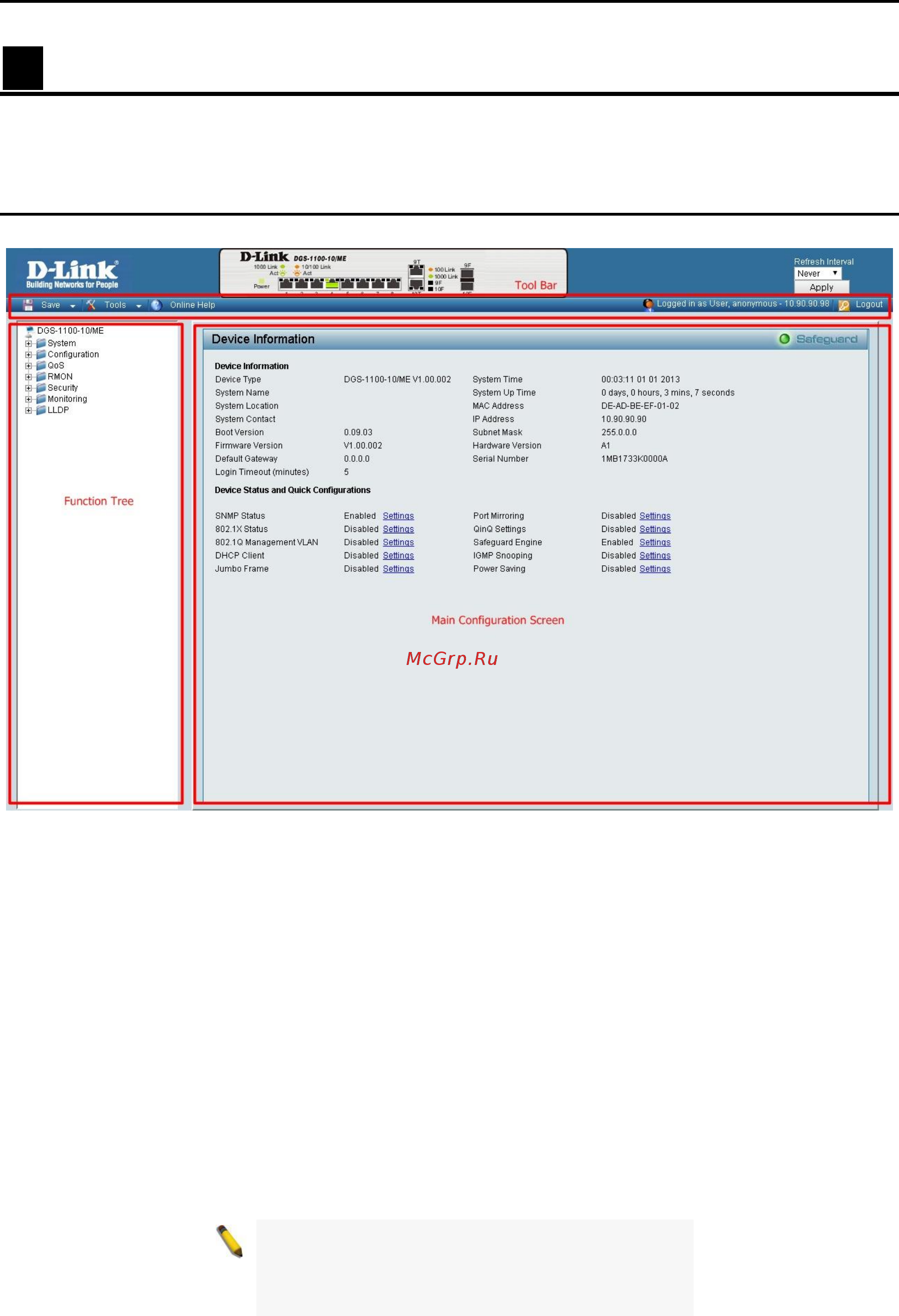

Figure 4.1 – Web-based Management

The above image is the Web-based Management home page. The three main areas are the Tool Bar on top,

the Function Tree, and the Main Configuration Panel.

The Tool Bar provides a quick and convenient way for essential utility functions like firmware upgrade and

configuration management.

By choosing different functions in the Function Tree, you can change all the settings in the Main

Configuration Screen. The main configuration screen will show the current status of your Switch by clicking

the model name on top of the function tree.

At the upper right corner of the screen the username and current IP address will be displayed.

Under the username is the Logout button. Click this to end this session.

NOTE: If you close the web browser without

clicking the Logout button first, then it will be seen

as an abnormal exit and the login session will still

be occupied.

Click on the D-Link logo at the upper left corner of the screen to be redirected to the local D-Link website.
