2 Hardware Installation

This chapter provides unpacking and installation information for the D-Link Metro Ethernet Switch.

Step 1: Unpacking

Open the shipping carton and carefully unpack its contents. Please consult the packing list located in the

User Manual to make sure all items are present and undamaged. If any item is missing or damaged, please

contact your local D-Link reseller for replacement.

One D-Link Metro Ethernet Switch

One AC power adapter

Four rubber feet

Screws and two mounting brackets

Wall-mount kit

If any item is found missing or damaged, please contact the local reseller for replacement.

Step 2: Switch Installation

For safe switch installation and operation, it is recommended that you:

Visually inspect the power cord to see that it is secured fully to the AC power connector.

Make sure that there is proper heat dissipation and adequate ventilation around the switch.

Do not place heavy objects on the switch.

Desktop or Shelf Installation

When installing the switch on a desktop or shelf, the rubber feet included with the device must be attached to

the bottom at each corner of the device’s base. Allow enough ventilation space between the device and the

objects around it.

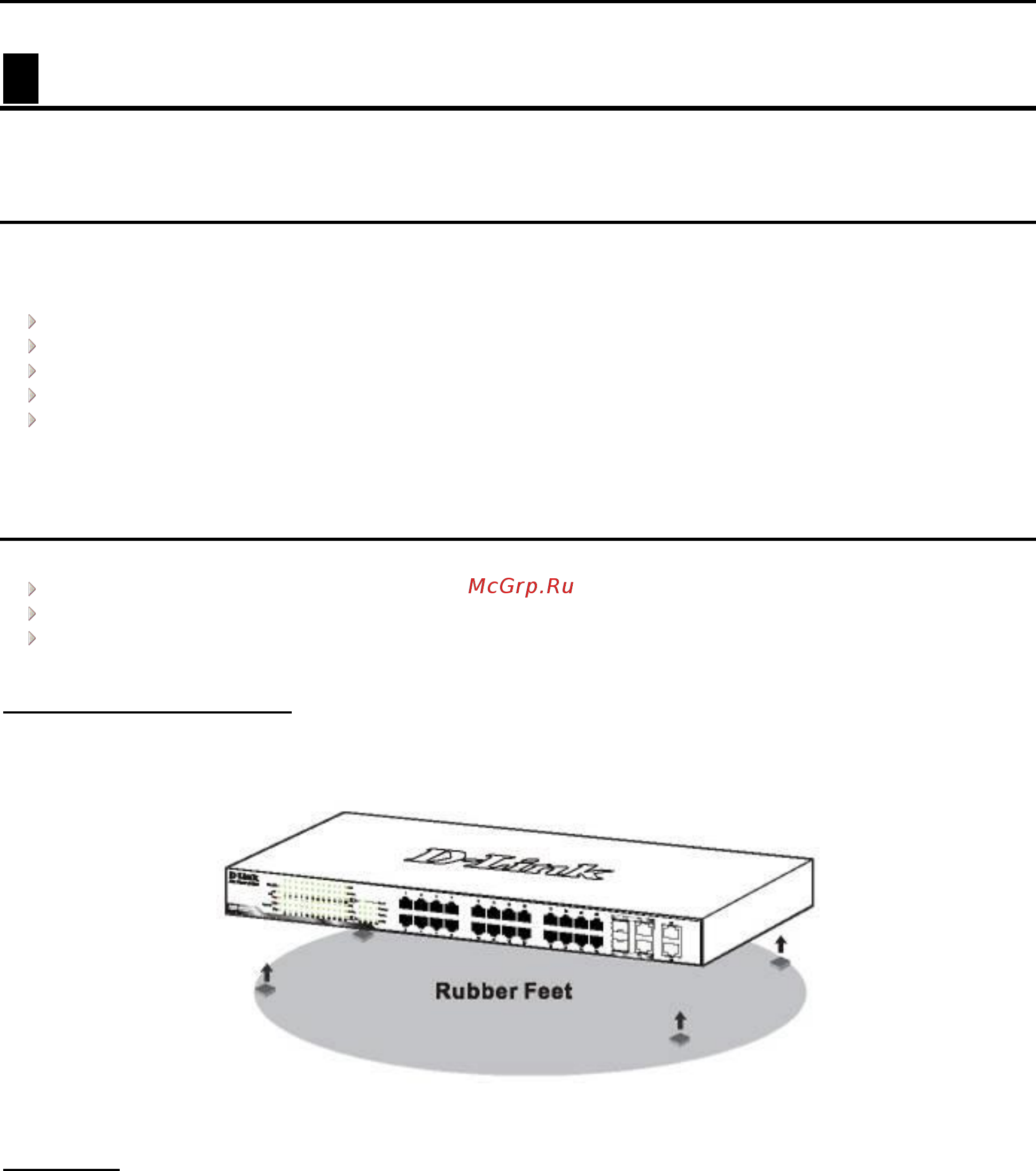

Figure 2.1 – Attach the adhesive rubber pads to the bottom

Wall-mount

The Switch can be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this

purpose.

Please follow the installation steps to complete wall-mount process.

 Mounting on a cement wall

Step 1: Mount the nylon screw anchors ø5 x 22L mm (included in the accessory kit ) into a cement wall.

Step 2: Drive the T3 x 15L screws into the nylon screw anchors.

Step 3: Hook the mounting holes of the switch back on the screws.

 Mounting on a wood wall

Step 1: Drive the T3 x 15L screws into a wood wall.

Step 2. Hook the mounting holes of the switch back on the screws.
