The following section explains how to connect the RPS to the Switch.

 Disconnect the Switch from the main AC power source.

 Insert the 14-pin end of the DPS-CB150-2PS (HW: B1) DC power supply cord into

the RPS and the 2-pin end into the receptacle of the RPS port on the Switch.

 Using a standard AC power cord, connect the RPS to the main AC power source. A

green LED on the front panel of the RPS will illuminate to indicate a successful

connection.

 Make sure that the ON/OFF toggle switch on the rear panel of the Switch is turned

on.

 Re-connect the Switch to the AC power source and power on the RPS.

No configuration is needed in the Switch software for this installation.

Installing the RPS into a Rack-mount Chassis

DPS-800

The DPS-800 is a standard-size (1 standard unit in height) rack-mountable unit designed

to hold up to two RPS units.

NOTE: This rack-mount chassis supports the following RPS units: DPS-500A and

DPS-500DC.

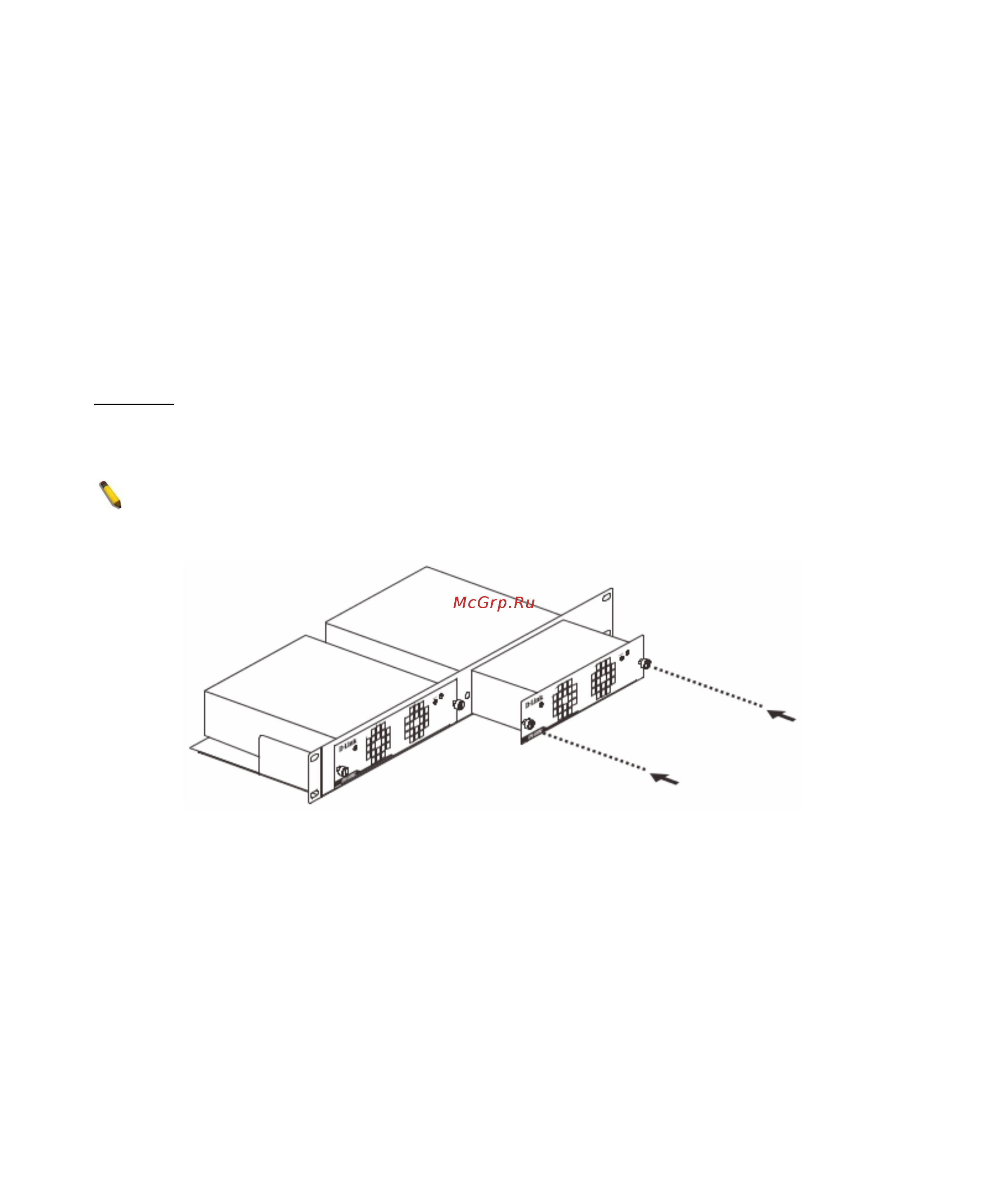

Figure 11 — Install the DPS-500A in the DPS-800
