xStack

DGS-3120 Series Managed Switch Hardware Installation Guide

NOTE: See the RPS Quick Installation Guide for more information.

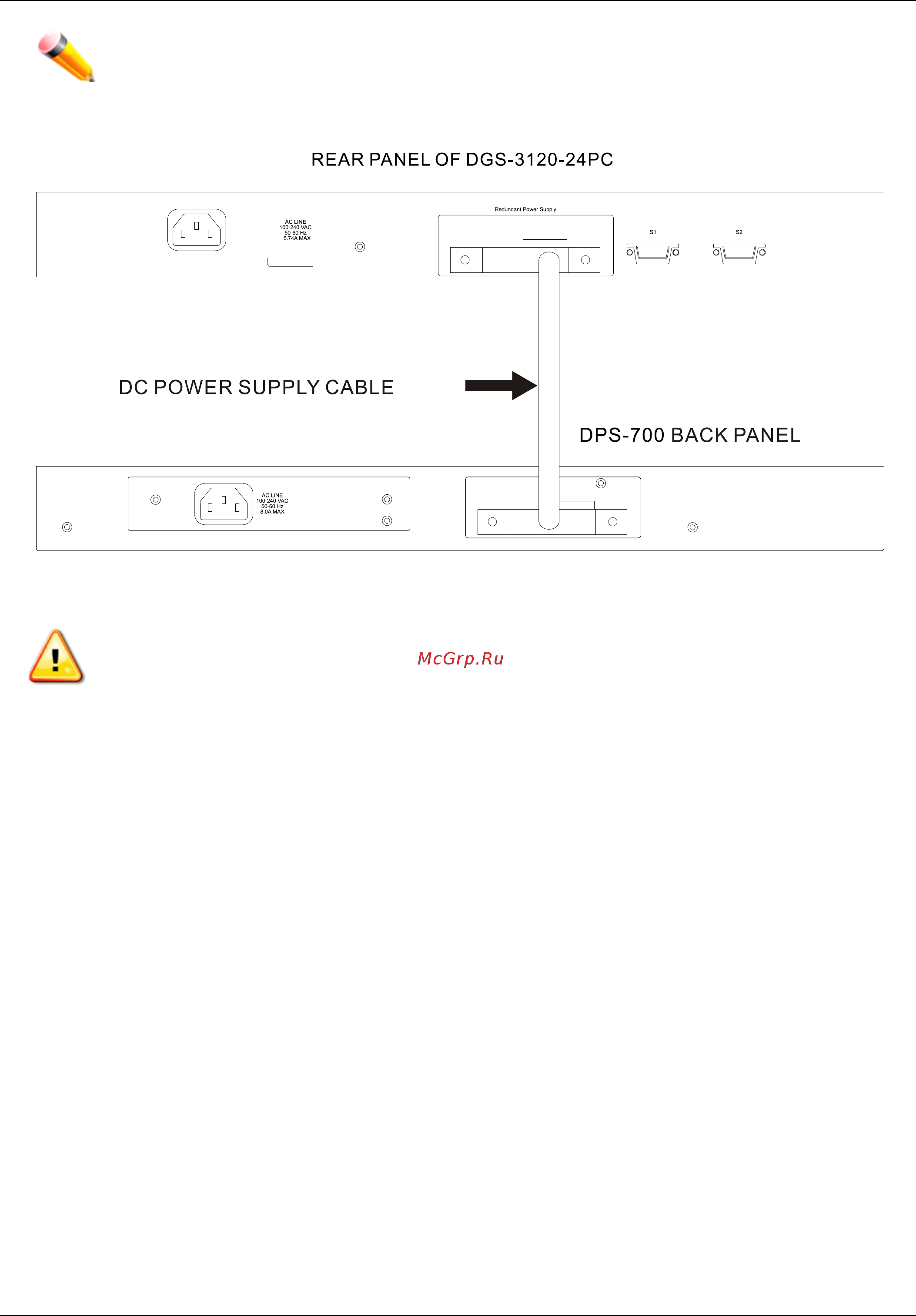

Figure 2- 7. Rear view of the DPS-700 connected to a DGS-3120-24PC

CAUTION: Do not connect the DPS-700 to the DGS-3120-24PC/48PC by using the 14-pin DC power

cable. It may cause damage when using the wrong DC power cable. ONLY use the 22-pin DC power

cable.
