xStack

DGS-3120 Series Managed Switch Hardware Installation Guide

DPS-900

The DPS-900 is a standard-size rack mount (5 standard units in height) designed to hold up to eight DPS-200 or DPS-

500 redundant power supplies.

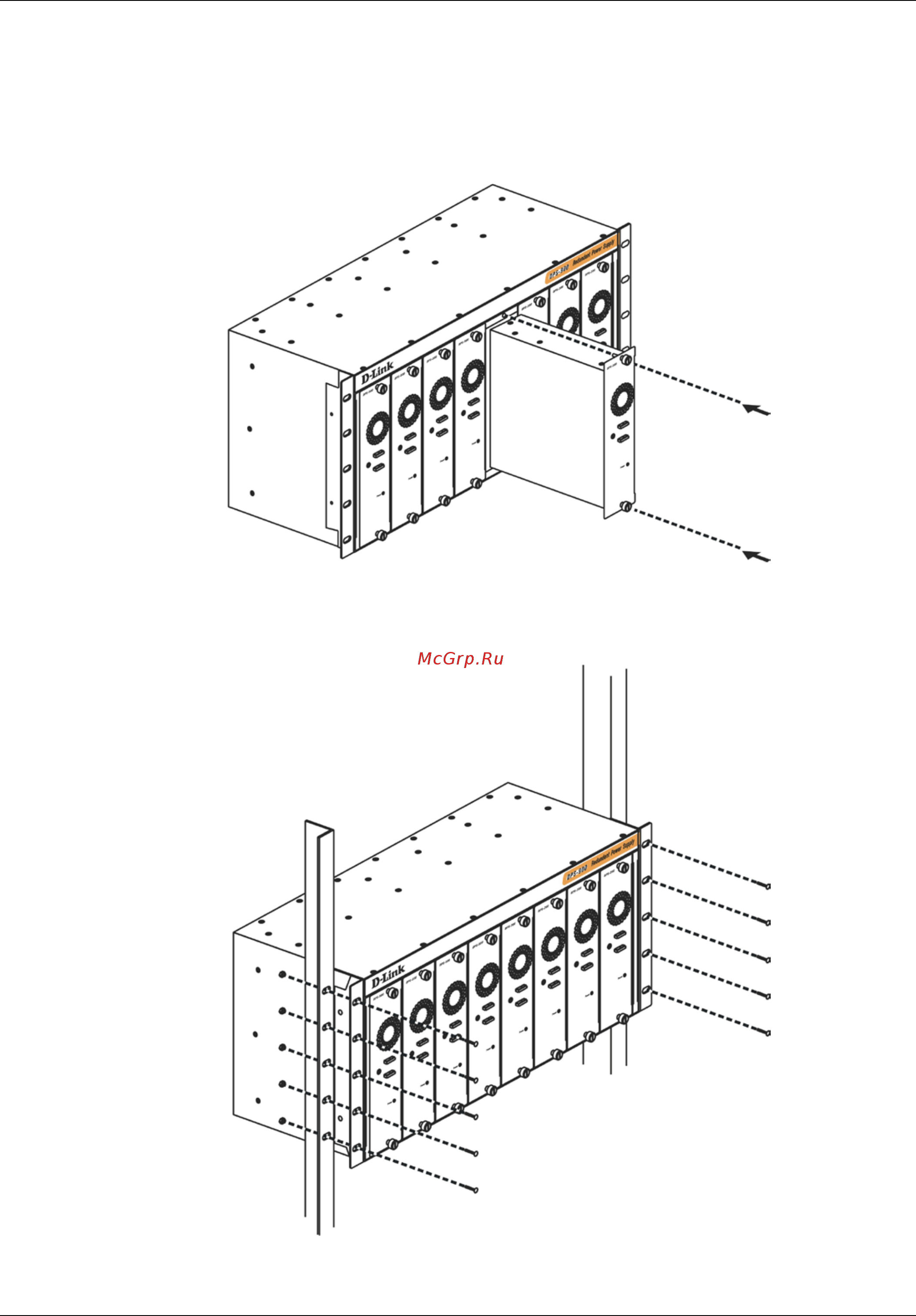

Figure 2- 10. Inserting the DPS-200 or DPS-500 into the DPS-900

The RPS can be mounted in a standard 19" rack. Use the following diagram to guide you.

Figure 2- 11. Installing the DPS-900 into the equipment rack
