xStack
®
DGS-3120 Series Managed Switch Hardware Installation Guide
21
Connecting the Switch
Switch to End Node
Switch to Switch
Connecting To Network Backbone or Server
NOTE: All high-performance N-Way Ethernet ports can support both MDI-II and MDI-X connections.
Switch to End Node
End nodes include PCs outfitted with a 10, 100 or 1000 Mbps RJ-45 Ethernet Network Interface Card (NIC) and
routers. An end node connects to the Switch via a twisted-pair UTP/STP cable. Connect the end node to any of the
1000BASE-T ports of the Switch. The Link/Act LEDs for each Ethernet port will light green or amber when the link is
valid. A blinking LED indicates packet activity on that port.
DGS-3120-24TC
S1
Power
S2Console
FanRPS
SDMaster
100M
1000M
Link
Act
10/100M
1000M
1 2 3 4
5
876 9 10 11 12 13 16 17 18 19 20
21F
21F
22T
22F
22F
23T
23F
23F
24T
24F
24F
1514
Stack ID
xSt ack

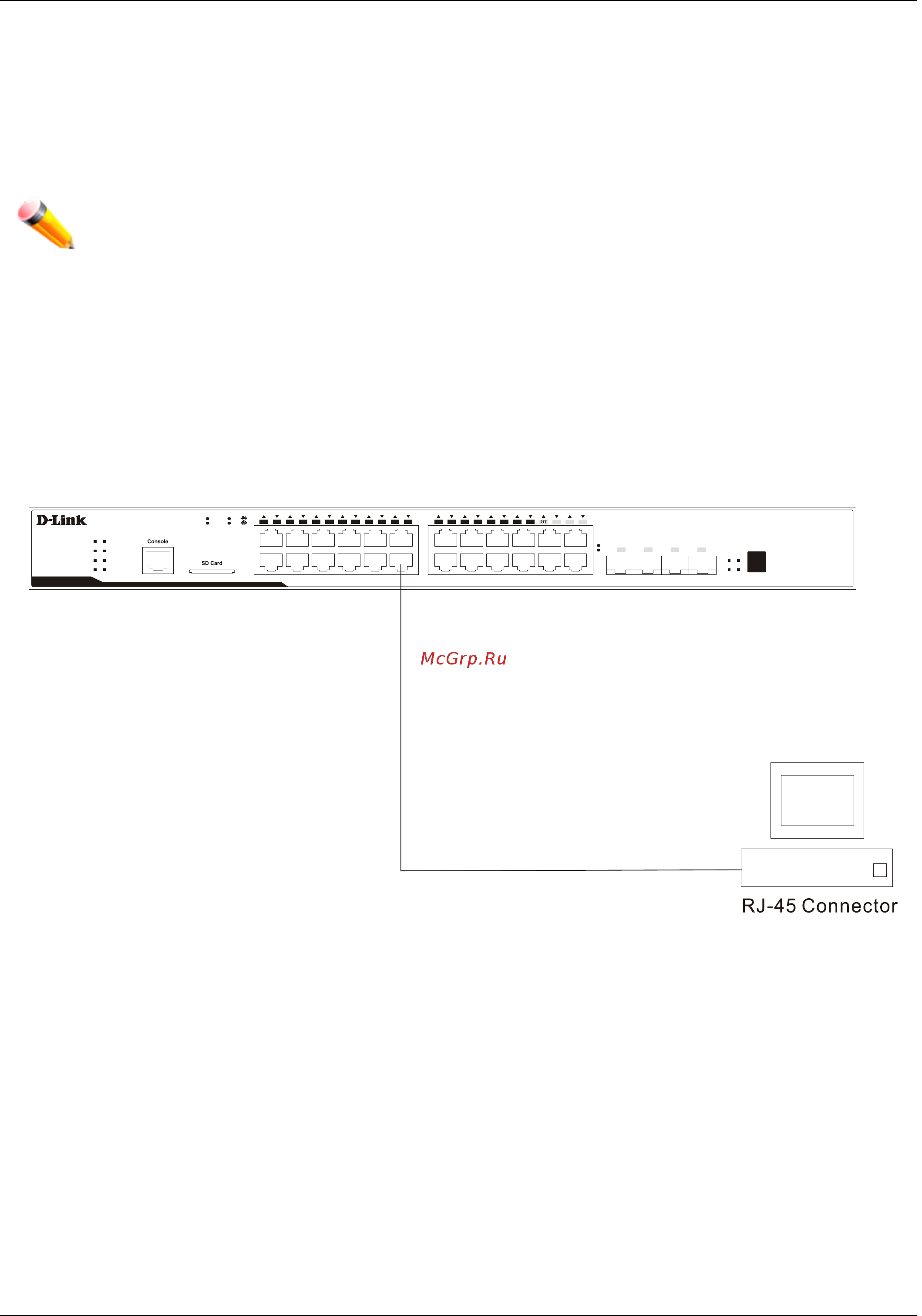

Figure 3- 1. Connecting the Switch to an end node
