D-Link DGS-3120-24SC/*RI [46/51] Console cable

xStack

DGS-3120 Series Managed Switch Hardware Installation Guide

Console Cable

When connecting the Switch a PC, a Console cable is necessary. The following diagrams and tables show the

standard Console-to-DJ-45 receptacle/connector and their pin assignments.

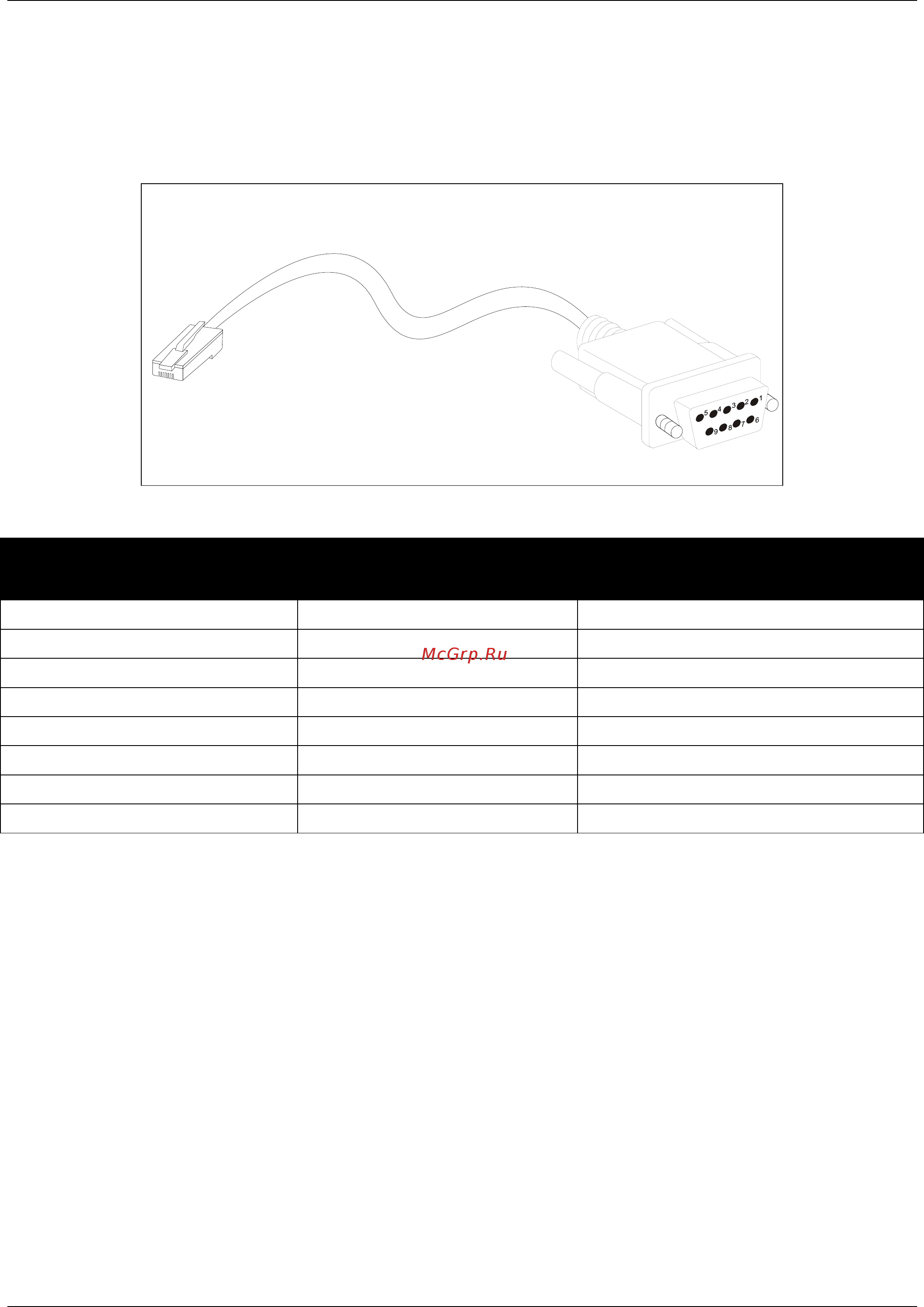

Figure B- 2. Console-to-RJ-45 Cable

Console-RJ-45 Pin Assignments

Pin Console (DB9/RS232) RJ-45

Not Used Not Used

RXD Not Used

TXD TXD

Not Used GND

GND (shared) GND

Not Used RXD

Not Used Not Used
