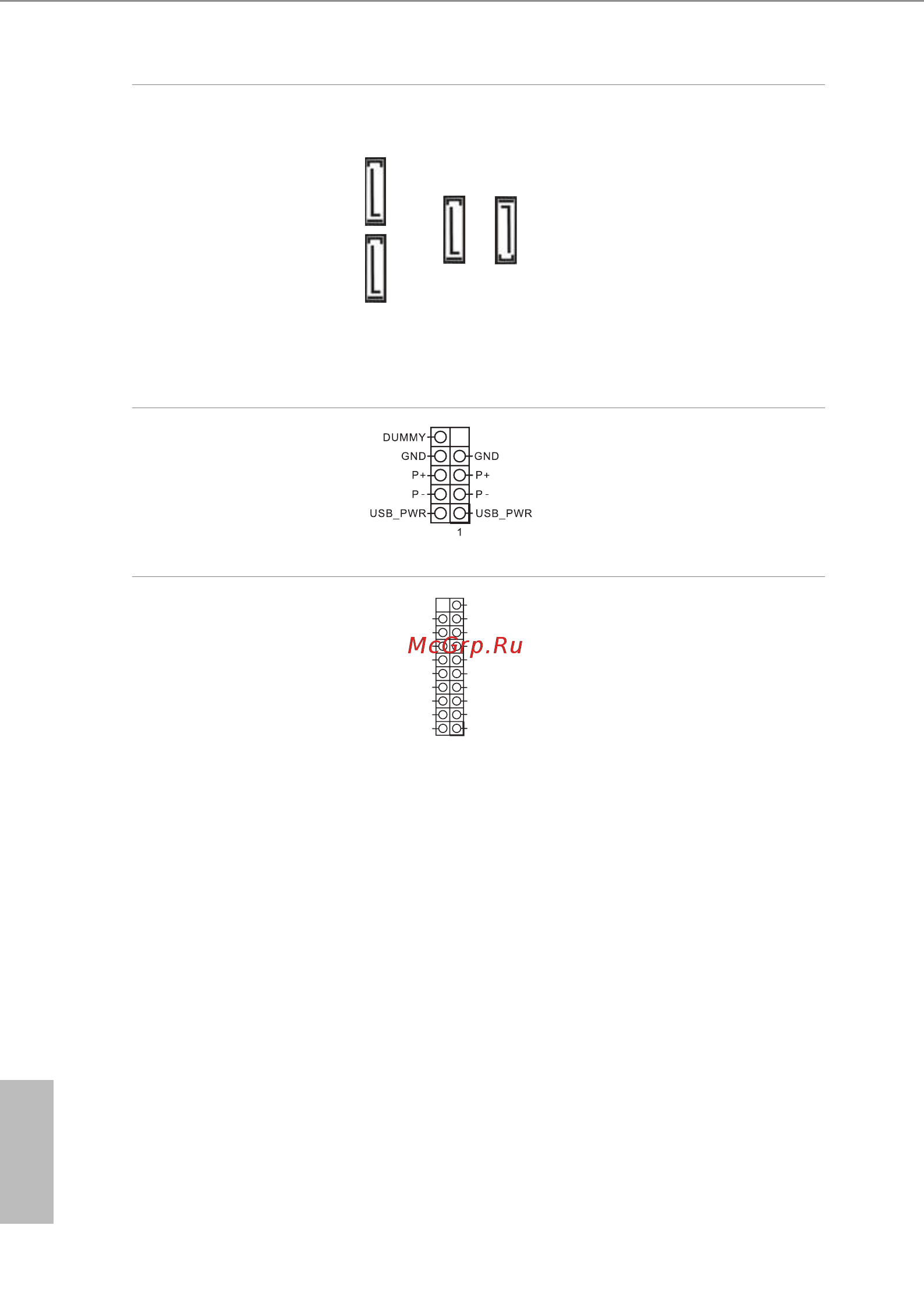

Serial ATA3 Connectors
(SATA3_0:
see p.7, No. 15)
(SATA3_1:
see p.7, No. 16)
(SATA3_2:
see p.7, No. 11)
(SATA3_3:
see p.7, No. 12)
(SATA3_4:
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* If M2_1 is occupied by
a SATA-type M.2 device,
SATA3_1 will be disabled.
USB 2.0 Header
(9-pin USB1_2)
(see p.7, No. 17)
ere is one header on
this motherboard. Each
USB 2.0 header can
support two ports.
USB 3.1 Gen1 Header
(19-pin USB3_7_8)
(see p.7, No. 10)
ere is one header on
this motherboard. Each
USB 3.1 Gen1 header can
support two ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA3_5
SATA3_4
SATA3_0
SATA3_1
