25
English
Z390 Phantom Gaming-ITX/ac
12V
G
R
B
1

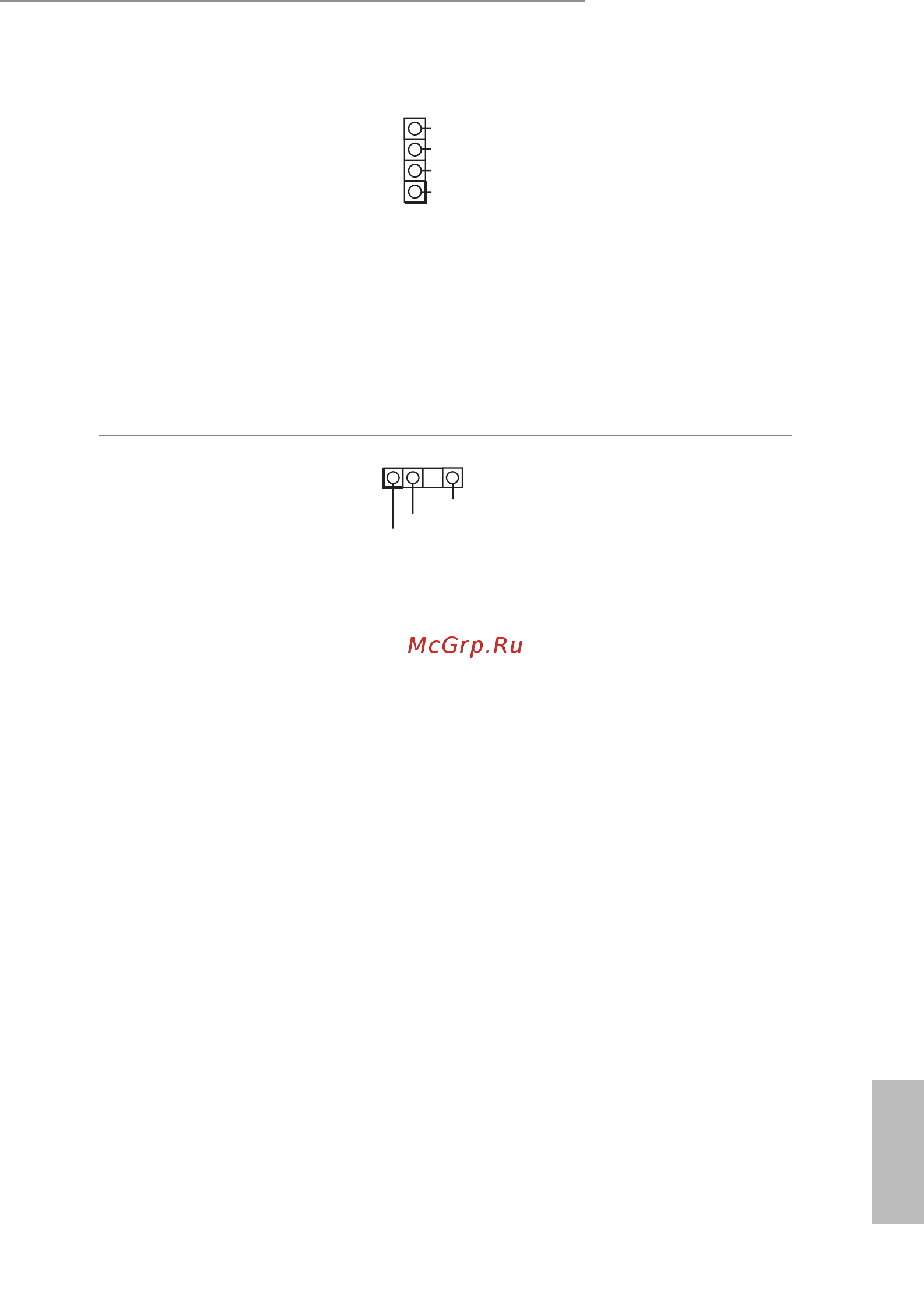

RGB LED Header
(4-pin RGB_LED1)
(see p.7, No. 7)
RGB header is used to connect
RGB LED extension cable which
allows users to choose from
various LED lighting eects.
Caution: Never install the
RGB LED cable in the wrong
orientation; otherwise, the cable
may be damaged.
*Please refer to page 46 for
further instructions on this
header.
Addressable LED Header
(3-pin ADDR _LED1)
(see p.7, No. 5)
VOUT
DO_ADDR
GND
1
is header is used to connect
Addressable
LED extension cable
which allows users to choose
from various LED lighting
eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 47 for
further instructions on this
header.
