3.6 Program 6 (6 – Vacuum Leakage Test)
Vacuum is produced in the chamber down to (P1) -12.5 psig (25.5 Ih).
At this stage all the valves close. The autoclave remains in this stage for
5 minutes. This period enables the condition in the chamber to reach
equilibrium. After the 5 minutes have elapsed the printer records the
pressure that is referred to as P2. At this point the test begins and lasts
10 minutes. At the end of the test, the printer records the results. The
pressure at the end of the test is referred to as P3. The rate of change of
P3 to P2 shall not exceed 0.02 psi/min. If P3 to P2 exceeds 0.02 psi/min
the printer will print “FAIL”. If P3 to P2 is within the required value,
the cycle will end normally.
Operations Sequence
♦ Vacuum is produced in the chamber down to -12.5 psig (25.5 Ih).
♦ The vacuum pump stops.
♦ The chamber is allowed to stabilize for 5 minutes then a test is done
to establish P2.
♦ A second test is done after 10 minutes to establish P3 and to
determine the vacuum lost (P3 - P2)
Note: During the test period the autoclave is not heated.
t1 = Approx. 20 minutes
t2 = 5 minutes
t3 = 10 minutes

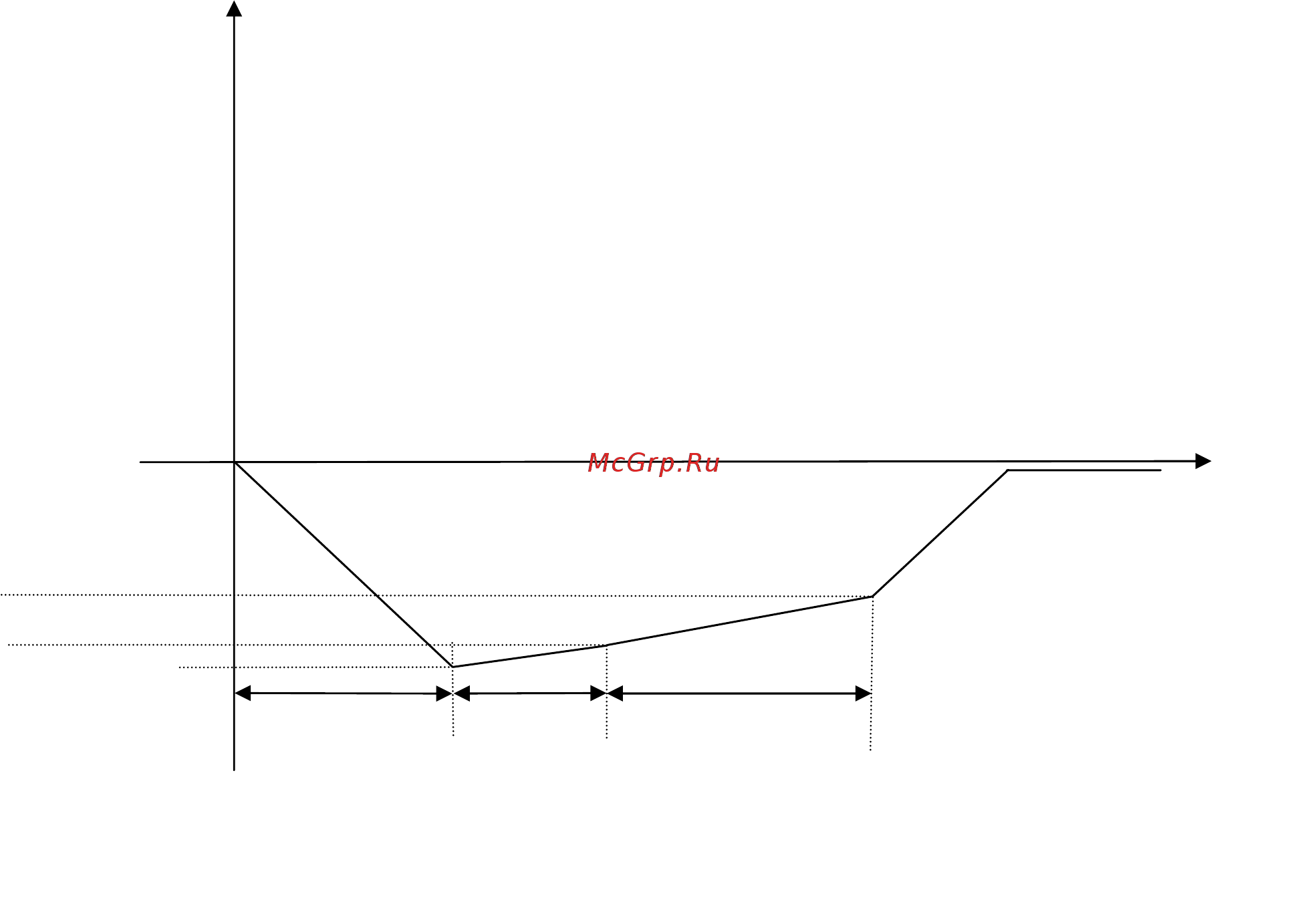

TIME
PRESSURE (PSIG)
Ambient Pressure
t1
t2
t3
P
3
P
2
P1= -12.5 psig (25.5 Ih)
