Tp-Link M7300 V1 [20/55] Quick setup via your pc

M7300

LTE-Advanced Mobile Wi-Fi User Guide

-10-

2.4.2 Quick Setup via your PC

1. Open a web-browser, enter the default address http://tplinkmifi.net or http://192.168.0.1 in

the Address field and then press Enter. When the login window appears, enter admin (in

lower-case letters)for password, and then click the Login button.

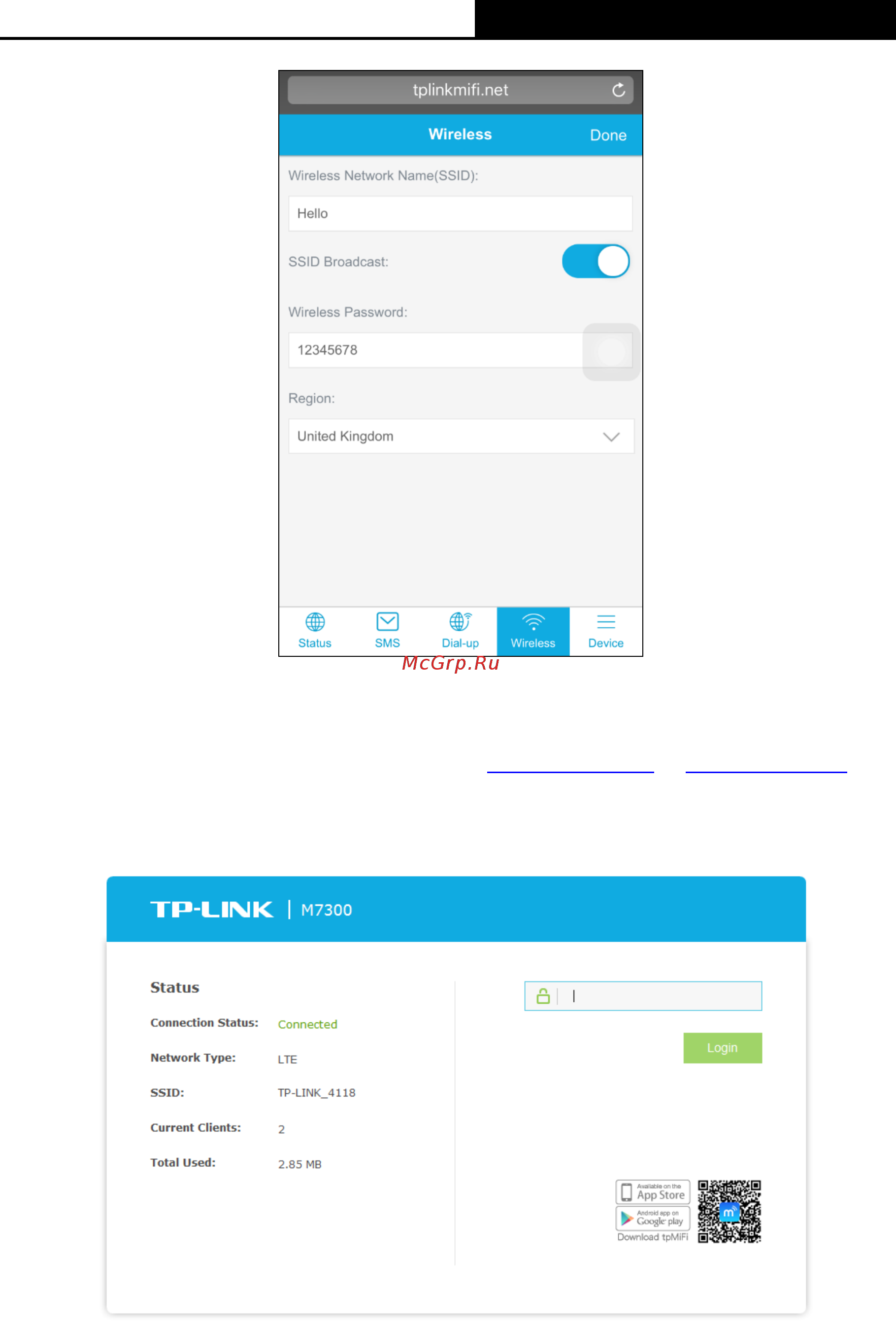

Figure 2-1 Login Windows



Note:

If the above screen does not pop-up, it means that your Web-browser has been set to a proxy.

Go to Tools menu > Internet Options > Connections > LAN Settings, in the screen that
