Tp-Link M7300 V1 [31/55] Basic settings

M7300

LTE-Advanced Mobile Wi-Fi User Guide

-21-

If you want to update the ISP information, please follow the steps below.

1) Download the latest ISP update file from the Support page at www.tp-link.com to your

computer.

2) Click Browse to locate and select the latest file.

3) Click Update.



Note:

Please keep the device powered on during the update process to prevent update fail.

3.4.2 Wireless

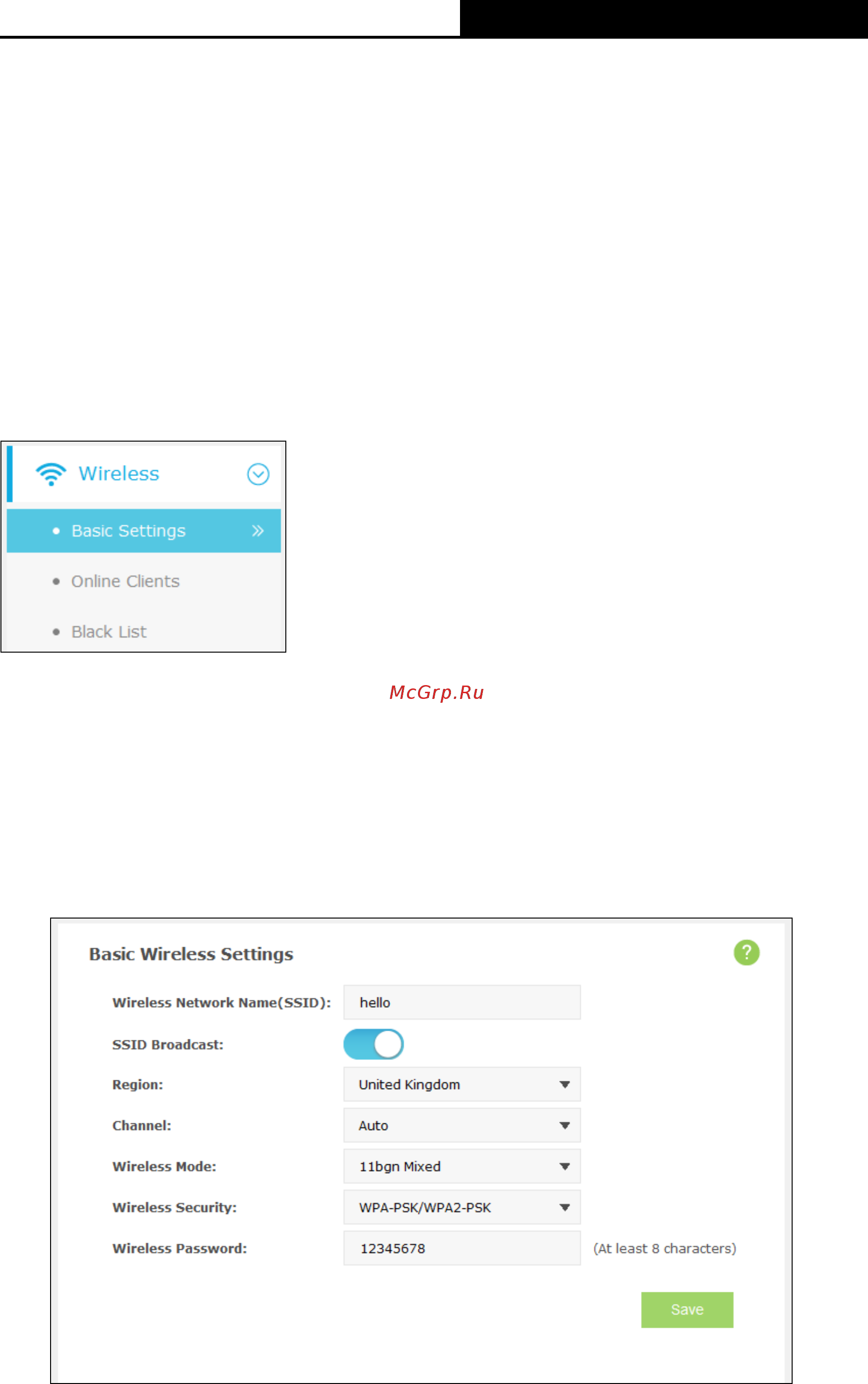

Figure 3-15 Wireless Menu

Wireless Settings can prevent any intruders from connecting your wireless network, occupying

your network resources, hacker-overhearing and hacker-attacking, and thus enhance the

security of your wireless network.

3.4.2.1. Basic Settings

You can configure basic wireless settings on this page.

Figure 3-16 Wireless Basic Settings
