M7300
LTE-Advanced Mobile Wi-Fi User Guide
-17-

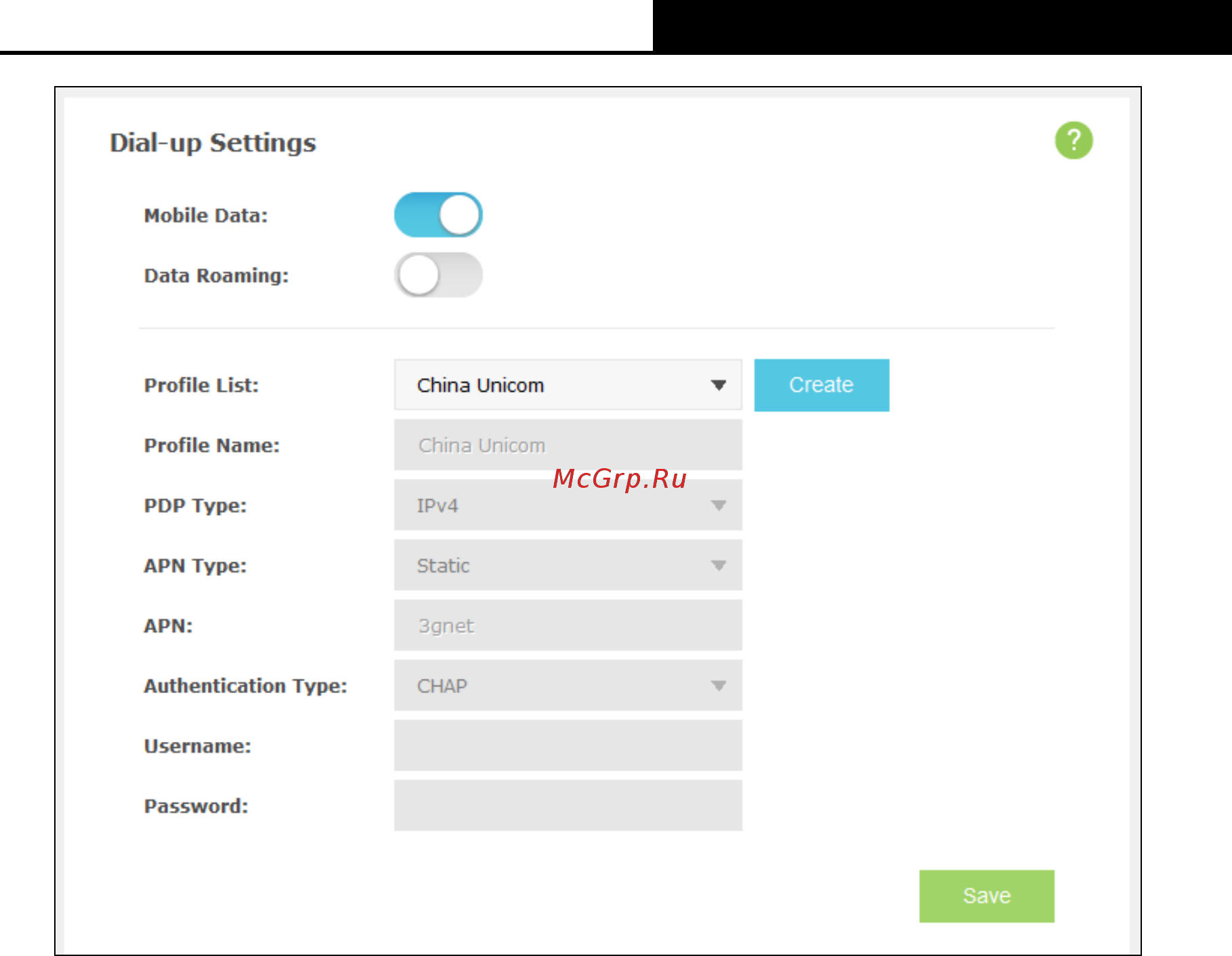

Figure 3-9 Dial-up Settings
Mobile Data: It is enabled by default. You can disable it to prohibit Internet access.
Data Roaming: It is disabled by default. If disabled, data service is not allowed when
roaming.
Profile List: A list of profile for you to select. If you find any parameters wrong, you can
click Create to create a new profile with the right settings (as shown in Figure 3-10). Select
a profile you have created, you can further modify its parameters.
Profile Name: The name of the profile you've selected.
PDP Type: Select the type of your PDP (Packet Data Protocol).
APN Type: Select the type of your APN, either Dynamic or Static. If you select Dynamic,
the device will have dynamic APN, which does not need to be specified. If you select Static,
you can manually specify your APN.
APN: Access Point Name, provided by your ISP. You need to set APN only after selecting
the static APN type. You are recommended to keep the default value.
Authentication Type: Some ISPs need a specific authentication type, please confirm it
with your ISP or keep the default value.
None: No any authentication is needed.
PAP: Password Authentication Protocol. This protocol allows the device to establish
authentication with the peer using two handshakes. Select this option if the ISP
requires this authentication type.
CHAP: Challenge Handshake Authentication Protocol. This protocol allows the device
