TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router User Guide

• Start IP Address: Enter a value for the DHCP server to start with when issuing IP

addresses. Because the default IP address for the Router is 192.168.1.1, the default Start

IP Address is 192.168.1.2, and the Start IP Address must be 192.168.1.2 or greater, but

smaller than 192.168.1.254.

• End IP Address: Enter a value for the DHCP server to end with when issuing IP

addresses. The End IP Address must be smaller than 192.168.1.254. The default End IP

Address is 192.168.1.254.

• Leased Time (hour): The Leased Time is the amount of time in which a network user will

be allowed connection to the Router with their current dynamic IP address. Enter the

amount of time, in hours, then the user will be “leased” this dynamic IP address. After the

dynamic IP address has expired, the user will be automatically assigned a new dynamic IP

address. The default is 24 hours.

¾ Static IP Lease List: The function allows you to specify a reserved IP address for a PC on the

LAN, that PC will always obtain the assigned IP address each time when it accesses the

DHCP server. Reserved IP addresses should be assigned to servers that require permanent

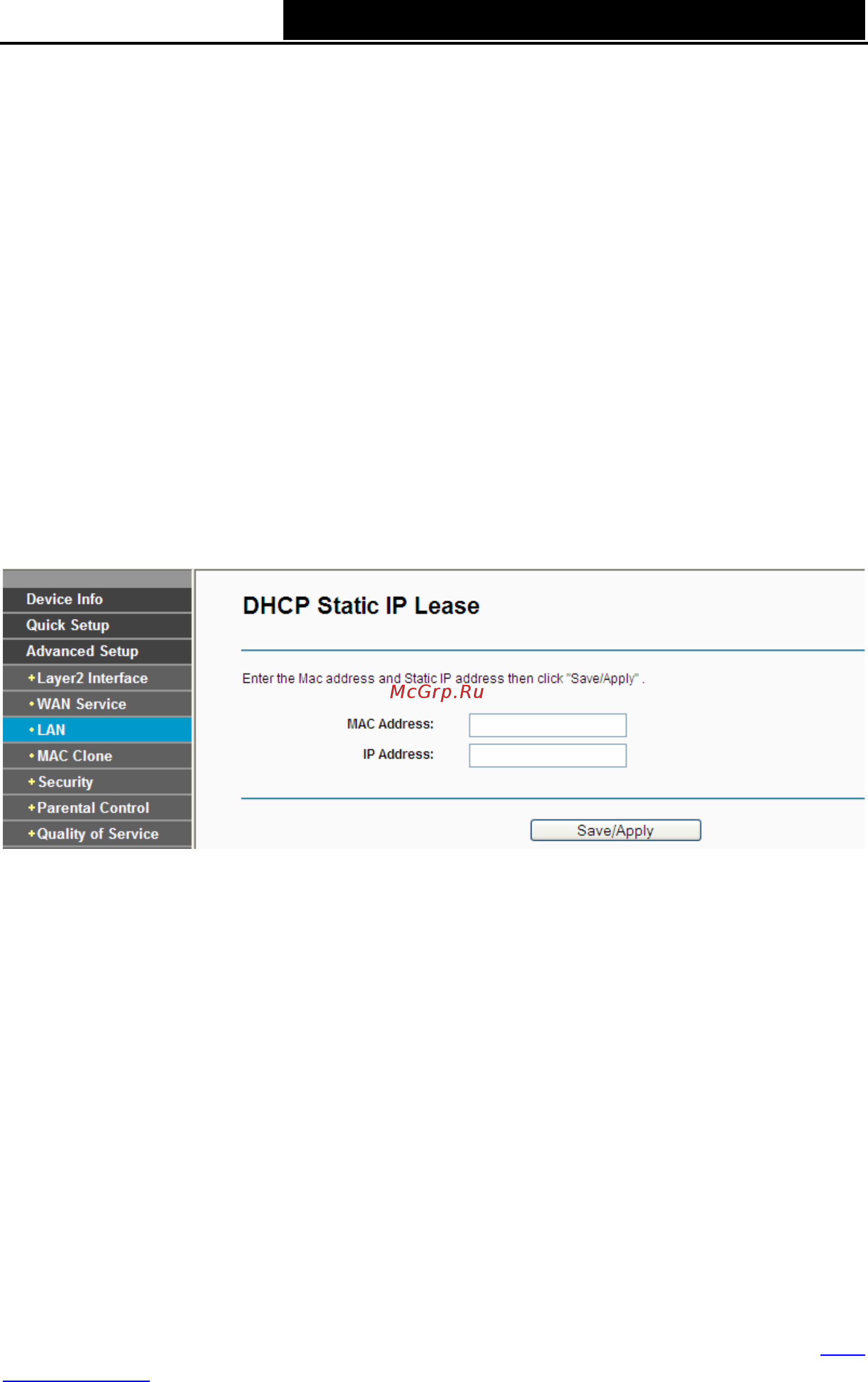

IP settings. Click the Add Entries button, and then you will set the rule in the screen as

below.

Figure 4-22

• MAC Address: The MAC address of the computer on the LAN which you want to reserve

an IP.

• IP Address: The IP address you want to reserved to the computer.

¾ Configure the second IP Address and Subnet Mask: You can configure the Router’s

second IP Address and Subnet Mask for LAN Interface through which you can also access to

the Web-based Utility as the default IP Address and Subnet Mask.

)

Note:

UPnP, DHCP Server and the second IP Address are not available for the connection type of

Bridging here, they won’t display on the preceding screen since only Bridging is selected.

4.4.4 MAC Clone

Choose menu “Advanced Setup”Æ“MAC Clone”, you can configure the MAC address of the

WAN Interface as shown below.

The WAN Interface List displays the Lay2 Interfaces you have configured on the section 4.4.1

Layer2 Interface

and its default MAC Address. If you have not configured corresponding WAN
