TX-6610 1-Port Gigabit GPON Terminal User Guide
3

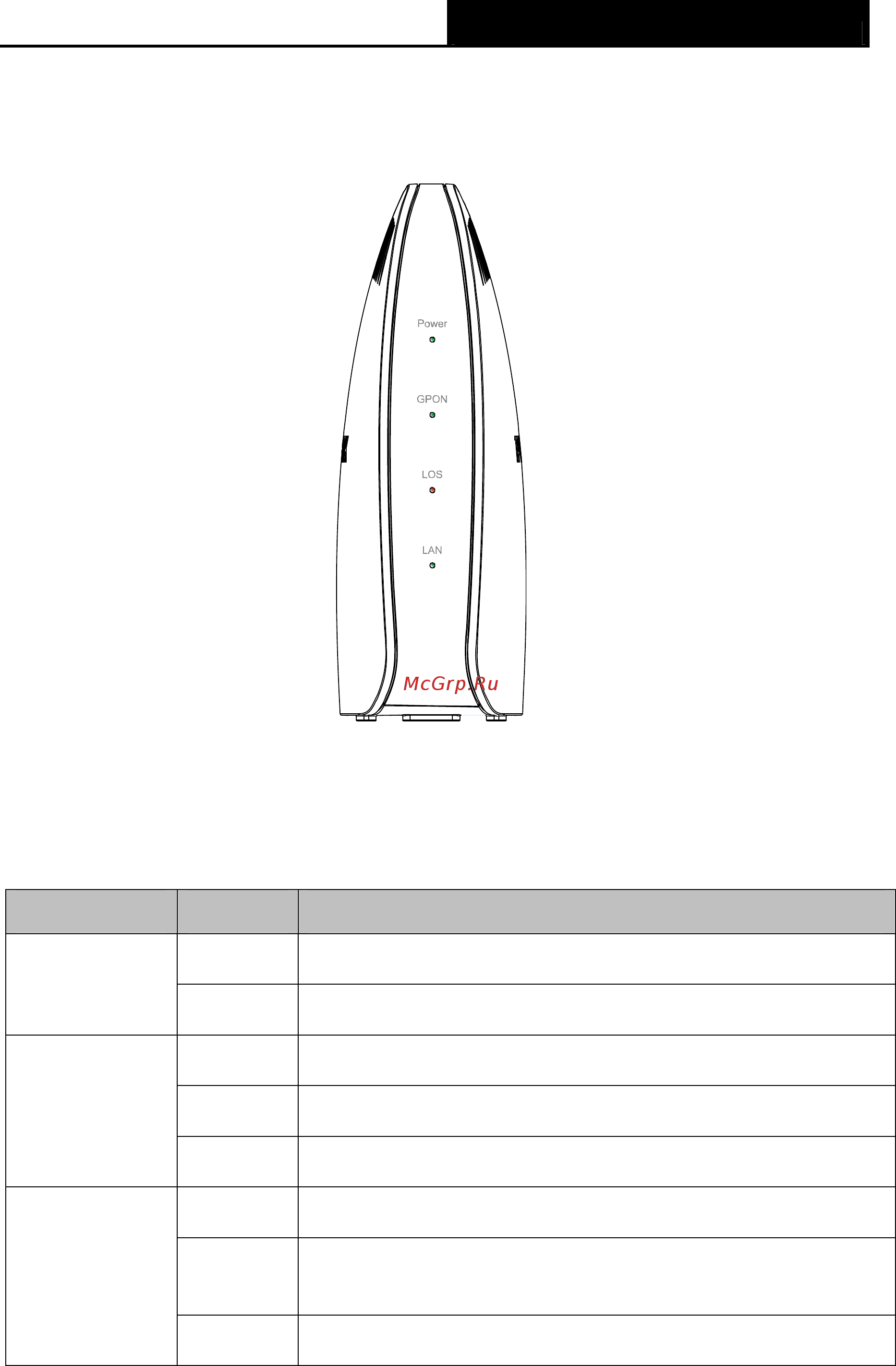

1.3 Panel Layout
1.3.1 The Front Panel
Figure 1-1
The GPON Terminal’s LEDs are located on the front panel. They indicate the device’s working
status. For details, please refer to LED Explanation.
LED Explanation:
Name Status Indication
On
The ONT is powered on.
Power
Off
The ONT is off.
On
The ONT has connected to the OLT.
Flash
The ONT is trying to set up a connection to the OLT.
GPON
Off
The ONT has not connected to the OLT.
On
The Rx optical power of the ONT is abnormal.
Flash
The Rx optical power of the ONT is lower than the optical
receiver sensitivity.
LOS
Off
The Rx optical power of the ONT is normal.
