LAUNCH X-431 PRO3 User Manual

page/total page number. Swipe the screen from the right/left to advance/return to the

next/previous page.

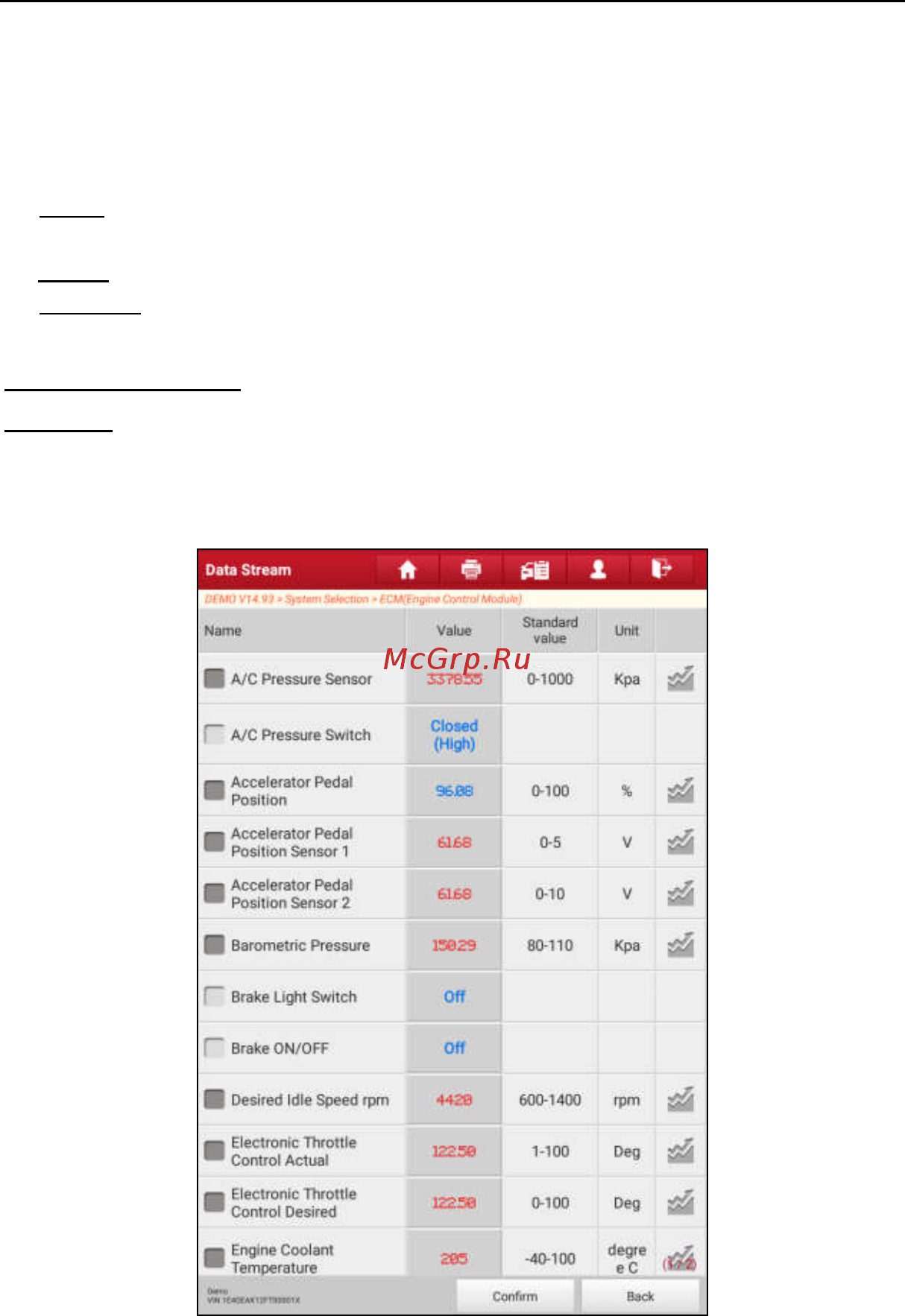

There are 3 types of display modes available for data viewing, allowing you to

view various types of parameters in the most suitable way.

 Value – this is the default mode which displays the parameters in texts and

shows in list format.

 Graph – displays the parameters in waveform graphs.

 Combine – this option is mostly used in graph merge status for data

comparison. In this case, different items are marked in different colors.

On-screen Buttons:

Combine

: This option is mostly used in graph merge status for data comparison.

In this case, different items are marked in different colors. Tap it to select the

desired items (maximum 4 items can be selected), and then tap “Confirm” to

view the merged items in graph. See Fig. 5-30 & Fig. 5-31.
