Launch LA01009 Инструкция HD Box III онлайн
Содержание
- Adaptor cable kit 1
- Battery clamps cable 1
- Blue indicates the module is in wireless ap access 1
- Bluetooth blue indicates the module is working in 1
- Bluetooth mode 1
- Cigarette lighter 1
- Diagnostic cable 1
- Diagnostic tool via usb cable 1
- Displays the working status of the module it is defined as follows 1
- Hd iii module 1
- Illuminates blue red 1
- Knowledge of x 431 hd iii module accessory checklist 1
- Launch 1
- Led indicators 1
- Password envelope 1
- Point mode and works as a wi fi hotspot 1
- Power adaptor 1
- Power it illuminates solid red when the module is 1
- Powered on 1
- T wi fi 1
- Technical parameters working voltage 9 36v power consumption 2w working temp 10 c 55 c communication via 1
- Usb cable 2 bluetooth 1
- Usb cables 1
- Usb it lights up when the module is connected to the 1
- Vehicle the indicator lights up and flashes otherwise it will not illuminate 1
- Vehicle while the module is communicating with the 1
- When the module works in wireless client mode it 1
- X 431 hd iii module quick start guide 1
- X 431 hd iii module works as a vehicle communication interface device which is used read the vehicle data and then send it to the diagnostic tool via bluetooth wi fi communication or usb connection the led indicators enable you to easily identify the working status of the module 1
- Activate x 431 hd module download software 2
- Launch 2
- Vehicle connection 2
- Wi fi communication setup 2
- X 431 hd iii module quick start guide 2
Похожие устройства
- Launch LA01011 Руководство пользователя
- Pierre Ricaud P21080.1163Q Инструкция по эксплуатации
- Launch CRP-329 (LA07006) Список ПО
- Launch CRP-329 (LA07006) Краткое руководство
- Launch CRP-329 (LA07006) Руководство пользователя
- Launch CRP 129 Premium (LA07005) Руководство пользователя
- Launch Creader CR-HD Heavy Duty (УТ000003163) Руководство пользователя
- Pierre Ricaud P21080.116GQ Инструкция по эксплуатации
- Launch Cresetter II (301050126) Руководство пользователя
- Launch Creader CR611 (LA07004) Руководство пользователя
- Pierre Ricaud P21080.5163Q Инструкция по эксплуатации
- Launch Creader CR601 (LA07003) Руководство пользователя
- Launch Creader CR501 (LA07002) Руководство пользователя
- Launch CRP-229 (301050175) Руководство пользователя
- Pierre Ricaud P21080.5165Q Инструкция по эксплуатации
- Launch X-431 PRO (LA03005) Руководство пользователя
- Launch CNC-602A (LA32002) Руководство пользователя
- Launch CNC-601A (LA32001) Руководство пользователя
- Pierre Ricaud P21080.51B3Q Инструкция по эксплуатации
- Launch LA01001 Руководство пользователя

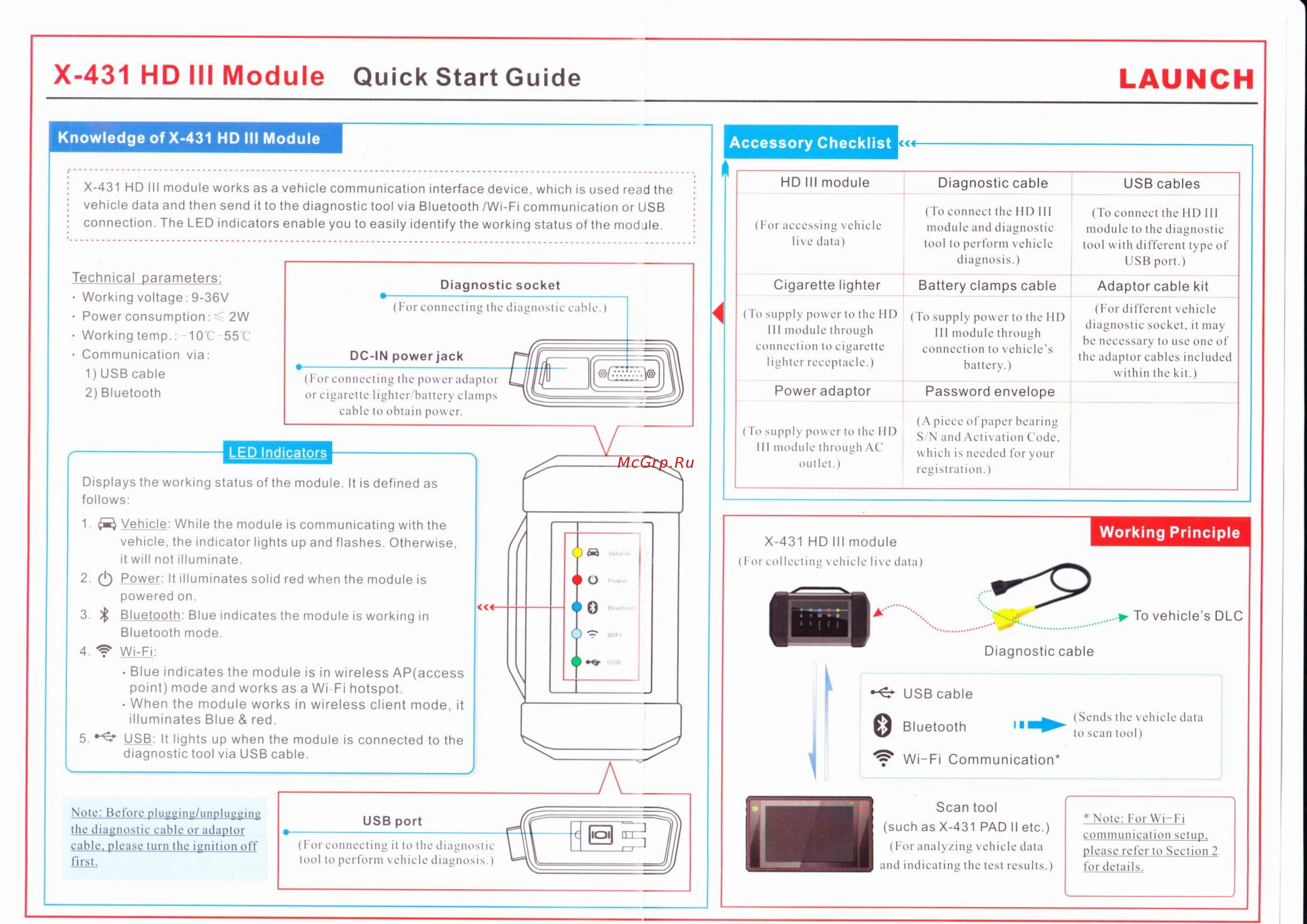

X 431 HD III Module Quick Start Guide Knowledge of X 431 HD III Module Accessory Checklist X 431 HD III module works as a vehicle communication interface device which is used read the vehicle data and then send it to the diagnostic tool via Bluetooth Wi Fi communication or USB connection The LED indicators enable you to easily identify the working status of the module Technical parameters Working voltage 9 36V Power consumption 2W Working temp 10 C 55 C Communication via 1 USB cable 2 Bluetooth Diagnostic socket For connecting the diagnostic cable DC IN power jack For connecting the power adaptor or cigarette lighter battery clamps cable to obtain power HD III module Displays the working status of the module It is defined as follows 1 Vehicle While the module is communicating with the vehicle the indicator lights up and flashes Otherwise it will not illuminate 2 Power It illuminates solid red when the module is powered on 3 Bluetooth Blue indicates the module is working in Bluetooth mode 4 T Wi Fi Blue indicates the module is in wireless AP access point mode and works as a Wi Fi hotspot When the module works in wireless client mode it illuminates Blue red 5 USB It lights up when the module is connected to the diagnostic tool via USB cable USB port For connecting it to the diagnostic tool to perform vehicle diagnosis Diagnostic cable USB cables To connect the I ID III module and diagnostic tool to perform vehicle diagnosis Toconnect the HD 111 module to the diagnostic tool with different type of USB port Cigarette lighter Battery clamps cable Adaptor cable kit To supply power to the III III module through connection to cigarette lighter receptacle To supply power to the I ID III module through connection to vehicle s battery For different vehicle diagnostic socket it may be necessary to use one of the adaptor cables included within the kit Power adaptor Password envelope For accessing vehicle live data To supply power to the 11D 111 module through AC outlet LED Indicators Note Before plugging unplugging the diagnostic cable or adaptor cable please turn the ignition off first LAUNCH A piece of paper bearing S N and Activation Code which is needed for your registration
