Инструкция HD Box III Страница: 2

Launch LA01009 [2/2] Activate x 431 hd module download software

Содержание

Похожие устройства

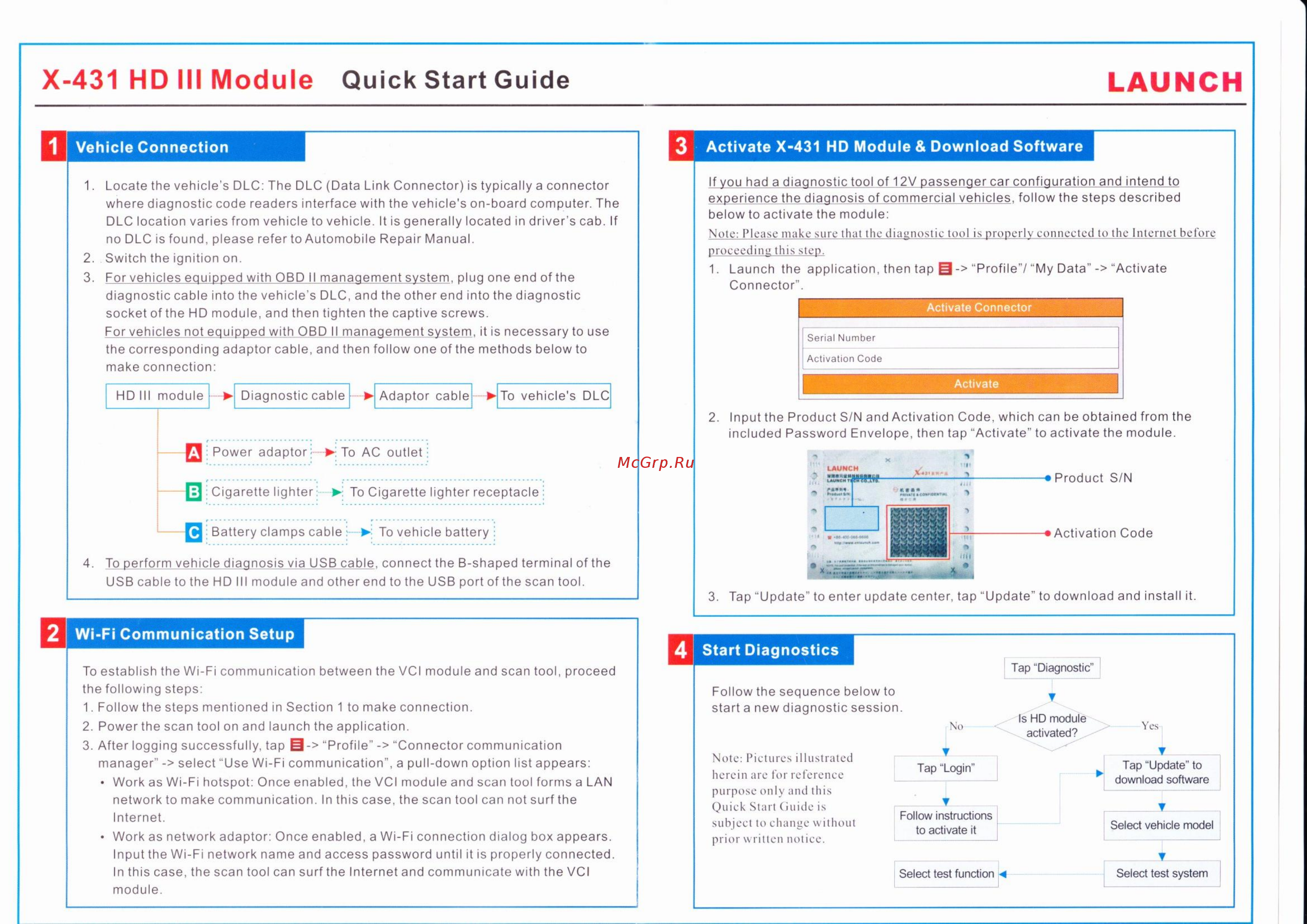

X 431 HD III Module Quick Start Guide LAUNCH 3 Activate X 431 HD Module Download Software Vehicle Connection 1 Locate the vehicle s DLC The DLC Data Link Connector is typically a connector where diagnostic code readers interface with the vehicle s on board computer The DLC location varies from vehicle to vehicle It is generally located in driver s cab If no DLC is found please refer to Automobile Repair Manual 2 Switch the ignition on 3 For vehicles equipped with OBD II management system plug one end of the diagnostic cable into the vehicle s DLC and the other end into the diagnostic socket of the HD module and then tighten the captive screws For vehicles not equipped with OBD II management system it is necessary to use the corresponding adaptor cable and then follow one of the methods below to make connection To vehicle s DLC If you had a diagnostic tool of 12V passenger car configuration and intend to experience the diagnosis of commercial vehicles follow the steps described below to activate the module Note Please make sure that the diagnostic tool is properly connected to the Internet before proceeding this step 1 Launch the application then tap S Profile My Data Activate Connector Activate Connector Serial Number Activation Code Activate 2 Input the Product S N and Activation Code which can be obtained from the included Password Envelope then tap Activate to activate the module O Power adaptor j To AC outlet R Cigarette lighter R Battery clamps cable To Cigarette lighter receptacle To vehicle battery 4 To perform vehicle diagnosis via USB cable connect the B shaped terminal of the USB cable to the HD III module and other end to the USB port of the scan tool 3 Tap Update to enter update center tap Update to download and install it 2 Wi Fi Communication Setup To establish the Wi Fi communication between the VCI module and scan tool proceed the following steps 1 Follow the steps mentioned in Section 1 to make connection 2 Power the scan tool on and launch the application 3 After logging successfully tap S Profile Connector communication manager select Use Wi Fi communication a pull down option list appears Work as Wi Fi hotspot Once enabled the VCI module and scan tool forms a LAN network to make communication In this case the scan tool can not surf the Internet Work as network adaptor Once enabled a Wi Fi connection dialog box appears Input the Wi Fi network name and access password until it is properly connected In this case the scan tool can surf the Internet and communicate with the VCI module
