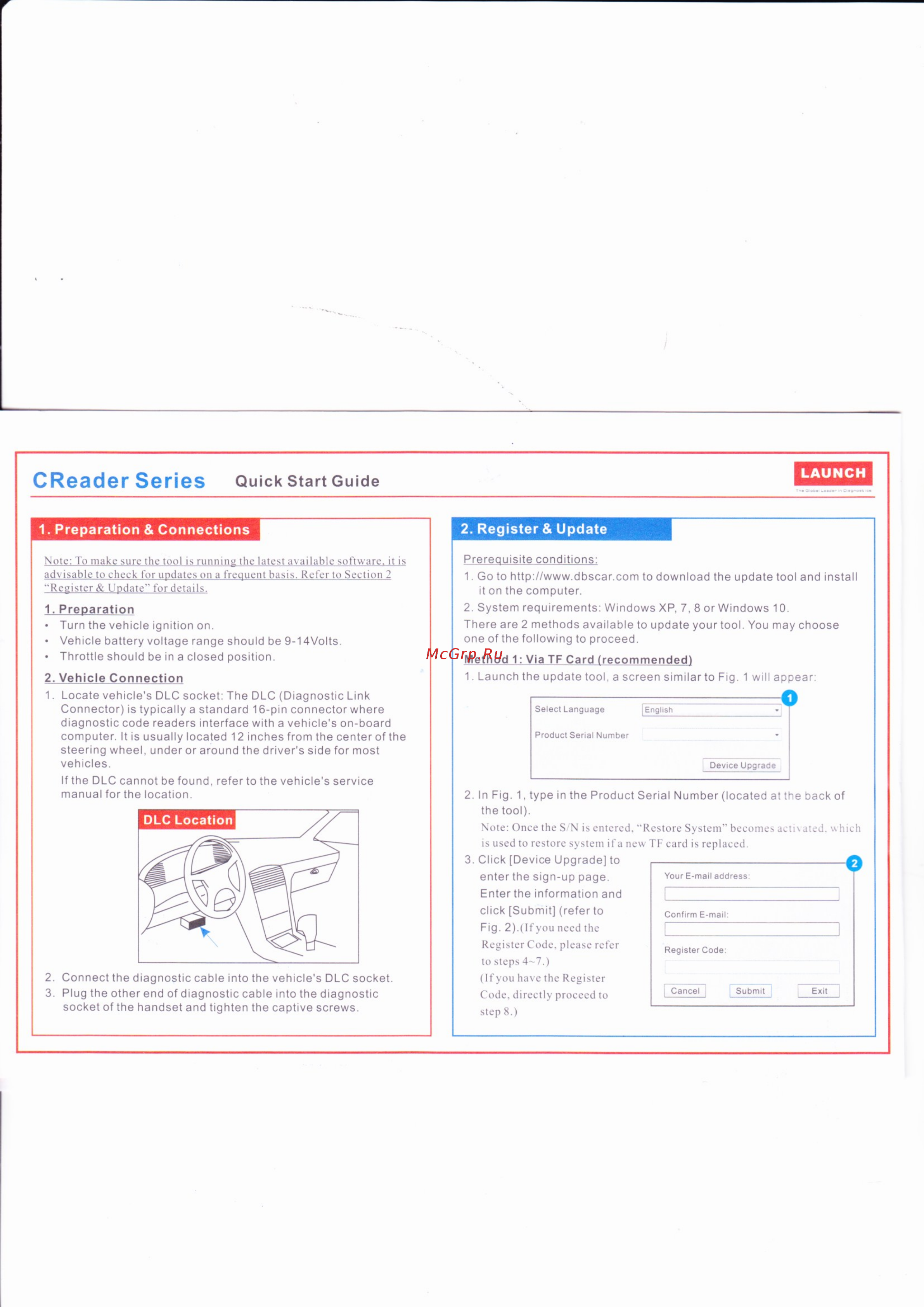

LAUNCH CReader Series Quick Start Guide 1 Preparation Connections 2 Register Update Note To make sure the tool is running the latest available software it is advisable to check for updates on a frequent basis Refer to Section 2 Register Update for details Prerequisite conditions 1 Preparation Turn the vehicle ignition on Vehicle battery voltage range should be 9 14Volts Throttle should be in a closed position 2 System requirements Windows XP 7 8 or Windows 10 2 Vehicle Connection 1 Launch the update tool a screen similarto Fig 1 will appear 1 Go to http www dbscar com to download the update tool and install it on the computer There are 2 methods available to update your tool You may choose one of the following to proceed Method 1 Via TF Card recommended 1 Locate vehicle s DLC socket The DLC Diagnostic Link Connector is typically a standard 16 pin connector where diagnostic code readers interface with a vehicle s on board computer It is usually located 12 inches from the center of the steering wheel under or around the driver s side for most vehicles If the DLC cannot be found refer to the vehicle s service manual for the location Select Language o j English Product Serial Number Device Upgrade 2 In Fig 1 type in the Product Serial Number located at the back of the tool Note Once the S N is entered Restore System becomes activated which is used to restore system if a new TF card is replaced 3 Click Device Upgrade to enter the sign up page Enter the information and click Submit refer to Fig 2 If you need the Register Code please refer to steps 4 7 2 Connect the diagnostic cable into the vehicle s DLC socket 3 Plug the other end of diagnostic cable into the diagnostic socket of the handset and tighten the captive screws If you have the Register Code directly proceed to step 8
