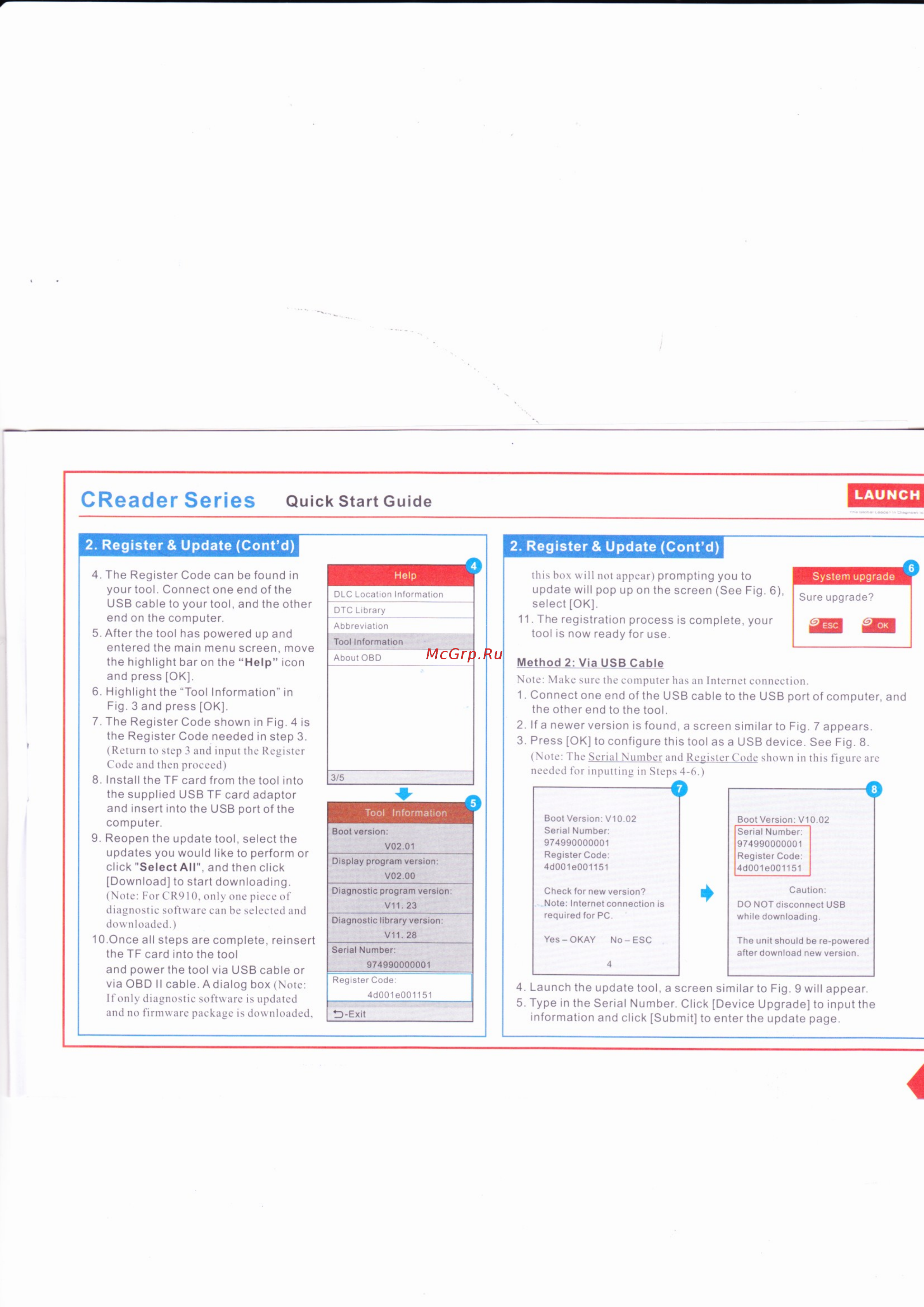

LAUNCH CReader Series Quick Start Guide 2 Register Update Cont d 4 The Register Code can be found in your tool Connect one end of the USB cable to your tool and the other end on the computer 5 After the tool has powered up and entered the main menu screen move the highlight baron the Help icon and press OK 6 Highlight the Tool Information in Fig 3 and press OK 7 The Register Code shown in Fig 4 is the Register Code needed in step 3 Return to step 3 and input the Register Code and then proceed 8 Install the TF card from the tool into the supplied USB TF card adaptor and insert into the USB port of the computer 9 Reopen the update tool select the updates you would like to perform or click Select AU and then click Download to start downloading Note ForCR910 only one piece of diagnostic software can be selected and downloaded 10 Once all steps are complete reinsert the TF card into the tool and power the tool via USB cable or via OBD II cable A dialog box Note If only diagnostic software is updated and no firmware package is downloaded 2 Register Update Cont d this box will not appear prompting you to update will pop up on the screen See Fig 6 select OK 11 The registration process is complete your tool is now ready for use System upgrade Sure upgrade Method 2 Via USB Cable Note Make sure the computer has an Internet connection 1 Connect one end of the USB cable to the USB port of computer and the other end to the tool 2 If a newer version is found a screen similar to Fig 7 appears 3 Press OK to configure this tool as a USB device See Fig 8 Note The Serial Number and Register Code shown in this figure are needed for inputting in Steps 4 6 o Boot Version V10 02 Serial Number 974990000001 Register Code 4d001e001151 Bool Version V10 02 Serial Number 974990000001 Register Code 4d001e001151 Check for new version Note Internet connection is required for PC DO NOT disconnect USB while downloading Yes OKAY No ESC Caution The unit should be re powered after download new version 4 4 Launch the update tool a screen similar to Fig 9 will appear 5 Type in the Serial Number Click Device Upgrade to input the information and click Submit to enter the update page
