Tp-Link T3700G-28TQ V2 [103/411] Port enable
![Tp-Link T3700G-28TQ V2 [103/411] Port enable](/views2/1471206/page103/bg67.png)
VPN Up-link Ports
Unit:
Select the unit ID of the desired member in the stack.
VPN Up-link ports:
Select the desired port as the VPN Up-link port.
Note:
If VPN mode is enabled, please create VLAN Mapping entries on the VLAN Mapping function
page.
7.7.2 Port Enable
On this page, you can enable the port for the VLAN Mapping function. Only the port is enabled,
can the configured VLAN Mapping function take effect.

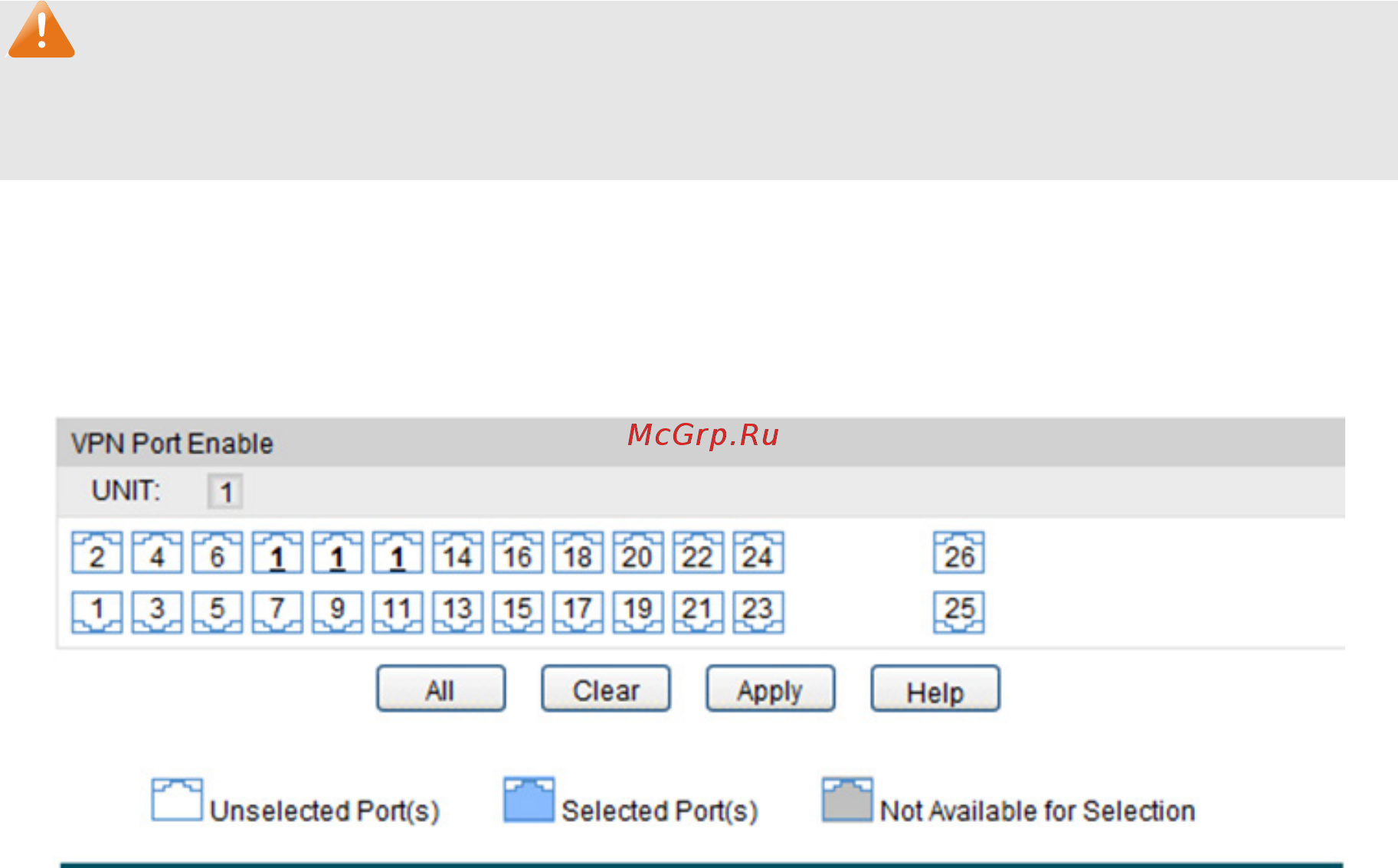

Figure 7-13 Enable Port for VLAN Mapping
VPN Port Enable
UNIT:
Select the unit ID of the desired member in the stack.
Select your desired port for VLAN Mapping function. All the ports are disabled for VLAN
Mapping function by default.
7.7.3 VLAN Mapping
VLAN Mapping function allows the VLAN TAG of the packets to be replaced with the new VLAN
TAG according to the VLAN Mapping entries. And these packets can be forwarded in the new
VLAN. If VLAN VPN function is enabled, a received packet already carrying a VLAN tag will be
tagged basing on the VLAN Mapping entries and becomes a double-tagged packet to be
forwarded in the new VLAN.
Choose the menu VLAN→VLAN VPN→VLAN Mapping to load the following page.
91
