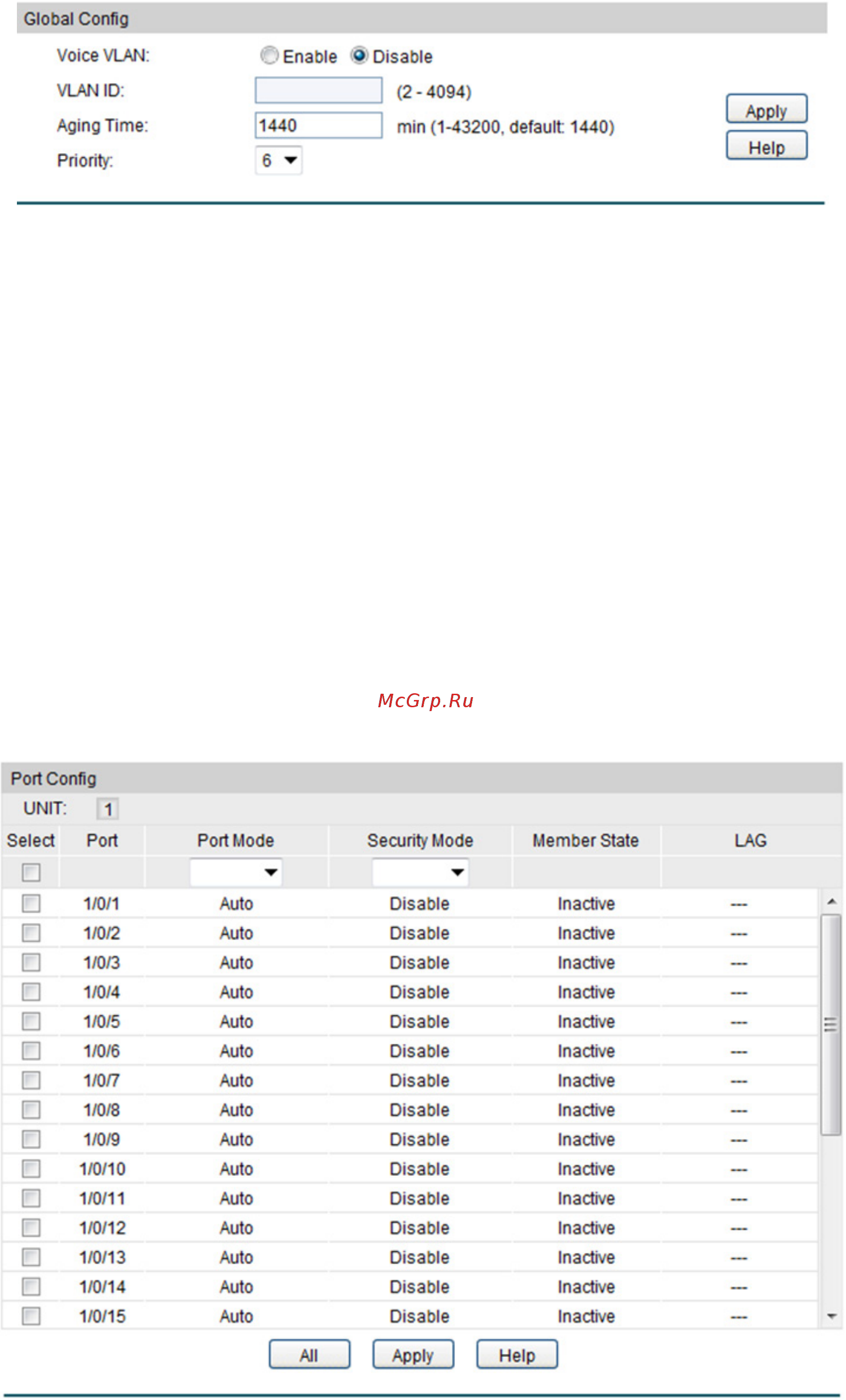

Figure 12-12 Global Configuration
The following entries are displayed on this screen:
Global Config
Voice VLAN:
Select Enable/Disable Voice VLAN function.
VLAN ID:
Enter the VLAN ID of the voice VLAN.
Aging Time:
Specifies the living time of the member port in auto mode after
the OUI address is aging out.
Priority:
Select the 802.1P priority of the port when sending voice data.
12.3.2 Port Config
Before the voice VLAN function is enabled, the parameters of the ports in the voice VLAN
should be configured on this page.
Choose the menu QoS→Voice VLAN→Port Config to load the following page.
294
