The LLDP module is mainly for LLDP function configuration of the switch, including three

submenus: Basic Config, Device Info and Device Statistics.

16.1 Basic Config

LLDP is configured on the Global Config and Port Config pages.

16.1.1 Global Config

On this page you can configure the LLDP parameters of the device globally.

Choose the menu LLDP→Basic Config→Global Config to load the following page.

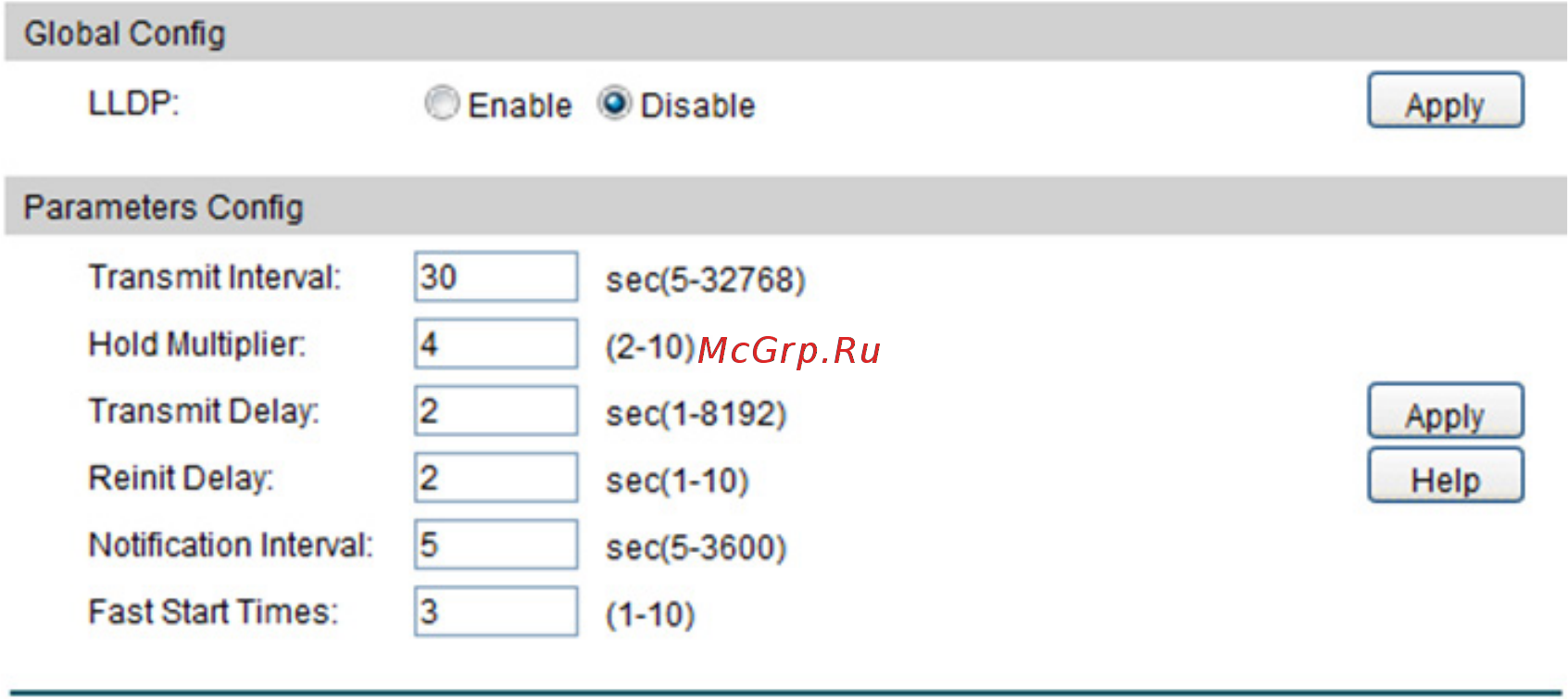

Figure 16-1 Global Configuration

The following entries are displayed on this screen:



Global Config

LLDP:

Choose to enable/disable LLDP.



Parameters Config

Transmit Interval:

This parameter indicates the interval at which LLDP frames are

transmitted on behalf of this LLDP agent.

Hold Multiplier:

This parameter is a multiplier on the Transmit Interval that

determines the actual TTL

(Time To Live) value used in an

LLDPDU. TTL = Hold Multiplier * Transmit Interval.

Transmit Delay:

This parameter indicates the delay between successive LLDP

frame transmissions.

Reinit Delay:

This parameter indicates the amount of delay from LLDP

becomes "disable" until re-initialization will be attempted.

Notification

Interval:

Configure the interval of Trap message which will be sent from

local device to network management system.
