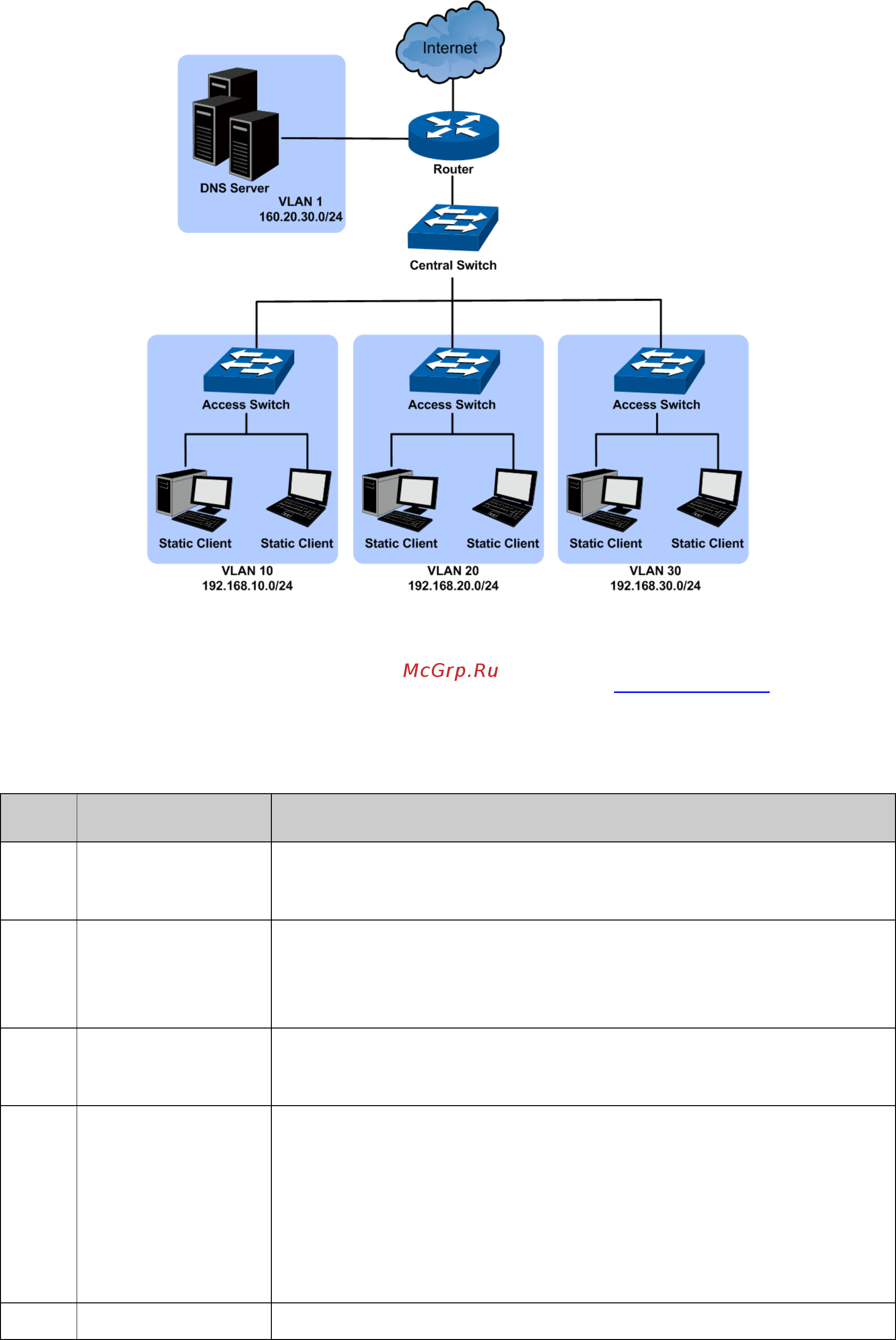

 Network Diagram

Use T3700G-28TQ as the central switch and enable its DHCP server function to allocate IP

addresses to clients in the network. Enable the DHCP relay function on each access switch in

VLAN 10, 20 and 30. For details about DHCP relay, please refer to 10.5 DHCP Relay

 Configuration Procedure

 Configure Central Switch

Step Operation Note

Create VLAN Required. On page VLAN→802.1Q VLAN→VLAN Config, create

VLAN10, VLAN20 and VLAN30, and configure their ports.

Create VLAN

interface

Required. On page Routing→Interface→Interface Config,

configure VLAN interface

192.168.10.1/24 for VLAN10,

192.168.20.1/24 for VLAN20, and 192.168.30.1 for VLAN30.

Enable DHCP

Server

Required. On page Routing→DHCP Server→DHCP Server,

enable DHCP Server function under the Global Config.

Configure the IP

address pool

Required. On page Routing→DHCP Server→Pool Setting,

configure IP address pool parameters for each VLAN interface.

Take VLAN10 as an example, configure its Network Address as

192.168.10.0, Subnet Mask as 255.255.255.0, Default gateway as

192.168.10.1 (the IP address of the VLAN interface), DNS Server

as 160.20.30.2, and customize the Pool Name and Lease Time.

Configure the

Required. On page Routing→DHCP Server→DHCP Server, under

167
