Transmit Delay:
The Transit Delay for the specified interface. This specifies
the estimated number of seconds it takes to transmit a link
state update packet over the selected interface. The valid
value ranges from 1 to 65535 seconds and the
default is 1
second.
Cost:
The link cost. OSPF uses this value in computing shortest
paths. The valid value ranges from 1 to 65535.
Network Type:
Sets the OSPF network type. The default network type for
Ethernet interfaces is broadcast.
Passive Mode: Ma
ke an interface passive to prevent OSPF from forming an
adjacency on an interface. OSPF advertises networks
attached to passive interfaces as stub networks. Interfaces
are not passive by default.
MTU Ignore: Disables OSPF MTU mismatch detection on receive
d
database description packets. Default value is Disable (MTU
mismatch detection is enabled).
Database Filter: To prevent outgoing link-
state advertisements (LSAs)
flooding out of an OSPF interface. The default is Disable, all
outgoing LSAs are flooded out of the interface.
Authentication
Type:
The authentication type of interface. The choices are:
default
: The authentication type is same with the
associated area's authentication type.
null: No authentication.
simple: Use simple password.
md5: Use md5 message-digest algorithm.
Authentication Key
ID:
When you select md5, the key ID should be entered. The
valid value ranges from 1 to 255.
Authentication Key:
Specify the authentication key. The length of simple key is
no more than 8 characters, and md5 key
is no more than 16
characters.
10.9.5 Area
Choose the menu Routing→OSPF→Area to load the following page.

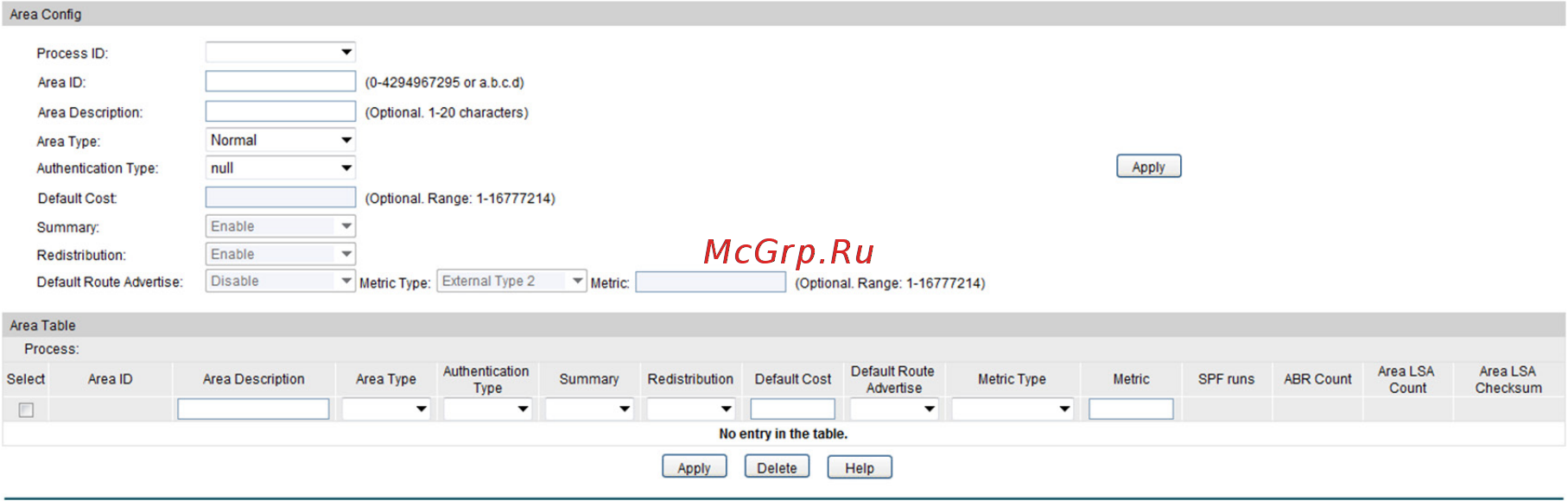

Figure10-50 OSPF Area
210
