L2 Managed Switch

3. Turnover the device and attach the supplied rubber feet to the recessed areas on

the bottom at each corner of the device.

Feet

Bottom of the

Device

Notch

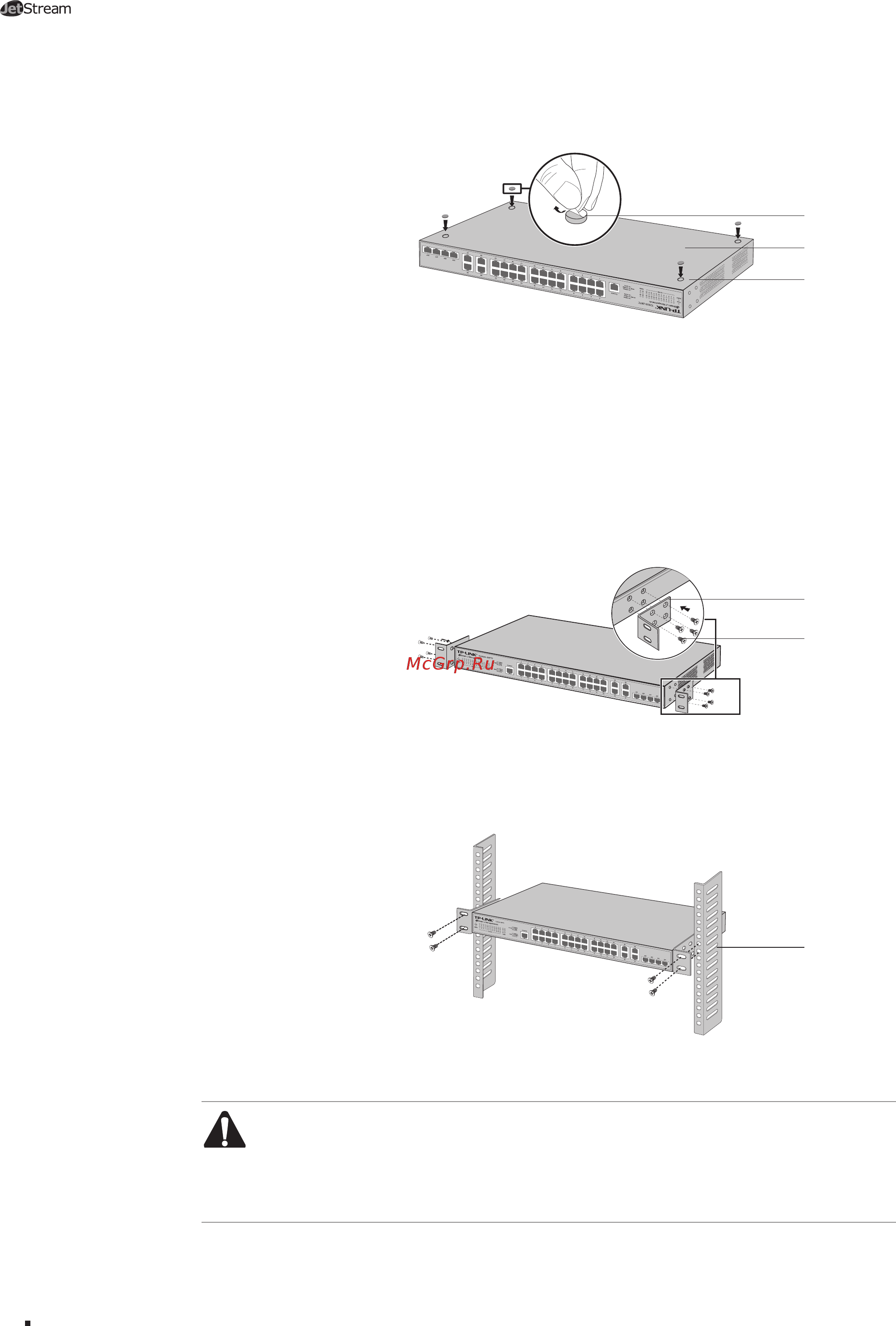

Figure 2-1 Desktop Installation

■

Rack Installation

To install the device in an EIA standard-sized, 19-inch rack, follow the instructions

described below:

1. Check the grounding and stability of the rack.

2. Secure the supplied rack-mounting brackets to each side of the device with supplied

screws, as illustrated in the following figure.

Rack-

mounting

Bracket

Screw

Figure 2-2 Bracket Installation

3. After the brackets are attached to the device, use suitable screws (not provided) to

secure the brackets to the rack, as illustrated in the following figure.

Rack

Figure 2-3 Rack Installation

Caution:

■

Please set 5–10cm gaps around the device for air circulation.

■

Please avoid any heavy thing placed on the device.

■

Please mount devices in sequence from the bottom to top of the rack and ensure a

certain clearance between devices for the purpose of heat dissipation.

Installation
