01
L2 Managed Switch
Chapter 1 Introduction
1.1 Product Overview
TP-LINK JetStream L2 Managed Switch, designed for workgroups and departments,
provides wire-speed performance and abundant layer 2 management features. It
provides a variety of service features and multiple powerful functions with high security.
The EIA-standardized framework and smart configuration capacity can provide flexible
solutions for a variable scale of networks. ACL, 802.1x and Dynamic ARP Inspection
provide robust security strategies. QoS and IGMP snooping/filtering optimize voice and
video application. Link aggregation (LACP) increases aggregated bandwidth, optimizing
the transport of business critical data. SNMP, RMON, WEB/CLI/Telnet Log-in bring
abundant management policies. TP-LINK JetStream L2 Managed Switch integrates
multiple functions with excellent performance, and is friendly to manage, which can
fully meet the need of the users demanding higher networking performance.
1.2 Appearance
■
Front Panel

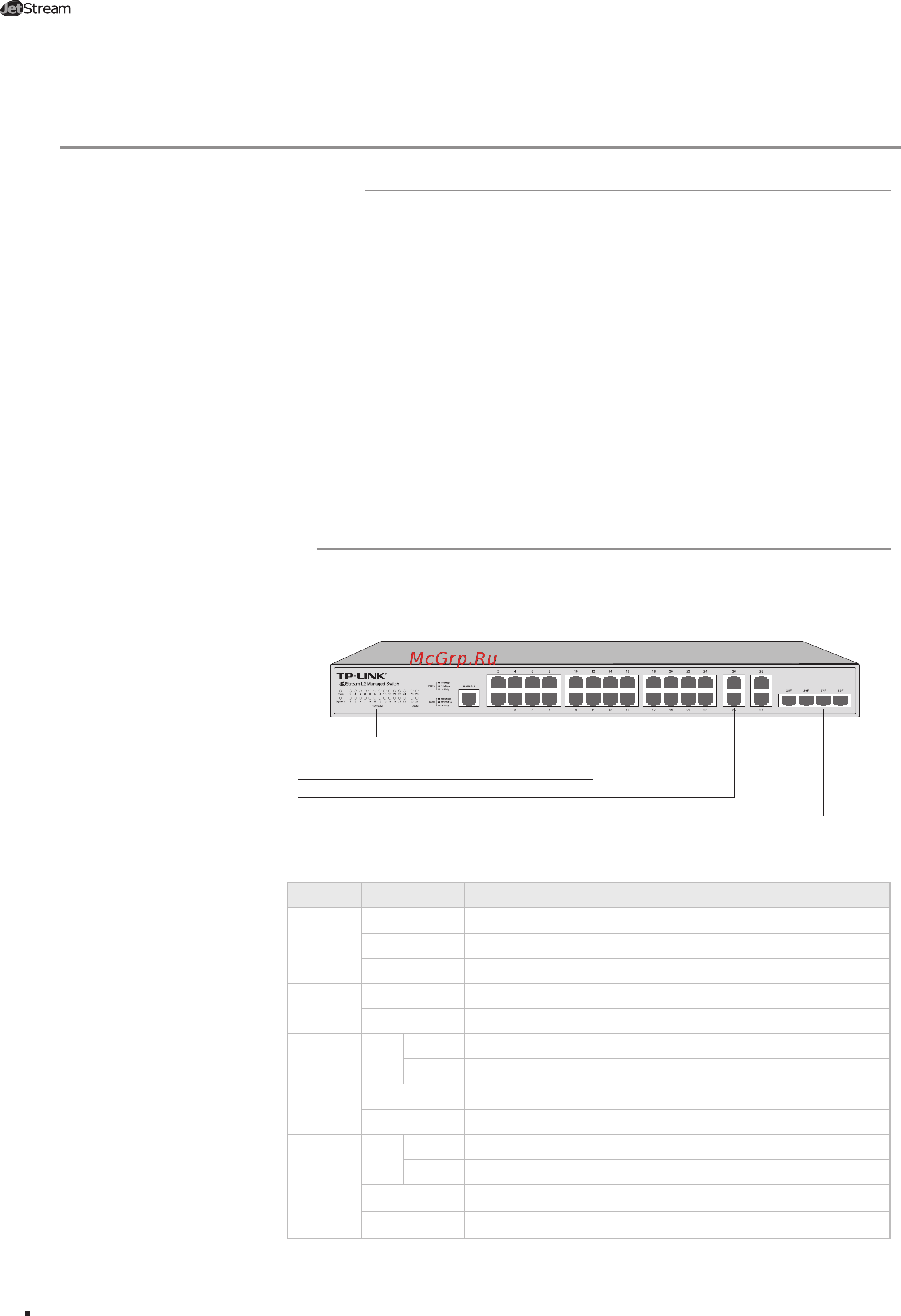

The front panel of T2500-28TC is shown as the following figure.
T2500-28TC
LEDs
10/100Mbps RJ45 Port
SFP Port
10/100/1000Mbps RJ45 Port
Console Port
Figure 1-1 Front Panel of T2500-28TC
LEDs
LED Status Indication
Power
On The switch is powered on
Off The switch is powered off or power supply is abnormal
Flashing Power supply is abnormal
System
Flashing The switch works properly
On/Off The switch works improperly
10/100M
On
Green A 100Mbps device is connected to the corresponding port
Yellow A 10Mbps device is connected to the corresponding port
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
1000M
On
Green A 1000Mbps device is connected to the corresponding port
Yellow A 10/100Mbps device is connected to the corresponding port
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
Introduction
