- 7 -

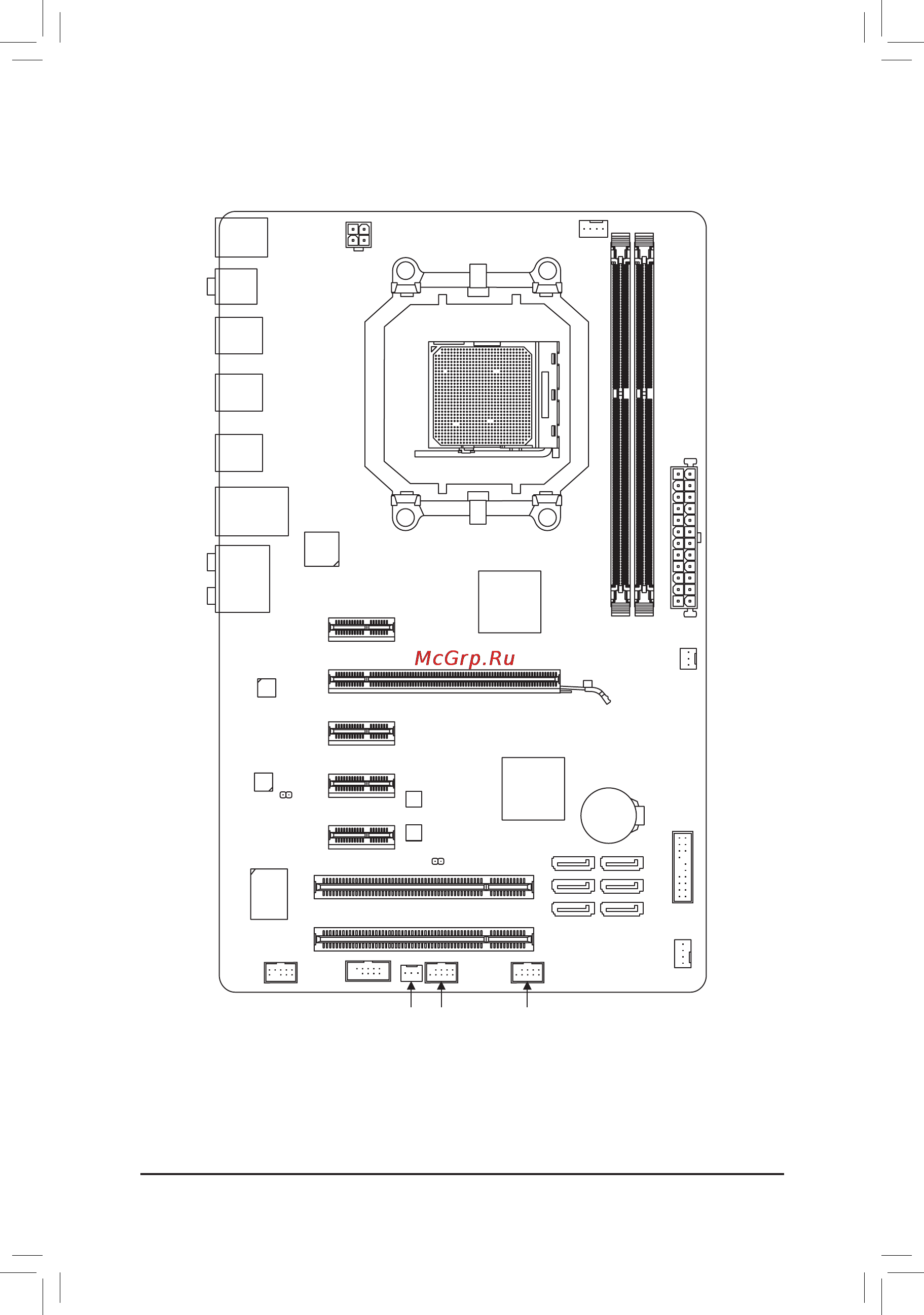

GA-780T-USB3 Motherboard Layout

KB_MS

CPU_FAN

Socket AM3+

ATX

GA-780T-USB3

F_AUDIO

AUDIO

PCIEX1_4

DDR3_1

DDR3_2

BAT

F_PANEL

F_USB1F_USB2SYS_FAN2

COM

ATX_12V

AMD 760G

AMD SB710

SATA2_0 SATA2_3

SATA2_1 SATA2_4

SATA2_2 SATA2_5

PCI1

PCI2

R_USB3

CODEC

PWR_FAN

SYS_FAN1

PCIEX1_2

PCIEX1_1

RCA_SPDIF

R_USB2

R_USB1

USB_LAN

PCIEX16

PCIEX1_3

B_BIOS

M_BIOS

CLR_CMOS

Realtek

RTL8111E

Etron

EJ168

iTE

IT8720

SPDIF_O
