4.Quick Start
5
Front/Rear Panel and User Interface
Front Panel
①
②
③
④
⑥
⑱
⑬
⑮
⑭
⑯
⑲
⑩
⑪
⑦
⑧
⑨
⑫
⑤
⑰

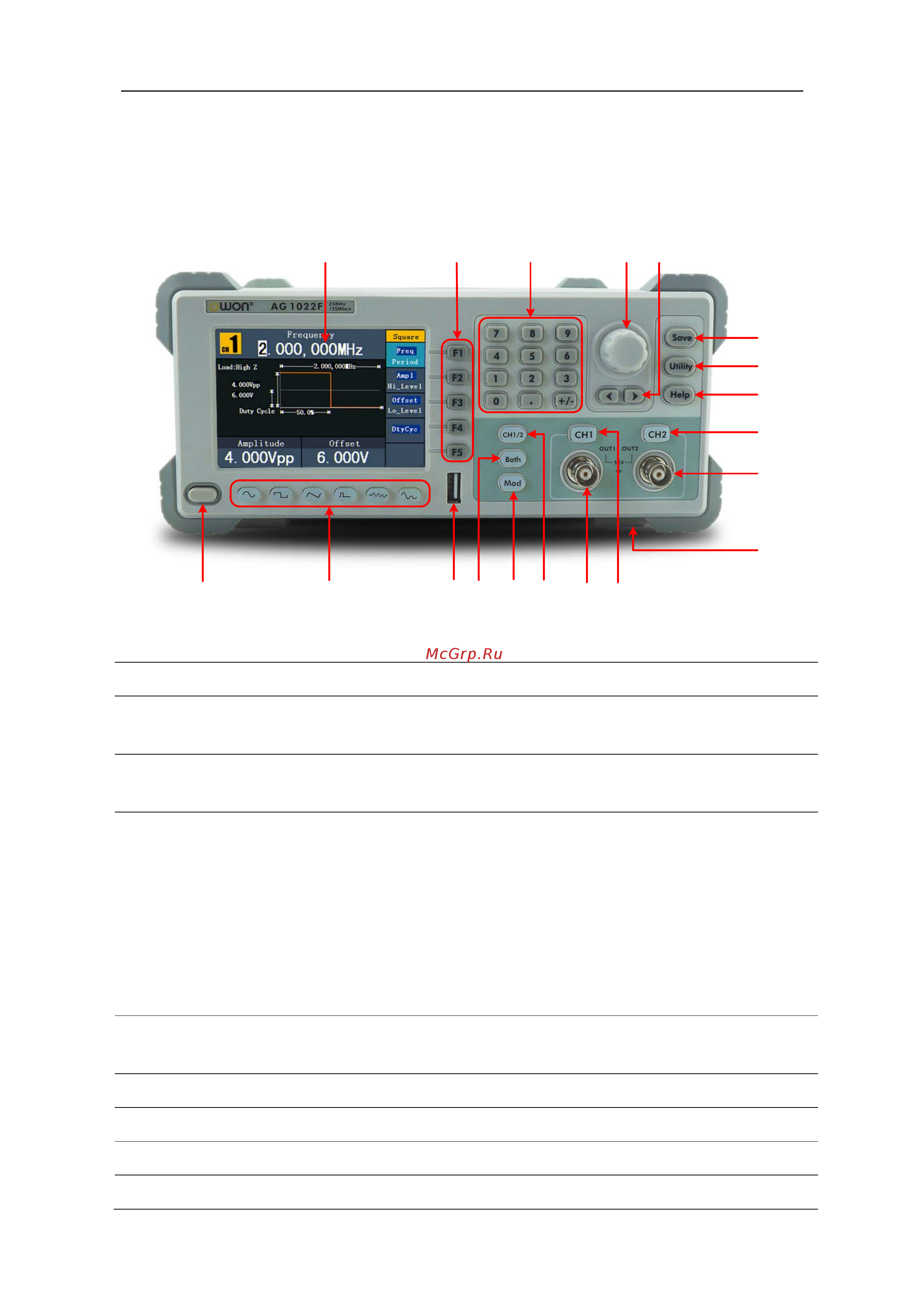

Figure 4-1 Front panel overview (AG1022F shown)
①
LCD
Display the user interface
②
Menu selection
buttons
Include 5 buttons: F1 - F5, activate the corresponding menu
③
Number keys
Input parameters, include: number, point and plus/minus
sign
④
Knob
Change the current highlighted number, also can be used to
select file location or switch the character of the soft
keyboard when entering file name.
In Sweep and N-
Cycle Burst, if you choose Source as
"Manual", every time you press this knob, the generator will
be triggered once.
In signal output interface, press this knob to enter Channel
Copy menu.
⑤
Direction key
Move the cursor of the focused parameter or select the file
locations
⑥
Save button
Store/recall the user-defined arbitrary waveform data
⑦
Utility button
Set the auxiliary system function.
⑧
Help button
View the build-in help information
⑨
CH2 Output Control
Turn on/off the output of CH2. The backlight will be lighted
