4.Quick Start
6
when CH2 is tuned on.
⑩
CH2 Output
Output signal of CH2
⑪
Foot stool
Make the instrument to be tilted for ease of operation
⑫
CH1 Output Control
Turn on/off the output of CH1. The backlight will be lighted
when CH1 is tuned on.
⑬
CH1 Output
Output signal of CH1
⑭
C H 1/2 button
Switch channel displayed on the screen between CH1 and
CH2.
⑮
Modulation (Mod)
Generate the Modulated waveforms, Sweep and Burst; these
functions are only used for CH1.
⑯
Both button
Display the editable parameters of both channels. When the
function is enabled, the backlight of the button turns on.
⑰
USB port
Connect with an external USB device, such as connect a USB
device to the instrument.
⑱
Waveform selection
buttons
Include: Sine , Square , Ramp , Pulse ,
Noise and Arbitrary waveform. When a
waveform is selected, the backlight of the button turns on.
⑲
Power button
Turn on/off the generator

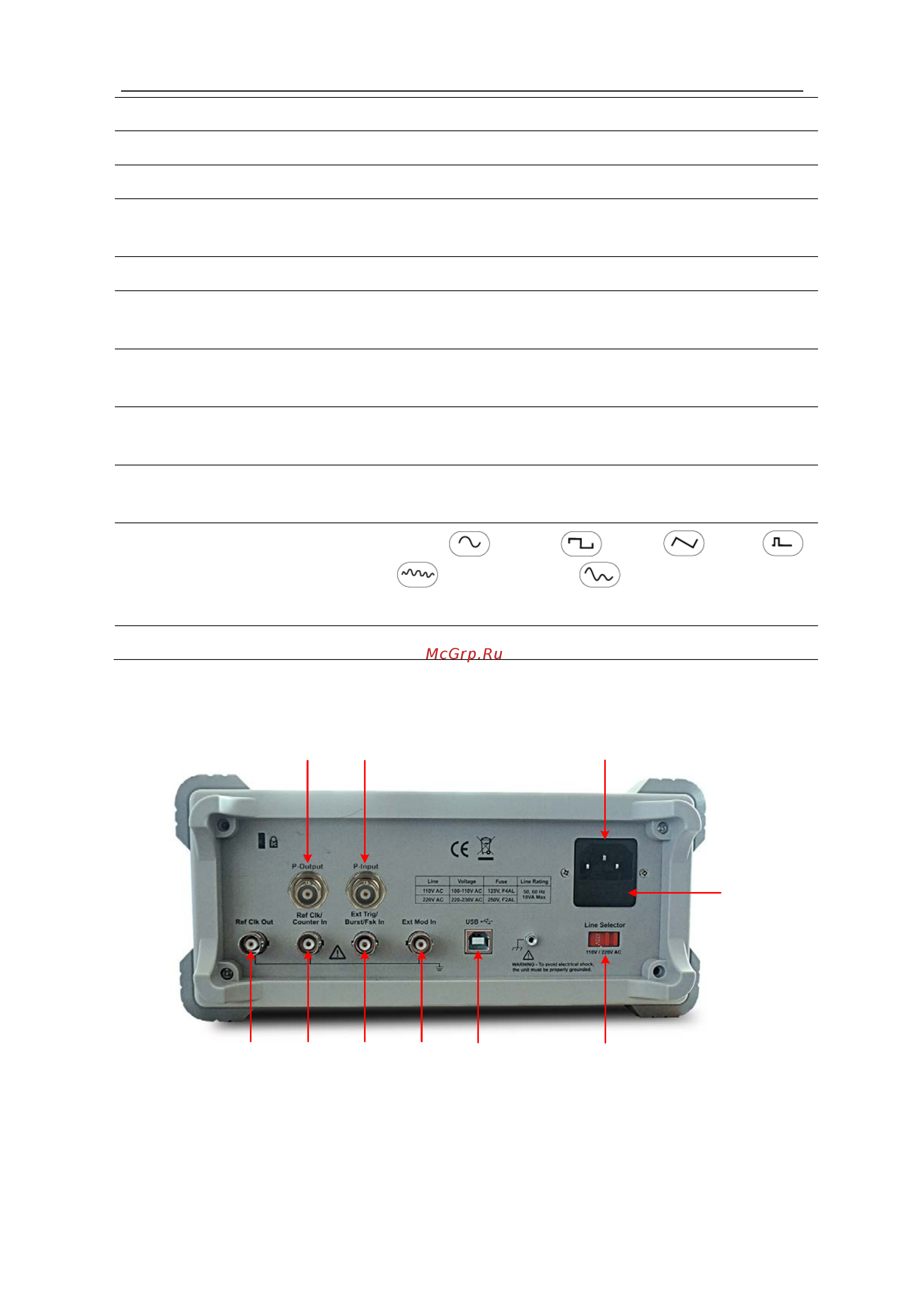

Rear Panel
①
⑤
④
③
②
⑥⑦⑧
⑨ ⑩
Figure 4-2 Rear panel overview
