20
JetStream
Smart Switch
Login to the Switch

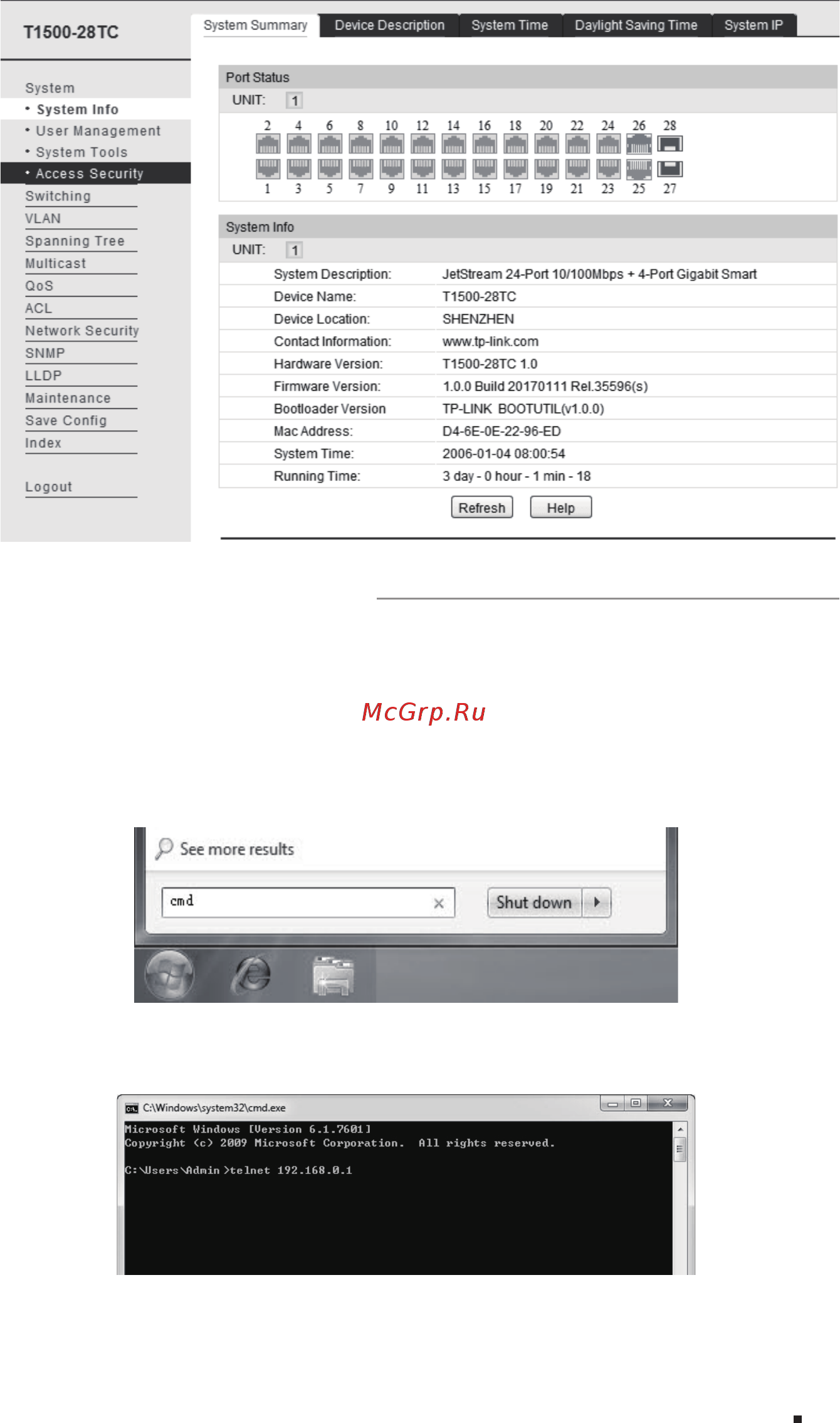

Figure 5-3 Main Page of the Switch
5.2 Configure the Switch via CLI
You can log on to the switch and access the CLI by Logging on to the switch remotely
by a Telnet connection through an Ethernet port.
To log on to the switch by a Telnet
connection, please take the following steps:
1. Make sure the switch and the PC are in the same LAN.Click Start and type in "cmd" in
the Search programs and files window and press the Enter button.
Figure 5-4 Run window
2. Type telnet 192.168.0.1 in the command prompt, and press the Enter button.
Figure 5-5 Connecting to the Switch
