5-Input Connections
8
5. Input Connections
5.1 Input Connections
5.1.1 Input connections
See the following Figure 2:

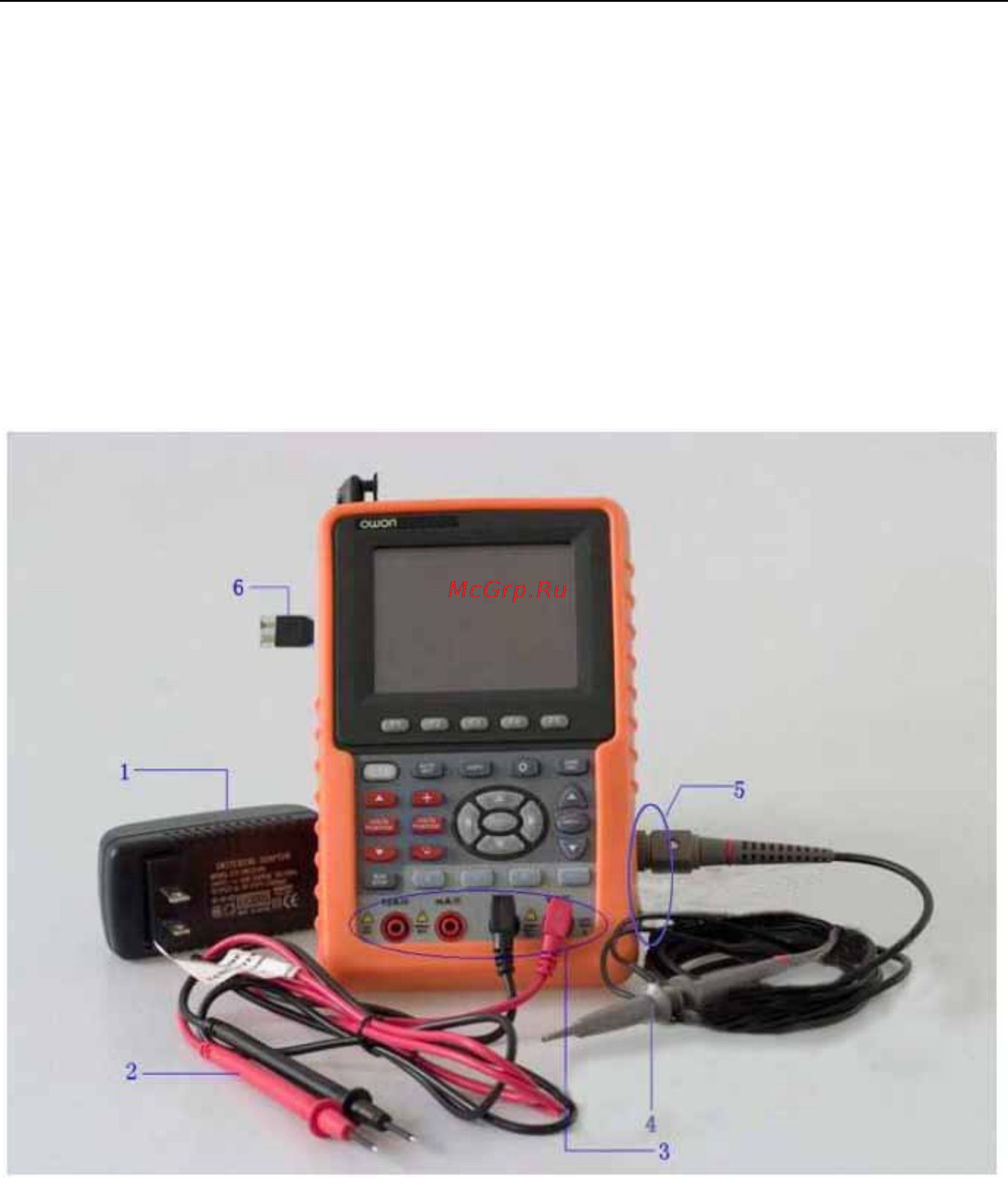

Figure 2：Input connections
Description:
1. The power adapter is supplied for AC power supply and battery recharging.
2. Multimeter test lead.
3. Multimeter input jacks, including four circular banana jacks. The first jack measuring the
current 2 A-10A, the second jack on the current Measurement, the third COM ground input,
and the fourth measuring voltage, resistance, Capacitance input.
4. Oscilloscope probe.
5. Oscilloscope channel input.
6.
The output terminal of 1 kHz/5 V square-wave test signal.
