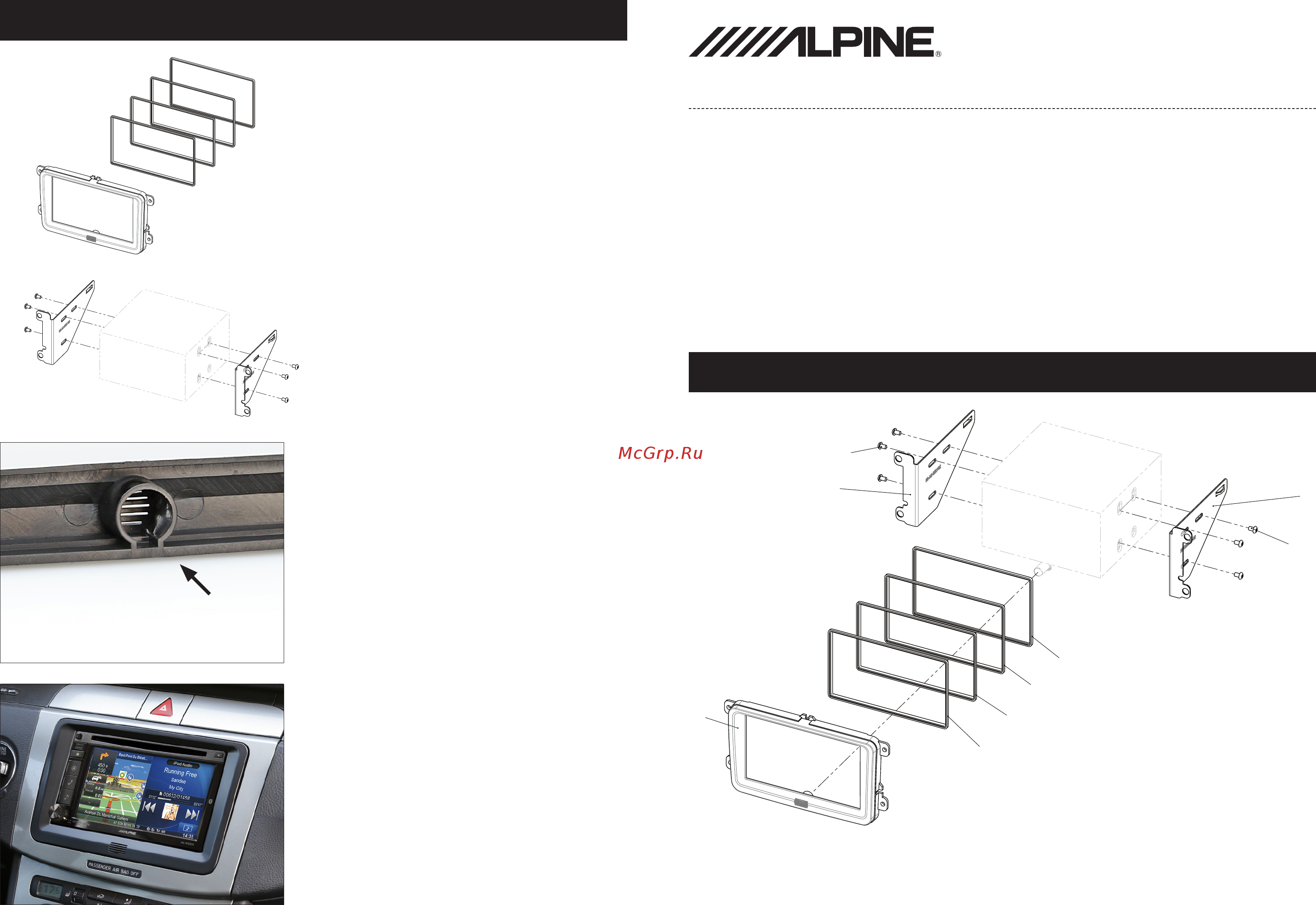

Double DIN installation
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
1. Depending on the double
DIN head unit you want to
install stick the appropriate
trim frame(s)* to facia plate
and x them with glue
* trim frame set has to be ordered
separately: part-no.: 271000-13
2. Mount metal brackets
to double DIN head unit
Connect all required circuit
points and push double DIN
head unit into dashboard
3. (Optional: install microphone
in pocket of the backside of
facia plate)
4. Push facia plate over double
DIN head unit and x it with
original Torx (TX20) screws
Reinstall everything in reverse
order to nish installation.
Compatible these double DIN devices
Alpine navigation
Double DIN Kit contents:
• (1) facia plate
• (2) mounting bracket right
• (3) mounting bracket left
• (4) trim frame 5 mm*
• (5) trim frame 2,5 mm*
• (6) at headed screw
* trim frame set has to be ordered
separately: part-no.: 271000-13
Installation Manual Double -DIN Kit
black: 381320-30-1
piano-black: 381320-30-2
rubber-touch: 391320-30-1
VOLKSWAGEN
VW Amarok (2H) 03/2010->
VW Beetle (16) 04/2011->
VW Caddy (2K)01/2004->
VW CC (3CC) 01/2012->
VW Eos (1F) 05/2006 >
VW Golf V (1K) 10/2003-06/2008
VW Golf V Variant (1KM) 06/2007-10/2009
VW Golf Plus (1KP) 03/2005 ->
VW Golf VI (1K) 11/2008-10/2012
VW Golf VI Variant (1KM) 11/2009 ->
VW Golf VI Cabrio (1K) 06/2011 ->
SEAT
Seat Leon (1P/1PN) 03/2009 – 10/2012
Seat Alhambra (7N) 10/2010->
SKODA*
Skoda Fabia (5J) 2007->
Skoda Roomster (5J) 09/ 2006-> (nur mit OEM-Radio)
Skoda Octavia II (1Z) Facelift 01/2009
Skoda Superb (3T) 07/2008->
Skoda Rapid (NH) 10/2012 ->
*(If a Columbus OEM-Navigation is installed,
3TO858061QB by Skoda is required)
VW Jetta V (1KM) 08/2005-10/2010
VW Jetta VI (16) 01/2011->
VW Passat B6/B7(3C/3AA) 06/2005->
VW Passat CC (3CC) 06/2008-2012
VW Polo V (6R) 03/2009->
VW Sharan II (7N) 09/2010->
VW Scirocco (13) 08/ 2008->
VW Tiguan (5N) 04/2007->
VW Touran (1T / GP2) 02/2003->
VW T5 Multivan (Facelift) 10/2009->
VW T5 Transporter (Facelift) 10/2009->
1
4
5
4
4
2
6
6
3
